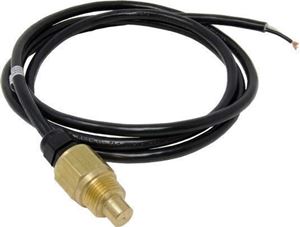

Picture of GP High Limit Thermal Switch 3/8" NPT, 230º F with 68" Wire Lead

GP High Limit Thermal Switch 3/8" NPT, 230º F with 68" Wire Lead

SKU: TS38230

Brand: General Pump

$35.87

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


GP TS38230 High Limit TS Series Thermal Switch 3/8" NPT 230º F with 68" Wire Lead


Features
• Simple installation
• 68” 18 AWG Cable
• Normally Closed
• Can be mounted in any position
• Factory calibrated
• Made in the USA
• Precision snap action internal switches

TS Series Snap Action Data Sheet


Specifications
• Maximum Pressure: 5,000 PSI
• Voltage: 5 AMPS at 120 VAC
• Cord Length: 68”
• Temperature: 230º F
• Inlet: 3/8” NPT
• Switch Dimensions: 2.5" x 1"
• Materials: Brass, Steel, Nylon, Epoxy
• Weight: 0.5 Lb

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
