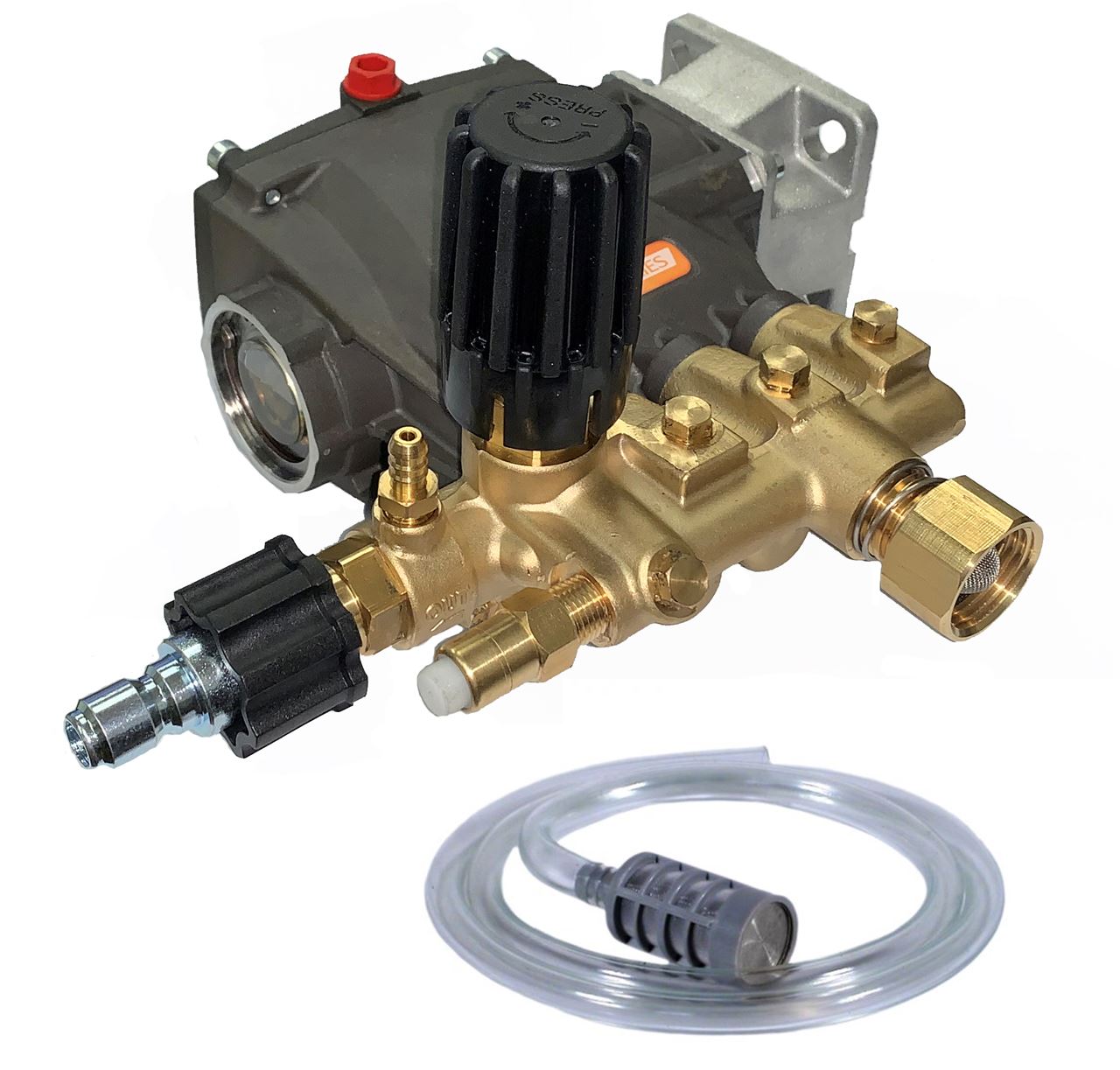

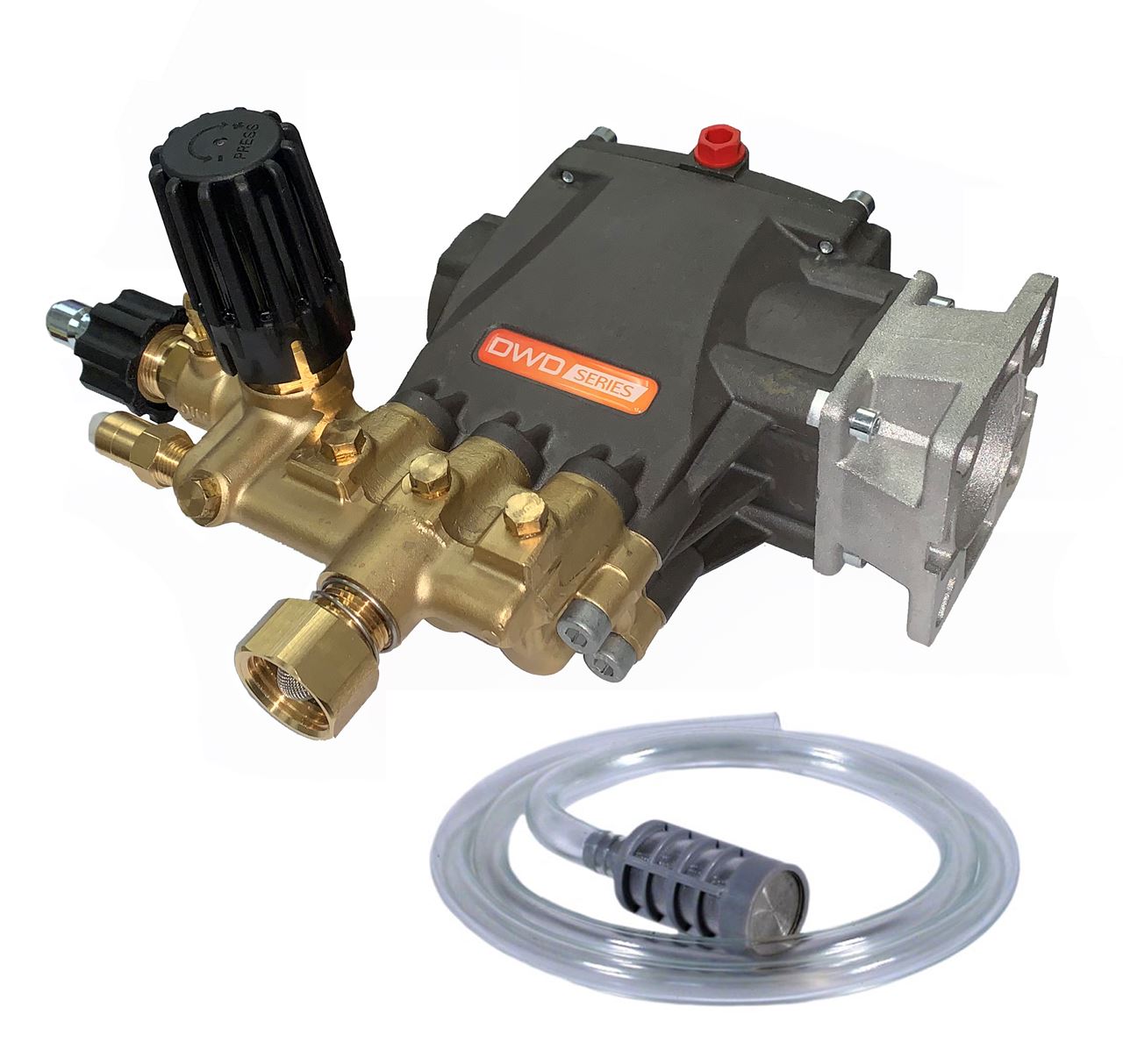

Comet DWD-K 2530 G 3,000 PSI 2.3 GPM Commercial Duty Triplex Plunger Pump Fully Plumbed with Adjustable Unloader and Chemical Injector
Features:• Direct Drive with Gas Flange 4-7 HP SAE (2-9/16 center to center)• Forged brass manifold and ceramic plungers to prevent pitting and wear• Built-in unloader and chemical injector for quick plug and play on systems• Lubricated double seal packings to increase pump longevity (high & low)• Anodized crankcase to protect from the harshest elements• Ceramic Plungers• Stainless steel check valves to keep pump at optimal performance.• Featuring a 3/4” hollow shaft with flange for coupling to gas engines.
ADDITIONAL FEATURES OF PLUMBED MADE READY PUMP:• 3 Foot soap hose with filter • 3/8” QC plug • Thermal relief valve • Garden hose adapter with spring
Comet DWD G-K Data Sheet
Specifications: • Max. Volume: 2.3 GPM• Max. Discharge Pressure: 3,000 PSI • Max. Pump Speed: 3,400 RPM • Shaft Diameter: 3/4” Hollow• Maximum Horsepower Requirements: 6.3 GHP• Inlet Port: 3/4" GH (garden hose)• Outlet Port: 22M-14 Male Twist Connect with 3/8" QC Plug• Note: Optional D10088 3/8" QD Coupler shown below• Weight: 11.55 lb.
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
General Pump Replacement 22mm-14 Twist Coupler O-Ring (EPDM)
Specifications • Fits 22mm-14 twist coupler sockets from AR, Comet, General, MTM Hydro, PA and others• Material: EPDM• Max. Temperature: 250° F• Color: Black
Comet 4,000 PSI Quick Connect 2.5" Pressure Gauge Kit. It can be easily put in line with the quick connect ends and used to monitor/set/test your pressure washer
Specifications:• Accurately view pressure for all units up to 4,000 PSI• Casing: 2-1/2" Diameter• Window: Acrylic• Case Material: Stainless steel• Fill Material: Glycerin (liquid)• 3/8 Quick connects for easy mounting• Max. Pressure: 4,000 PSI• Weight: 0.80 lbs
Kit Components:• 4,000 PSI 2.5” stainless steel pressure gauge• 4,000 PSI Brass and stainless steel 3/8” quick disconnect gauge fitting• Note: Assembly with Teflon tape is required
Specifications: • Works on most 3/4" horizontal & 7/8" vertical engines with solid shafts and a 3/16" keyway• 3/16" W x 1-1/2" L• Key may have to be cut to length
General Pump #3.0 Quick Connect (Q) Spray Nozzle 5-Pack
Features• 5,000 PSI operating pressure• Made in the USA• Ceramic insert is resistant to wear• Through-hardened stainless steel orifices offer superior wear resistance compared to standard case hardened nozzles• Stainless steel housing resists cracking and wear• Resistant to most chemical• Large color coded tip protector on Q-type nozzles permits rapid identification of fan angle• Laser marked for clarity and durability
Specifications• Nozzle Size: 3.0• Contents: One each of a 0º, 15º, 25º, 40º and 65º #40 soap nozzle• Operating Pressure: 5,000 PSI• Connection: 1/4” QC Plug• Weight: 0.50 oz
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
General Pump D10088 3/8” Brass Quick Disconnect Coupler x M22-14MM F Twist Coupler 4,000 PSI
Features: • Adapts from quick connect to 22mm twist connect• Brass• EPDM O-Ring
Specifications: • Body Material: Brass• 3/8" QD Coupler• Female M22, Yoke/Stem: 14MM• Max Temp: 175°• Max Operating Pressure: 4,000 PSI• Replaces 6341• Weight: 0.40 lb
