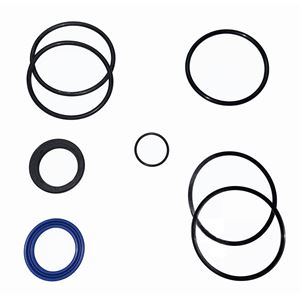

Picture of Delavan PML Cylinder Repair Kit, 2.5" Bore, 1-1/8" Rod

Delavan PML Cylinder Repair Kit, 2.5" Bore, 1-1/8" Rod

SKU: PML25-112

Brand: Delavan Fluid Power

$12.28

QTY:
ADD TO CART
ADD TO WISHLIST
Customer Product Rating
Product Description

Delavan PML Cylinder Repair Kit, 2.5" Bore, 1-1/8" Rod

Delavan Fluid Power PML cylinders have 2 sets of seal kits available.

You will need to get the serial number to identify which seal kit to use. Use the serial number which is located near base of cylinder imprinted on the tube.

If the serial number starts with a XH - seal kits will have no suffix (Ex: PML40-125)

If the serial number is a Date Stamp - seal kits will have a suffix letter S (Ex: PML40-125-S)

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
