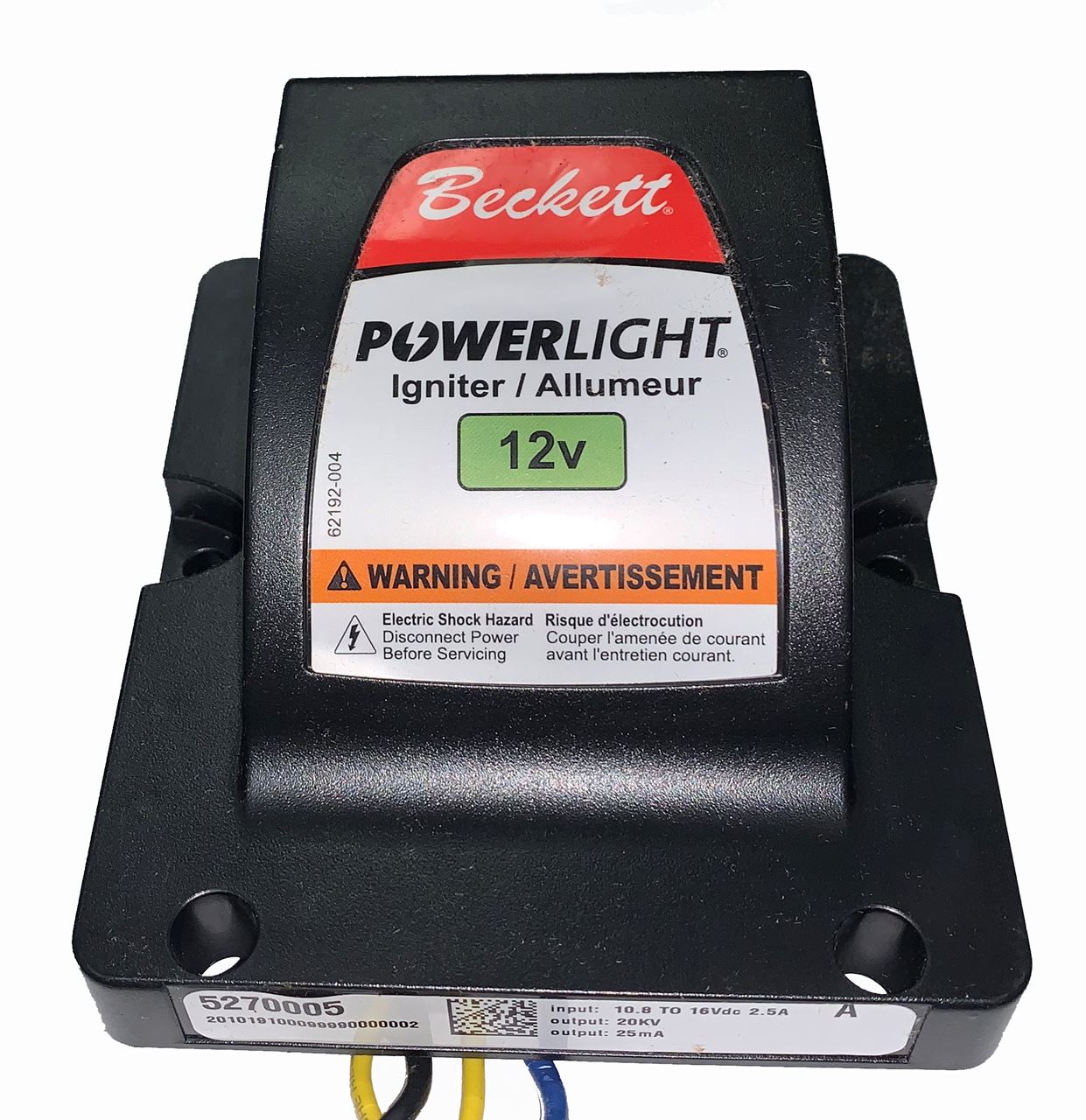

Beckett 5270005U Powerlight 12 VDC Burner Igniter Only. Beckett’s new PowerLight igniters offer improved performance and longer life. This igniter is easy to install and is designed as a universal replacement in Beckett and other manufacturer’s burners

Application Information:
• External heat sink eliminated for improved performance and reduced frequency of replacement due to overheating and arcing
• Easy change to interrupted ignition to increase igniter life and save energy
• Lightweight, single piece design is compatible with Beckett and other burners to reduce required inventory
• Fully potted with improved epoxy to withstand thermal shock and protect electronic components; waterproof

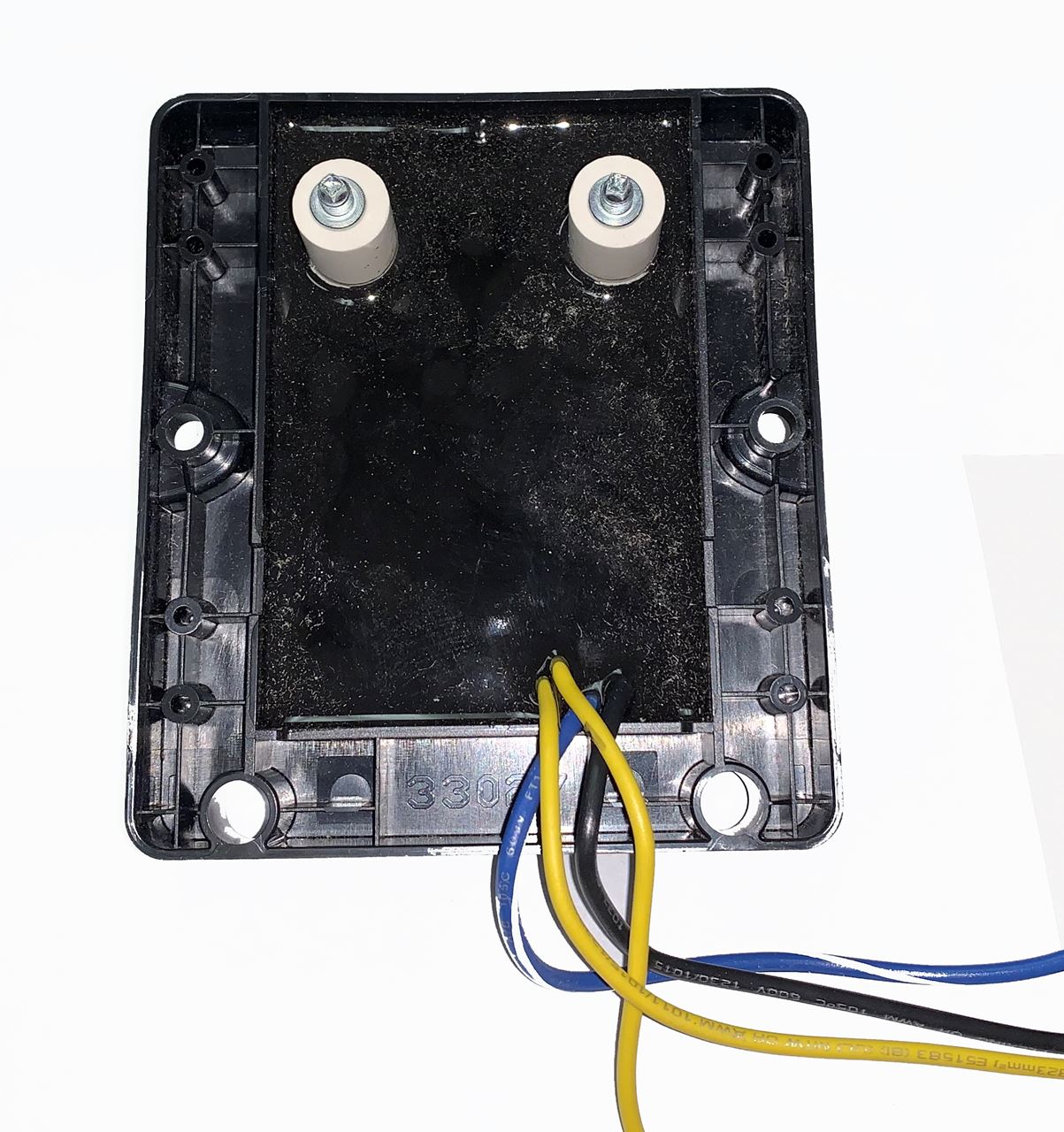

• Simplified wiring requirements and fewer wires for ease of installation

PRODUCT SHEET

Specifications:
• Input Voltage: 10.8 - 16 Vdc
• Output Voltage: 20kV peak
• Output Current: 25 mA
• RMS Input Current: 2.5 A Maximum
• Ambient Operating Temperature: -40°F (-40°C) to 150°F (66°C)
• Storage Temperature: -40°F (-40°C) to 150°F (66°C)
• Moisture: 5 to 95% Relative Humidity
• Replaces Beckett #’s 5218309U, 7435U & 5049
• Weight: 1.55 lbs
