Fairview GAS-FLO® GR-630B Single Stage Hi-Pressure RV Camper LP / Propane Gas Regulator 1/4 FPT 500,000 BTU/HR. This Fairview's GAS-FLO® High Pressure LP Regulator has outlet setting 30 PSIG

Applications:
• Ideally suited for applications where pounds instead of inches of w.c. are required
• Factory pre-set 30 PSIG
• Used on Gas Grills, Smokers and Fish Cookers
• UL Listed

TECHNICAL DATA SHEET

Specifications:
• Inlet: 1/4 FPT
• Outlet: 1/4 FPT
• Outlet Pressure (Set Point): 30 PSIG
• Inlet Pressure: 100 PSIG
• Capacity At 10% Droop from set point BTU/Hr: 500,000
• TO BE INSTALLED BY LICENSED GAS FITTERS ONLY
• Weight: 0.45 lbs

Fairview Screw for Installing Brackets Onto GAS-FLO® Propane Regulators

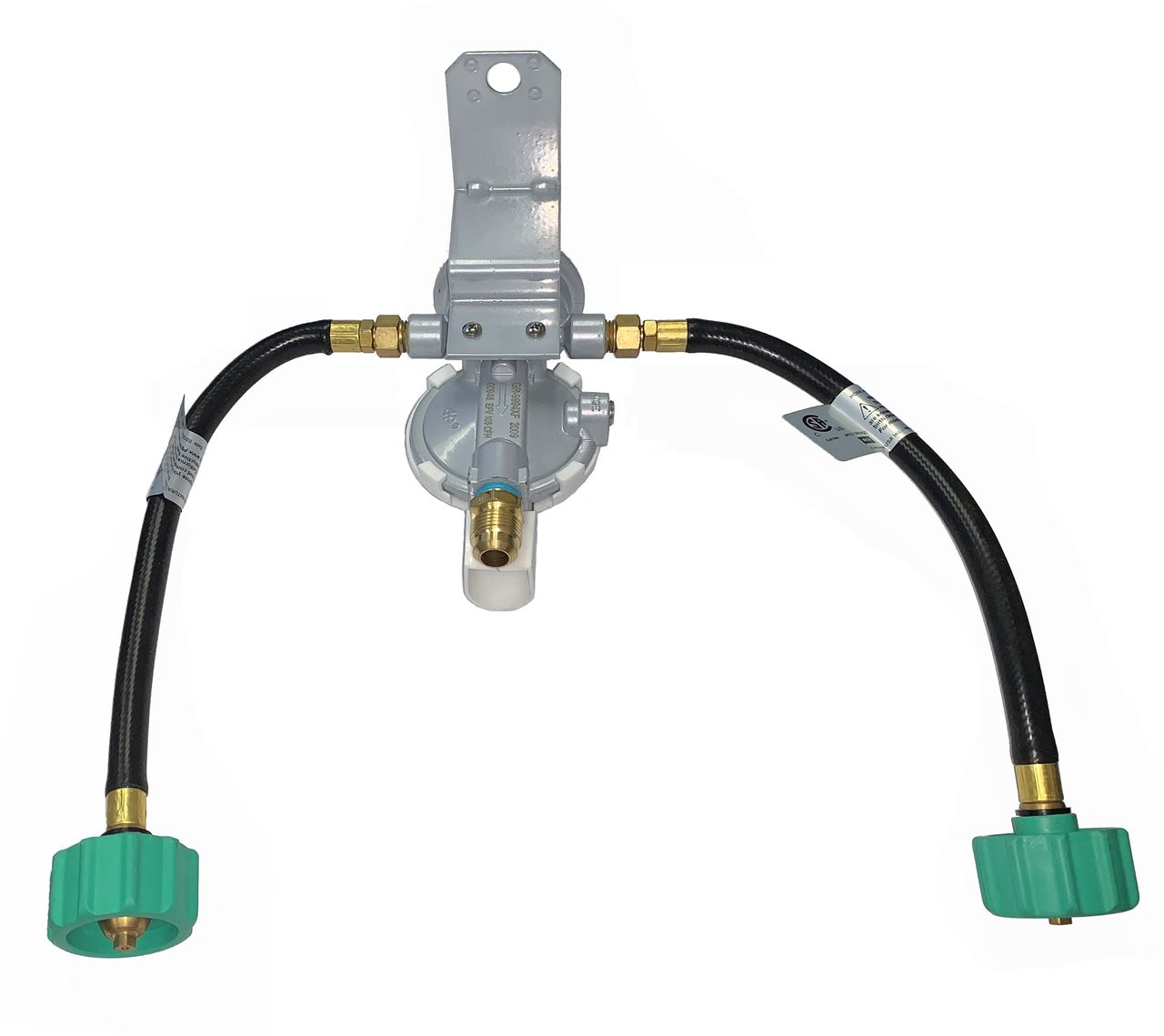

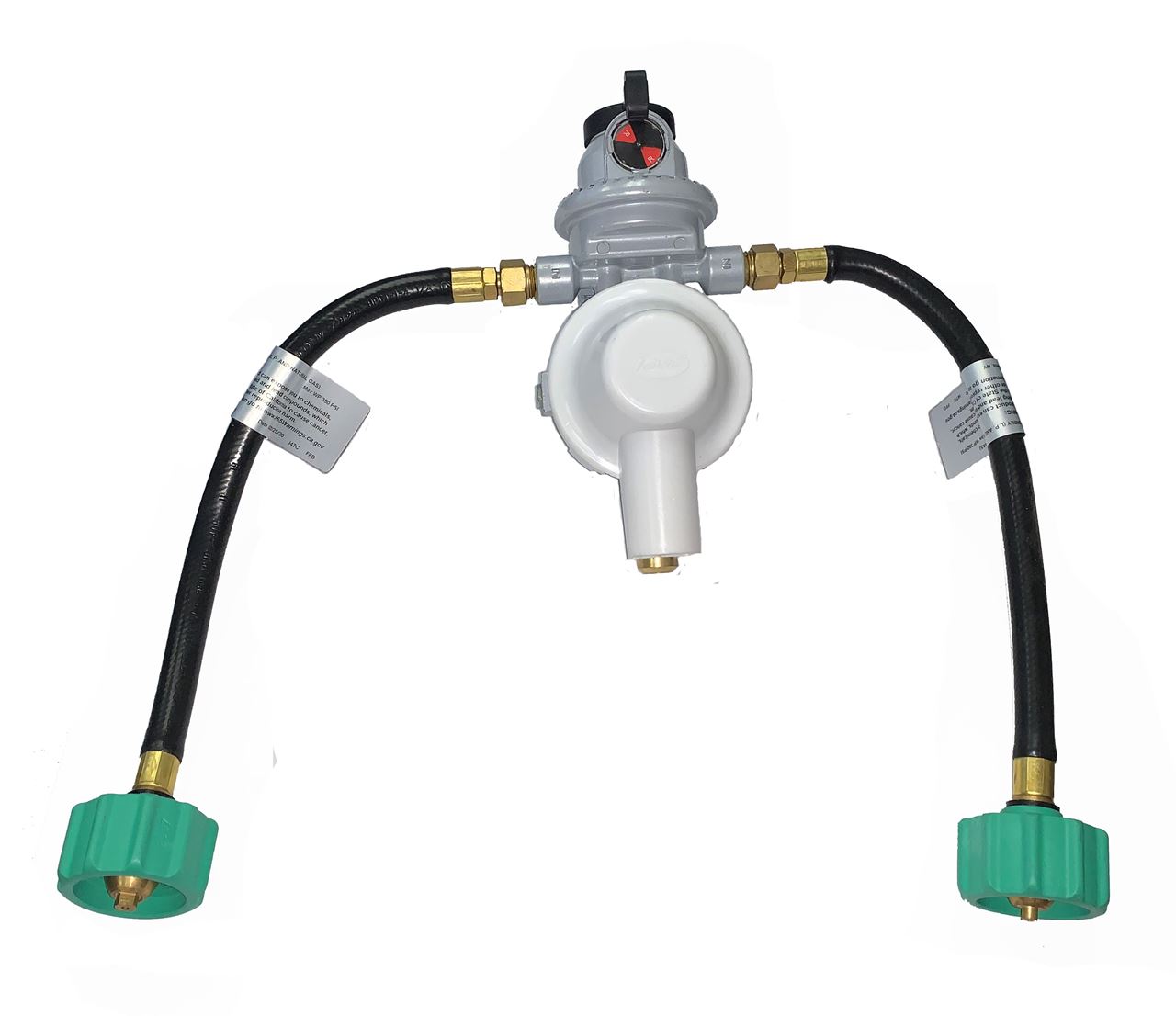

Fairview GAS-FLO® RV-9994KIT-CU12 Custom 262,500 BTU 2 Stage Auto-Changeover LPG Regulator Kit With (2) 12" Pigtails and 3/8 FPT Outlet. This is an assembled 2 bottle regulator kit ready to mount

Features:
• The Fairview X-SERIES Compact Automatic Changeover Regulator redirects LP gas vapor flow from an empty designated service cylinder to a reserve cylinder, without interruption of service
• It features a green indicator dome which changes to red when the service cylinder needs to be refilled

Kit Includes:

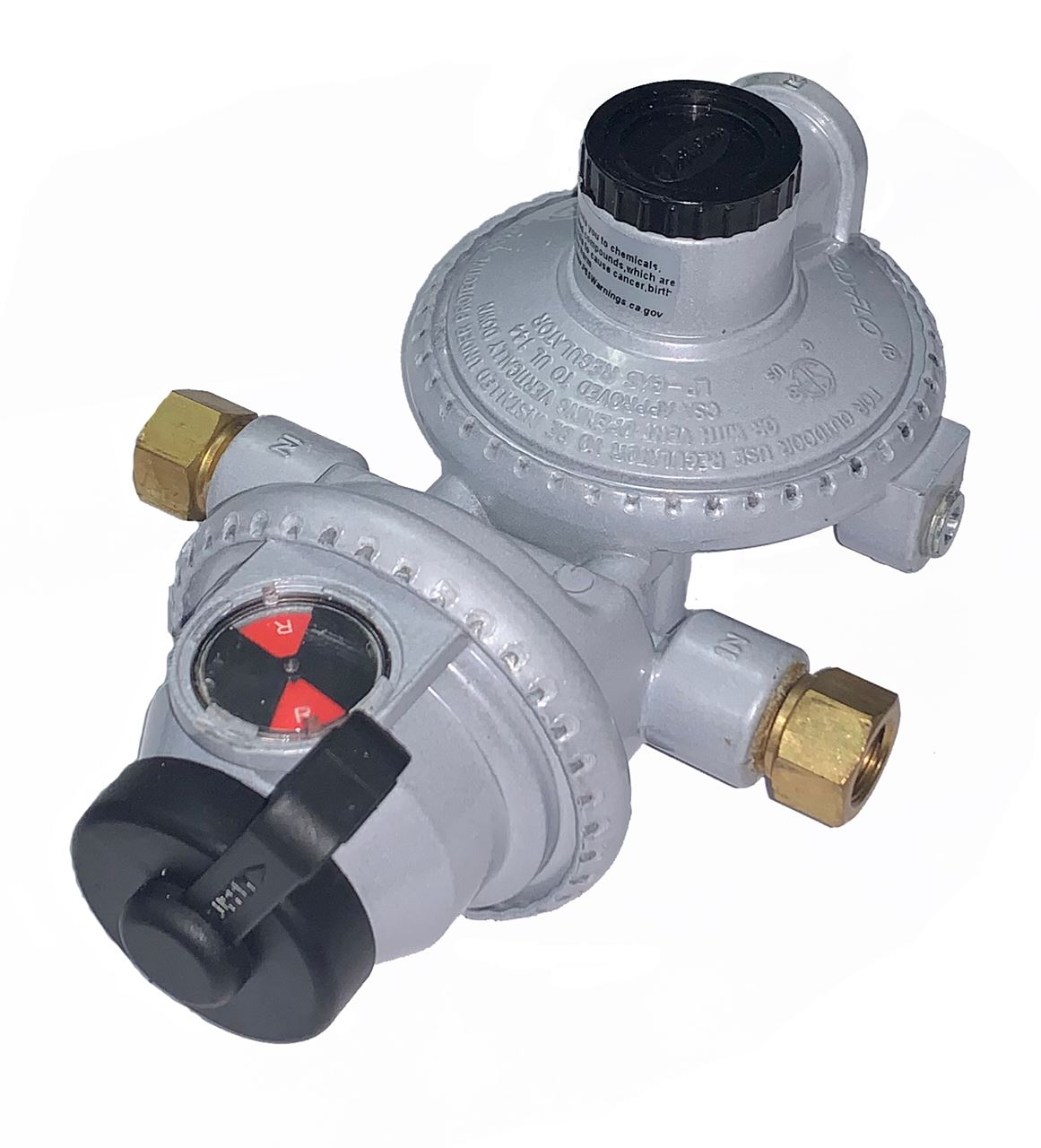

• (1) GAS-FLO® GR-9994 2 Stage Automatic Changeover Regulator

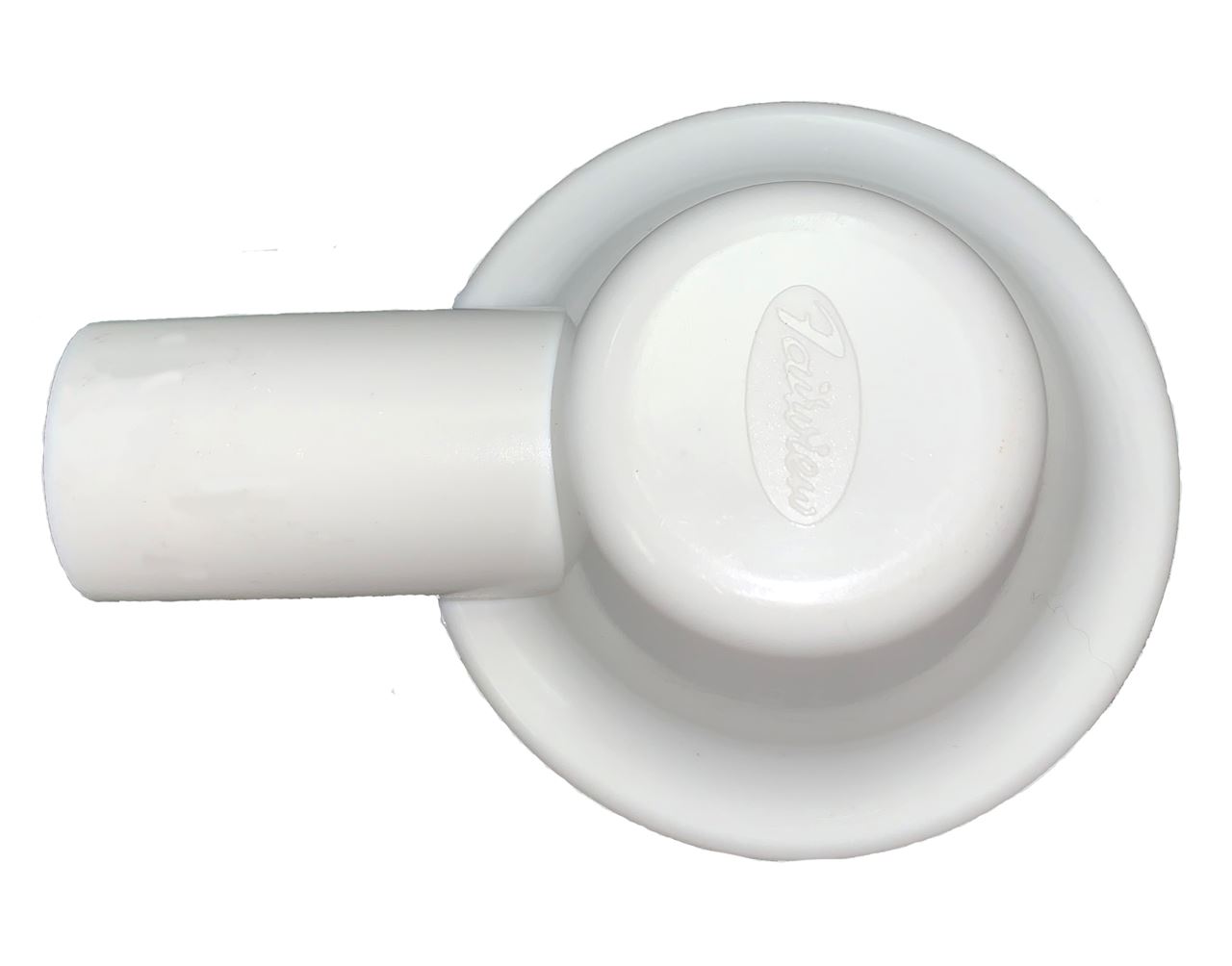

• (1) GAS-FLO® GR-5994 Protective Cover for GR-9994

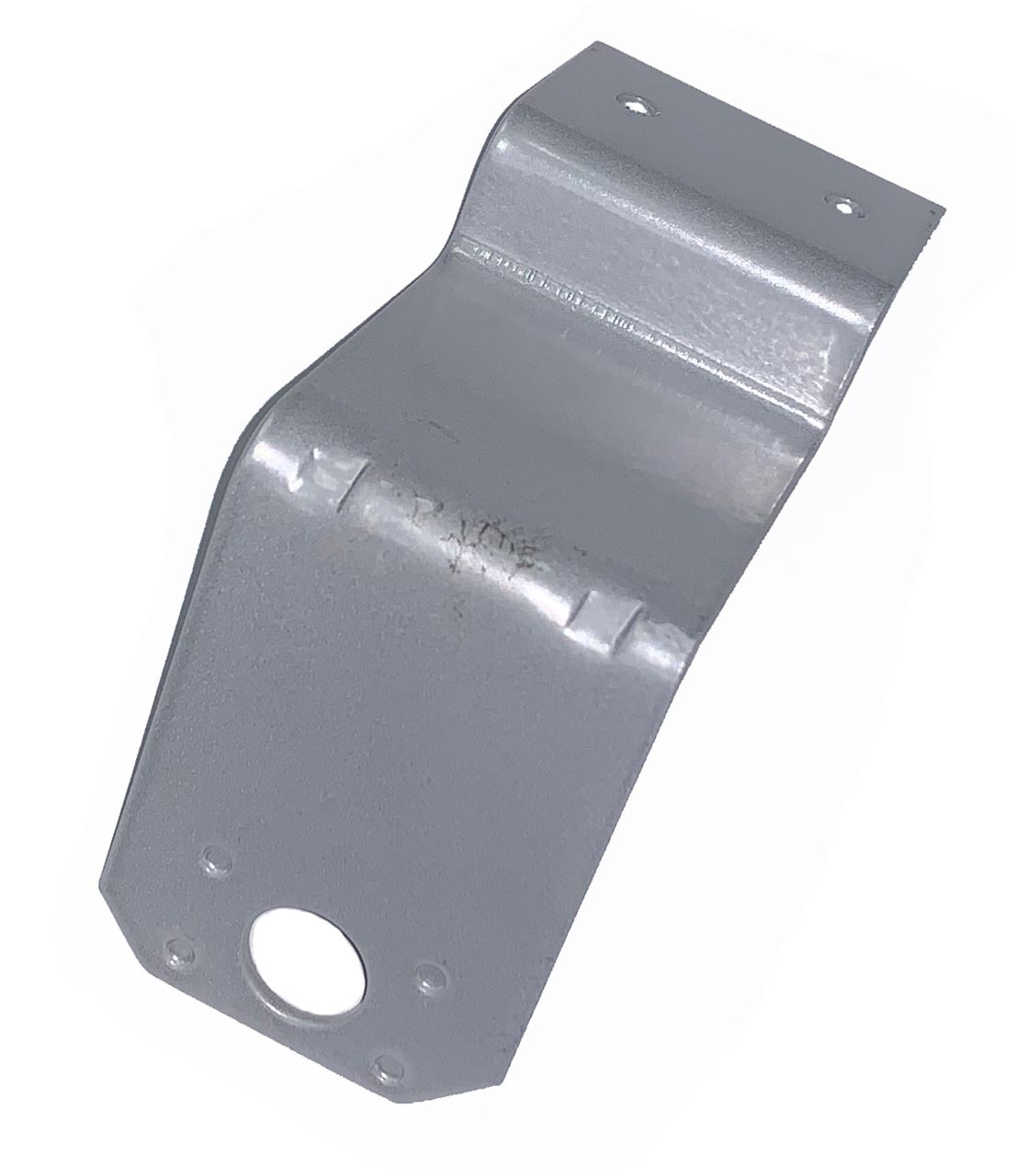

• (1) GAS-FLO® GR-RVB RV Style U Mounting Bracket
• (2) GAS-FLO® GR-SCREW Screw for Installing Brackets Onto Gas-Flo Propane Regulators
• (2) GAS-FLO® I4TC12MI4QC 1/4 ID 12" Type 1 Propane Hose Assy Thermoplastic 1/4 MI x QCC

TECHNICAL DATA SHEET

INSTALLATION DATA SHEET

Specifications:
• Inlets (2): High Capacity Green QCC1 ACME
• Outlet: 3/8 FPT
• Capacity BTU/Hr Propane (Service Cylinder): 262,500
• Capacity BTU/Hr Propane (Reserve Cylinder): 210,000
• TO BE INSTALLED BY LICENSED GAS FITTERS ONLY
• Weight: 2.35 lbs

Fairview GAS-FLO™ CP-2620 1/4” OD x 20” Long Nose POL (7/8 Hex nut) x 1/4 Swivel Male Inverted Flare Copper Propane Gas Pigtail. Fairview's Long POL To 1/4 Inverted Flare Copper pigtails are ideal for use with Propane Gas

Applications:
• Propane gas copper pigtails and hogtails provide a flexible connection between the container valve and the regulator
• Solder connections Copper tube for PIGTAILS is 1/4" O.D. by .049 WALL
• Usage depends on application and requirements
• With soldered ends and a wide selection of connections and lengths

TECHNICAL DATA SHEET

INSTALLATION DATA SHEET

Specifications:
• Tube OD: 1/4”
• Approx. Length: 20”
• Tube Material: Copper
• End: Long Nose P.O.L (7/8 Hex nut)
• End: 1/4 Swivel Male Inverted Flare
• TO BE INSTALLED BY LICENSED GAS FITTERS ONLY
• Weight: 0.40 lbs
