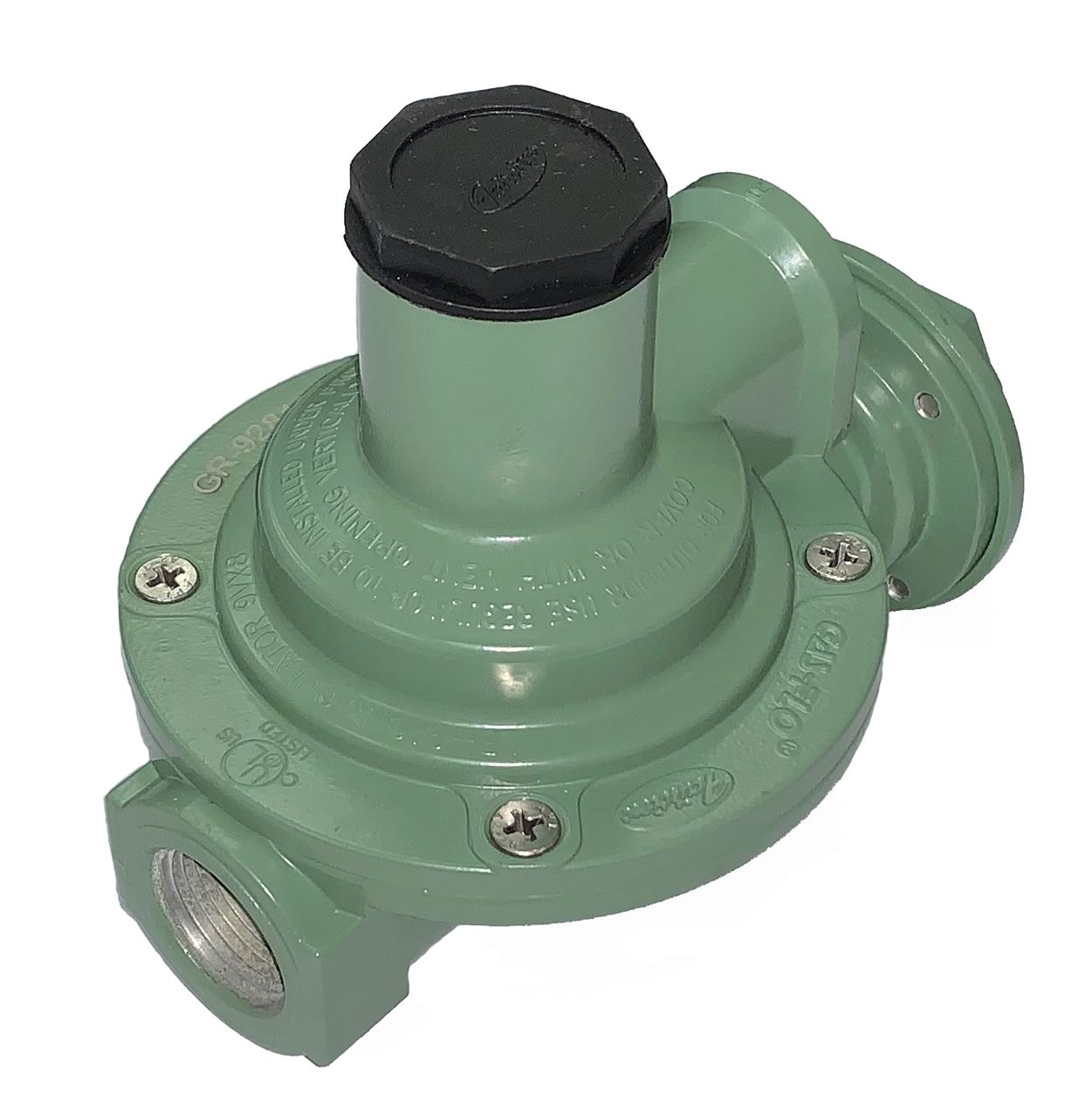

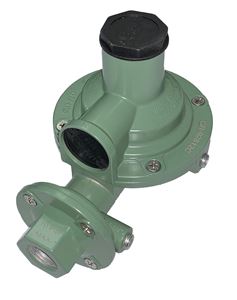

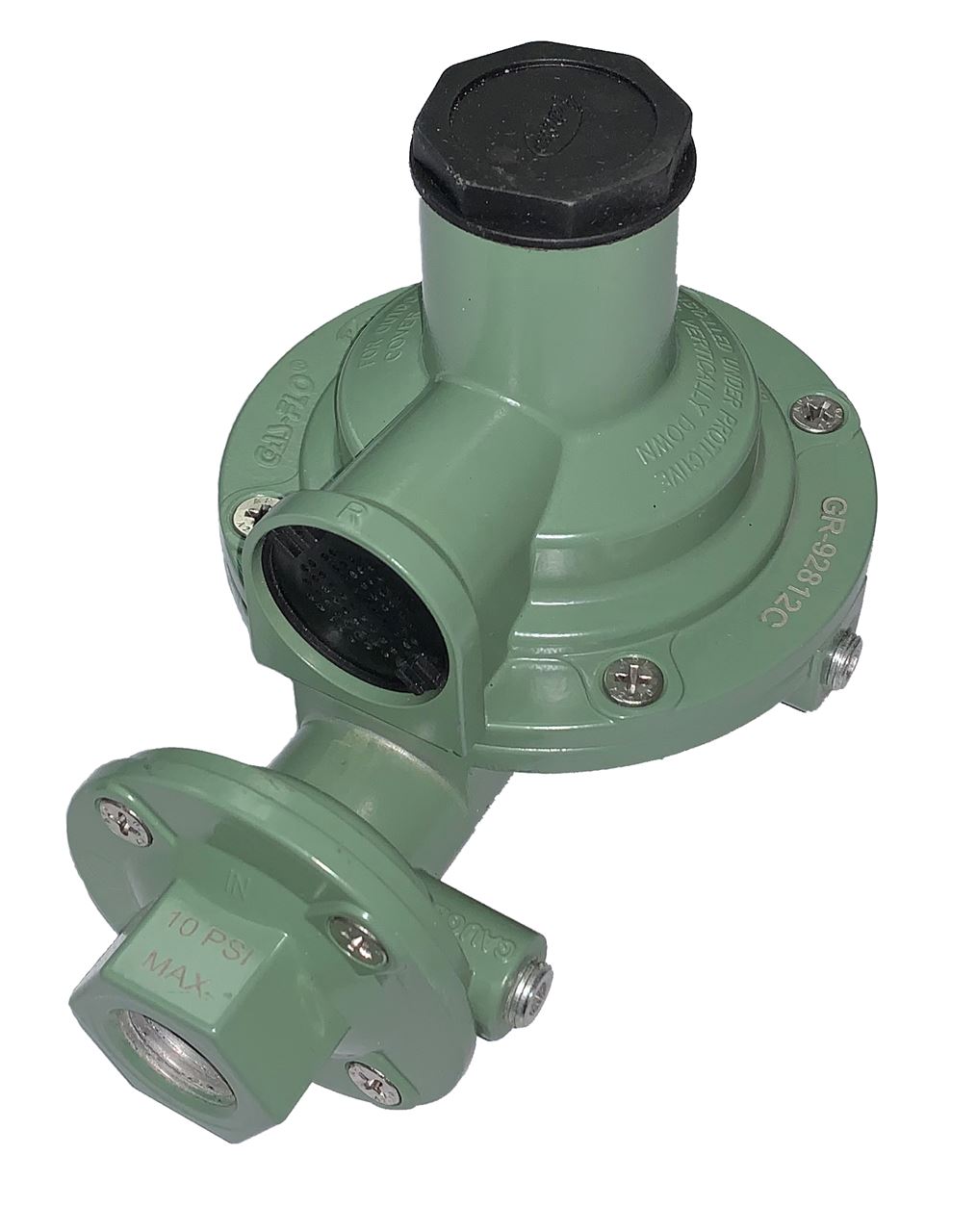

Fairview GAS-FLO® GR-92812C Compact Low Pressure LP Gas Second Stage Regulator 1/2 F NPT In x 3/4 F NPT Out 1,200,000 BTU/HR. Fairview's Compact Low Pressure Lp Gas Second Stage Regulators provide the highest gas flows available in a compact design

Features:
• Second Stage regulators are designed to reduce the pressure from a First-Stage regulator
• Its’ compact design makes it the ideal choice for small domestic applications
• These adjustable regulators are factory set at 11" w.c. with first stage inlet pressure of 10 psig
• Equipped with integral relief valve and built-in 1/8" FNPT gauge tap
• UL Listed

TECHNICAL DATA SHEET

INSTALLATION DATA SHEET

Specifications:
• Inlet: 1/2 F NPT
• Outlet: 3/4 F NPT
• Delivery Pressure: 11" W.C. @ 10 PSI
• Vent Position: Over Inlet
• Capacity BTU/Hr Propane: 1,200,000
• Mount: Standard
• TO BE INSTALLED BY LICENSED GAS FITTERS ONLY
• Weight: 1.60 lbs
