Picture of Gas-Flo Compact High Pressure LP Gas First Stage Regulator F.POL x 1/2 F NPT

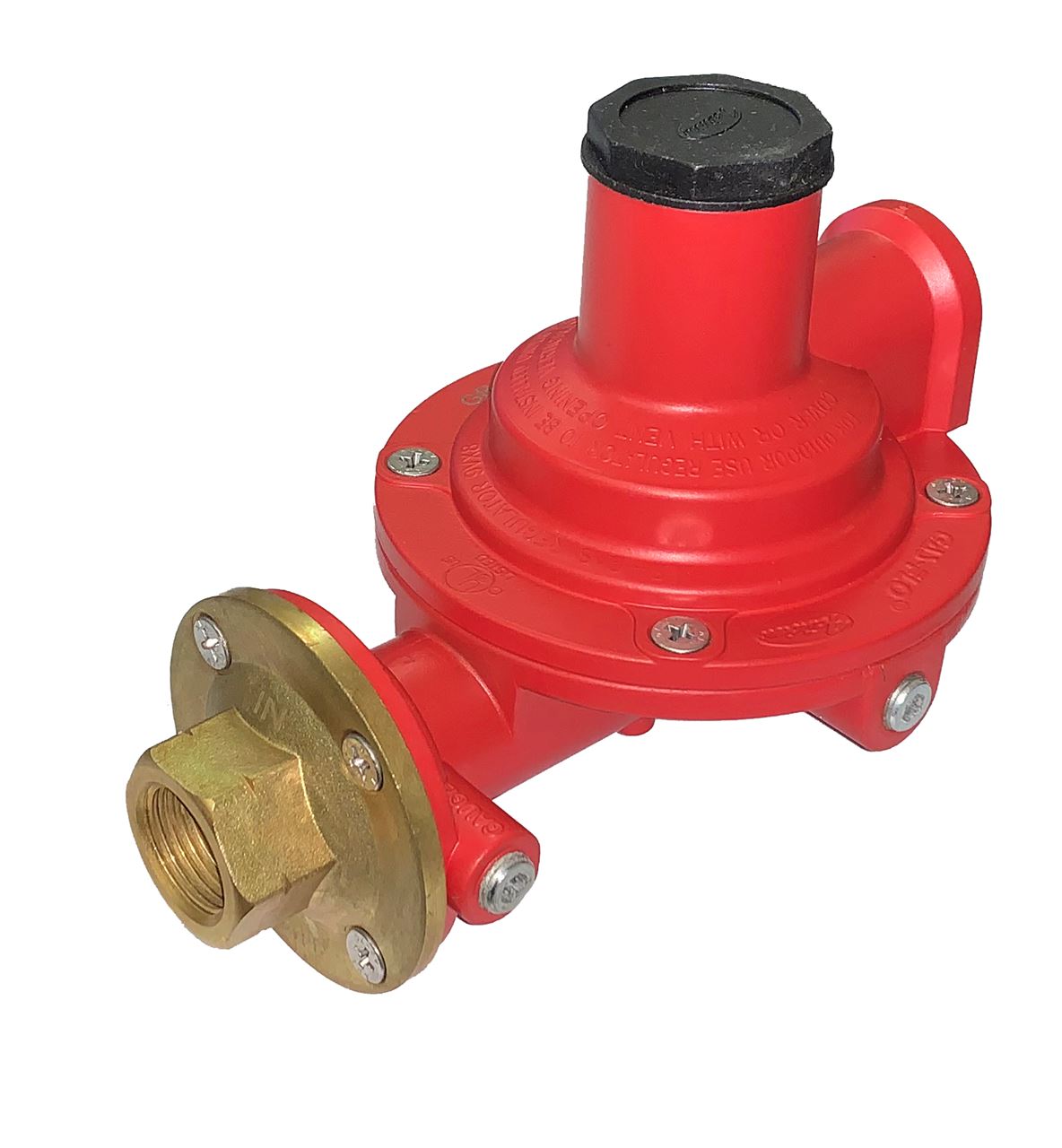

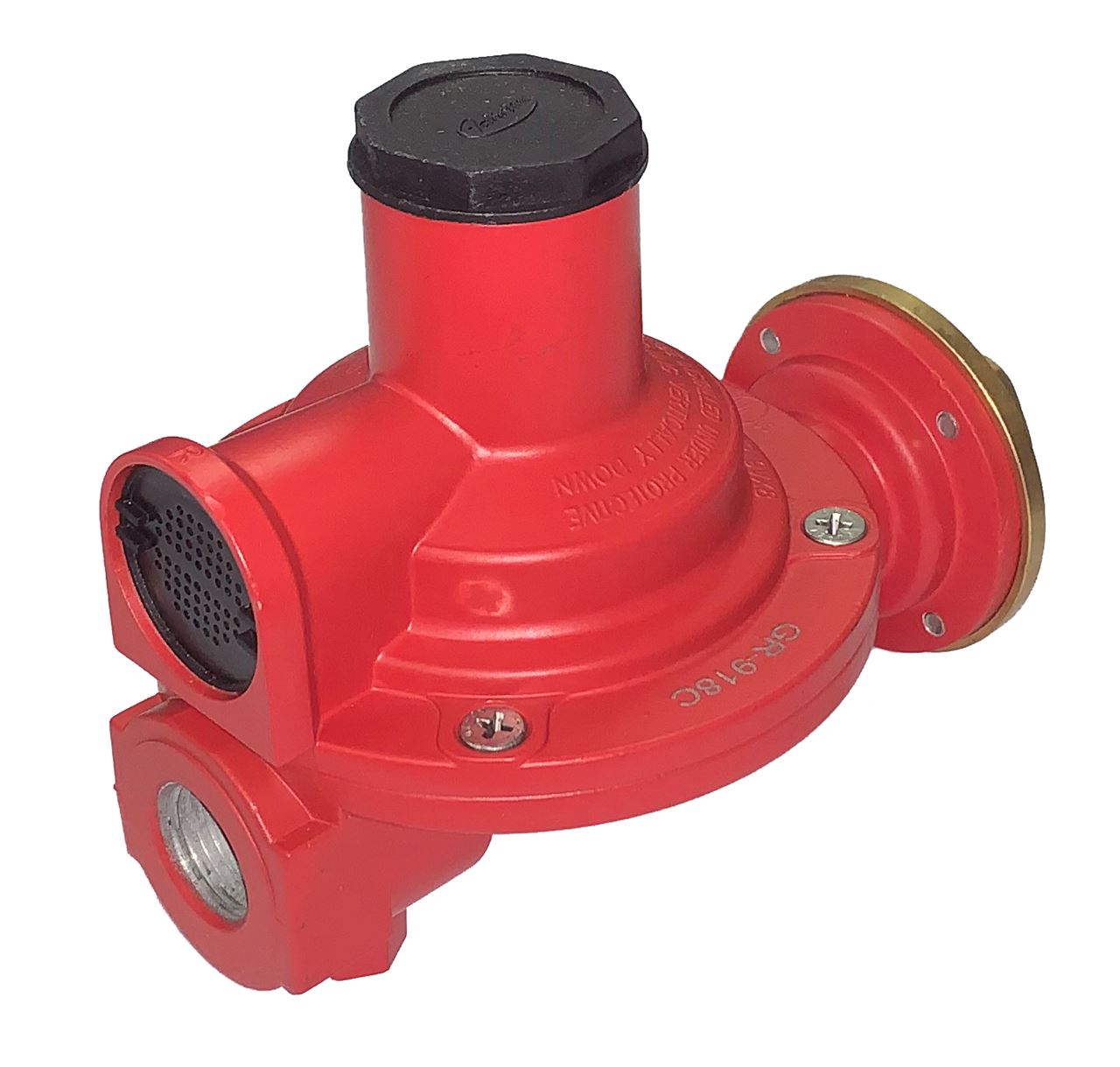

Gas-Flo Compact High Pressure LP Gas First Stage Regulator F.POL x 1/2 F NPT

SKU: GR-918C

Brand: Fairview USA Inc.

4 in stock
Reg. $52.33

$39.84

Save: $12.49
QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Fairview GAS-FLO® GR-918C Compact High Pressure LP Gas First Stage Regulator Female POL In x 1/2 F NPT Out 2,400,000 BTU/HR. Fairview's Compact High Pressure Lp Gas First Stage Regulators provide the highest gas flows available in a compact design

Features:
• Compact First-Stage regulators are designed for use as the first regulator of a Two-Stage regulation system
• Its’ compact design makes it the ideal choice for small domestic applications
• This large capacity adjustable First Stage regulator is factory set at 10 PSIG
• Equipped with integral relief valve and built-in 1/8" FNPT gauge tap
• UL Listed

TECHNICAL DATA SHEET

INSTALLATION DATA SHEET

Specifications:
• Inlet: Female POL
• Outlet: 1/2 F NPT
• Delivery Pressure: 10 PSI
• Inlet Pressure: 250 PSI
• Bonnet Vent: Over outlet
• Capacity BTU/Hr Propane: 2,400,000
• TO BE INSTALLED BY LICENSED GAS FITTERS ONLY
• Weight: 1.95 lbs

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
