Fairview GAS-FLO™ BV5221-C 3/8" FPT Forged Full Port Brass Ball Valve 600 WOG. Fairview's Brass Female Pipe Gas Cocks are CSA certified to 5 P.S.I. (-40°) from the appliance to the meter

TECHNICAL DATA SHEET

INSTALLATION DATA SHEET

Features:
• For Indoor/Outdoor applications. C.S.A. Certified forged brass ball valves for Natural and Propane Gas (vapor)
• Brass valves for use in W.O.G. = Water, Oil and Gas
• Full Port
• Blowout-Proof Stem
• PTFE Seats
• CSA certified to 5 P.S.I.

Specifications:
• W.O.G: 600
• Pipe Size: 3/8” FPT
• Connection Type: Female to Female
• Materials: Aluminum, Brass, NBR, PTFE, Steel
• Operating temperature: -40°F to +125°F (-40°C to +52°C)
• Weight: 0.22 lbs

Fairview QD-GMC8-8F GAS-FLO™ 1/2” Coupler x 1/2” FPT LPG/Nat. Gas Quick Disconnect. Fairview's CSA LPG/Nat. Gas Couplers are CSA Certified up to 60 PSI WP

Features:
• C.S.A. GAS INTERCHANGE QUICK DISCONNECTS (QD-GMC)
• CSA certified to Z21.41/CSA6.9 for Natural Gas and LP-Gas – air mixtures
• All QD-GMC Quick Disconnects Rated To 60 P.S.I.
• QD-GMC Sizes 1/4, 3/8, 1/2 & 3/4 Quick Disconnects Are Rated To A Temperature -40°F

TECHNICAL DATA SHEET

INSTALLATION INSTRUCTIONS

Specifications:
• Coupler (Body Size): 1/2
• Female Pipe Thread: 1/2
• Quick Disconnect BTU Capacity: 120,000
• Material: Brass
• Weight: 7.4 oz

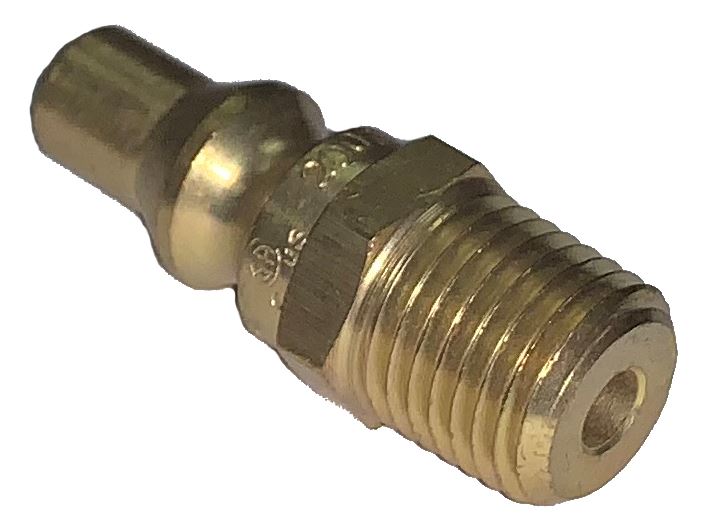

Fairview QD-GMN8-8F GAS-FLO™ 1/2” Nipple x 1/2” FPT LPG/Nat. Gas Quick Disconnect. Fairview's CSA LPG/Nat. Gas Nipples are CSA Certified up to 60 PSI WP

Features:
• C.S.A. GAS INTERCHANGE QUICK DISCONNECTS (QD-GMC)
• CSA certified to Z21.41/CSA6.9 for Natural Gas and LP-Gas – air mixtures
• QD-GMC Quick Disconnects Rated To 60 P.S.I.
• QD-GMC Sizes 1/4, 3/8, 1/2 & 3/4 Quick Disconnects Are Rated To A Temperature -40°F

TECHNICAL DATA SHEET

INSTALLATION INSTRUCTIONS

Specifications:
• Nipple (Body Size): 1/2
• Female Pipe Thread: 1/2
• Quick Disconnect BTU Capacity: 120,000
• Material: Brass
• Weight: 2.8 oz

Fairview QD-RVSDC-4 GAS-FLO™ Dust Plug for QD-GMRVC4-4F Quick Disconnect Coupler

Features:
• Fairview's LPG/Nat. Gas Nipple Dust Caps Help Protect QD-GMC Series QD's when they are not in use

TECHNICAL DATA SHEET

Specifications:
• Color: Yellow
• Material: Plastic
• Weight: 0.3 oz
