General Pump YCV14FSS Stainless Steel Check Valve 1/4 FPT x 1/4 FPT 6,500 PSI

Features
• Light Cracking Pressure
• Stainless Body with Stainless Wetted Parts
• O-ring on Poppet for a Leak Proof Seal
• Solid Body Construction, Won’t Come Apart During Installation

GP YCVSS Specifications Sheet

Specifications
• Body Material: Stainless Steel
• Max Volume: 6.5 GPM
• Rated Pressure: 5,800 PSI
• Maximum Pressure: 6,500 PSI
• Maximum Temperature: 195° F
• Port Sizes: 1/4" NPT-F
• Cracking Pressure: 5.8 PSI
• Length: 1.85”
• Weight: 1.9 oz

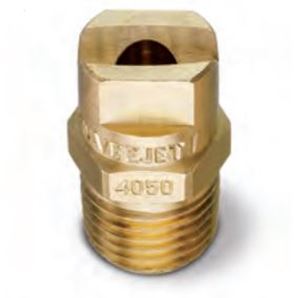

Spraying Systems 40º Brass H-U 1/4" (M) VeeJet® Spray Nozzle. As the liquid exits through the sharp V shape cut of the orifice, it forms into a flat spray pattern. The distribution is tapered from the center of the spray

Features
• Flat fan type, tapered edge spray pattern
• Consistent performance over the industry's largest range of flow rates and pressures
• One-piece design
• Uniform spray distribution with flow rates from .012 to 1237 gpm
• Operating pressures up to 500 psi

TECHNICAL DATA SHEET

Specifications
• Spray Angle: 40º
• Capacity Size: 15
• Operating Pressure: Up to 500 PSI
• Material: Brass
• Inlet Connection: 1/4" Male thread
• Length: 1.0”
• Hex: 9/16”
• Net Weight: 0.8 Oz

Spraying Systems 40º Brass H-U 1/4" (M) VeeJet® Spray Nozzle. As the liquid exits through the sharp V shape cut of the orifice, it forms into a flat spray pattern. The distribution is tapered from the center of the spray

Features
• Flat fan type, tapered edge spray pattern
• Consistent performance over the industry's largest range of flow rates and pressures
• One-piece design
• Uniform spray distribution with flow rates from .012 to 1237 gpm
• Operating pressures up to 500 psi

TECHNICAL DATA SHEET

Specifications
• Spray Angle: 40º
• Capacity Size: 30
• Operating Pressure: Up to 500 PSI
• Material: Brass
• Inlet Connection: 1/4" Male thread
• Length: 1.0”
• Hex: 9/16”
• Net Weight: 0.8 Oz

General Pump 2560001 Multi-Nozzle Holder (Accepts 1/4" MPT Nozzles)

Features
• This handy tool allows you to very quickly switch between four different nozzles on one spray gun wand.
• It accepts any 1/4" NPT-M thread spray nozzles and turns each one into a quick-connect tip.
• Works great for changing between foam and water, reaching multiple height levels, or altering the intensity of the spray without having to carry around several individual nozzles!
• Note: Nozzles not included.

Specifications

Specifications
• Dimensions: 0.70” H x 3.30” L
• Replaces JROD #6540
• Weight: 0.25 lb
