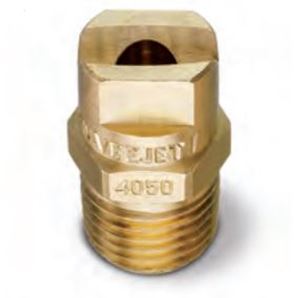

Spraying Systems 25º Brass H-U 1/4" (M) VeeJet® Spray Nozzle. As the liquid exits through the sharp V shape cut of the orifice, it forms into a flat spray pattern. The distribution is tapered from the center of the spray
Features• Flat fan type, tapered edge spray pattern• Consistent performance over the industry's largest range of flow rates and pressures• One-piece design• Uniform spray distribution with flow rates from .012 to 1237 gpm• Operating pressures up to 500 psi
TECHNICAL DATA SHEET
Specifications• Spray Angle: 25º • Capacity Size: 15• Operating Pressure: Up to 500 PSI• Material: Brass• Inlet Connection: 1/4" Male thread• Length: 1.0”• Hex: 9/16”• Net Weight: 0.8 Oz
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
General Pump D10076 Quick Disconnect Coupler Plug Stainless Steel 1/4” x 1/4" NPT-F 6,000 PSI
Features: • Quick disconnect design• 304 Stainless steel
Specifications: • Quick Disconnect Coupler: Plug• Body Material: 304 Stainless steel• Plug Size: 1/4"• Thread: 1/4” NPT-F• Max Temp: 175°• Max Operating Pressure: 6,000 PSI• Replaces QCP1FSS• Weight: 0.06 lb
General Pump D10079 Quick Disconnect Coupler Plug Stainless Steel 3/8” x 3/8" NPT-M 6,000 PSI
Specifications: • Quick Disconnect Coupler: Plug• Body Material: 304 Stainless steel• Plug Size: 3/8"• Thread: 3/8” NPT-M• Max Temp: 175°• Max Operating Pressure: 6,000 PSI• Replaces QCP2MSS• Weight: 0.11 lb
Mecline 15° High Pressure Threaded Spray Nozzle with Ceramic Orifice and 1/4” Male NPT
Features• Ceramic inserts provide up to 10 times the wear life of stainless steel inserts• Ceramic insert is resistant to wear• The ceramic insert guarantees a more precise and stronger stream• Stainless Steel AISI303 body
Specifications• Flat fan jet angle: 15°• Nozzle Size: 3.5• Rated Pressure: 4,500 PSI• Permissible Pressure: 5,075 PSI • Rated Temperature: 300° F• Inlet: 1/4” Male NPT• Weight: 0.63 oz
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
General Pump D10074 Quick Disconnect Coupler Socket Stainless Steel 3/8” x 3/8" NPT-F 5,000 PSI
Features: • Quick disconnect design• 304 Stainless steel• EPDM O-Ring
Specifications: • Quick Disconnect Coupler: Socket• Body Material: 304 Stainless steel• Socket Size: 3/8"• Thread: 3/8” NPT-F• Max Temp: 175°• Max Operating Pressure: 5,000 PSI• Replaces QCS2FSS• Weight: 0.21 lb
