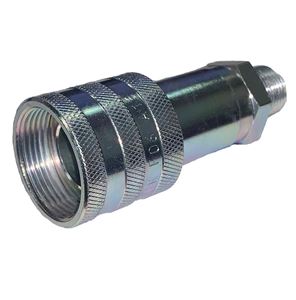

Kuriyama Alfagomma® Argus QX 3/8" Male Screw Coupling x 3/8" FPT 10,000 PSI ISO 14540. Thanks to the exclusive ALFAGOMMA TOP COAT – Galvanic Coating – proprietary technology, the complete range of ARGUS Quick release couplings can boast an extraordinary wear and corrosion resistance, so as to guarantee a longer lifespan to your system

Features:
• ARGUS QX high pressure couplings can be used for connecting and disconnecting hydraulic lines
• Their robust construction and tested components make them ideally suited for high and intermittent pressure loads
• During the coupling action, valves that release and/or block the flow are automatically activated
• The QX quick release coupling, formed by coupling plug and coupling socket, is coupled by a screwing action with the hand nut of the plug component

Specifications:
• Product Type: Male Coupler with Female Thread
• Dash: 06
• Inside Diameter: 3/8”
• Working Pressure: 10,150 PSI
• Burst Pressure: 40,650 PSI
• Norm: ISO 14540
• Thread: NPTF
• Temperature: -22º F - 257º F
• End Type: Male
• Second End Type: 3/4-18 FPT
• Weight: 0.40 lb

Kuriyama Alfagomma® Argus QX 1/4" Female Screw Coupling x 1/4" MNPT 10,000 PSI ISO 14540. Thanks to the exclusive ALFAGOMMA TOP COAT – Galvanic Coating – proprietary technology, the complete range of ARGUS Quick release couplings can boast an extraordinary wear and corrosion resistance, so as to guarantee a longer lifespan to your system

Features:
• ARGUS QX high pressure couplings can be used for connecting and disconnecting hydraulic lines
• Their robust construction and tested components make them ideally suited for high and intermittent pressure loads
• During the coupling action, valves that release and/or block the flow are automatically activated
• The QX quick release coupling, formed by coupling plug and coupling socket, is coupled by a screwing action with the hand nut of the plug component

Specifications:
• Product Type: Female Coupler with Male Thread
• Dash: 04
• Inside Diameter: 1/4”
• Working Pressure: 10,150 PSI
• Burst Pressure: 40,650 PSI
• Norm: ISO 14540
• Thread: NPTF
• Temperature: -22º F - 257º F
• End Type: Female
• Second End Type: 1/4-18 MNPT
• Weight: 0.30 lb

Accutek® S1016-BC Steel 90° Street Elbow 1/4 Male Pipe x 3/8 Female Pipe Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.

Specifications:
• Applications - Water, Oil, Air
• Working Pressure: 4,000 PSI
• Burst Pressure: 16,000 PSI
• Working Temperature: -65°F (-54°C) to 250°F (120°C)
• Pipe threads must be sealed using approved thread sealant
• Weight: 0.21 lbs

General Pump New & Improved DuraView Inlet Water Filter 1/2" MPT X 3/4 FGH with 1/4" Bypass Ports. For general purpose pressure wash use

Features
• NEW FEATURE: over-molded easy grip nut!
• Strongest see-through filter on the market
• Loadbearing brass spine
• Integrated garden hose connector
• Flow through design
• Clear plastic cover

Specifications
• Maximum Temperature: 180° F
• Max Volume: 8.0 GPM
• Maximum Operating Pressure: 150 PSI
• Minimum Operating Pressure: 15 PSI
• Materials: Brass, Stainless Steel, Buna-N
• Inlet: Female garden hose (FGH)
• Outlet: 1/2” NPT-M
• Bypass Ports: 1/4” NPT-F Bypass Port
• Dimensions: 1.125” x 3.75”
• Weight: 1.50 Lbs
