5/16" Stainless Steel Worm Gear Hose Clamp Size 06 - 5/16" to 7/8"

Specifications:
• Size: 06
• Min. Clamp Dia.: 5/16”
• Max. Clamp Dia.: 7/8”
• Band Width: 5/16”
• Band, Housing & Screw: Series 300 Stainless Steel
• Weight: 0.2 oz

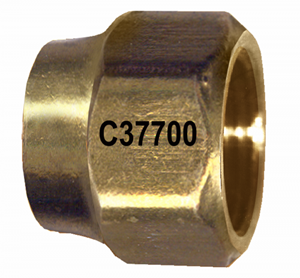

Fairview 40-10 5/8 Tube OD Forged Short Nut. Fairview's Forged Brass Short Nut SAE 45° Flare Fittings are ideal for use with LP-Gas, Natural Gas, Refrigeration, Gasoline and more

TECHNICAL DATA SHEET

INSTALLATION DATA SHEET

Specifications:
• Used with Copper, aluminum, and Welded Steel Hydraulic Tube that can be flared
• Note: Fairview 40 Series Flare Nuts are hot forged and marked C37700 in accordance with CAN/CSA-B149 gas installation code requirements
• Hex Size: 1-1/16
• Working Pressure: 650 PSI
• Material: Forged Brass
• Working Temperature: -65°F (-54°C) to 250°F (120°C)
• Weight: 0.12 lbs

Fairview 42-6 3/8 Tube OD x 3/8 Tube OD Brass Union Coupling. Fairview's Forged Brass Union Coupling Male Flare to Male Flare SAE 45° Flare Fittings are ideal for use with LP-Gas, Natural Gas, Refrigeration, Gasoline and more

TECHNICAL DATA SHEET

INSTALLATION DATA SHEET

Specifications:
• Used with Copper, aluminum, and Welded Steel Hydraulic Tube that can be flared
• Working Pressure: 1,000 PSI
• Material: Forged brass
• Working Temperature: -65°F (-54°C) to 250°F (120°C)
• Weight: 0.08 lbs

Fairview 42-10 5/8 Tube OD x 5/8 Tube OD Brass Union Coupling. Fairview's Forged Brass Union Coupling Male Flare to Male Flare SAE 45° Flare Fittings are ideal for use with LP-Gas, Natural Gas, Refrigeration, Gasoline and more

TECHNICAL DATA SHEET

INSTALLATION DATA SHEET

Specifications:
• Used with Copper, aluminum, and Welded Steel Hydraulic Tube that can be flared
• Working Pressure: 650 PSI
• Material: Forged brass
• Working Temperature: -65°F (-54°C) to 250°F (120°C)
• Weight: 0.18 lbs
