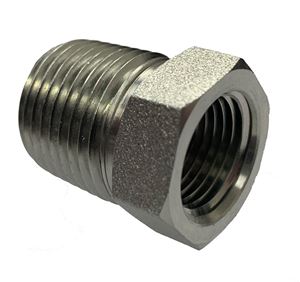

Accutek® S1010-HE Steel Hex Bushing 1 MPT x 3/4 FPT Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.
TECHNICAL DATA SHEET
INSTALLATION DATA SHEET
Specifications:• Applications - Water, Oil, Air • Working Pressure: 2,000 PSI• Burst Pressure: 8,000 PSI• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Pipe threads must be sealed using approved thread sealant• Weight: 0.24 lbs
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
ProPulse, a Schieffer Company, backed by more than 90 years of innovation
Features: • Assembled in USA with high quality components • Suitable for commercial pressure cleaning applications • Rubber construction throughout• Reinforcement: One layer of high tensile braided steel – R1 Rating• Cover: Wrapped finish with embossed lay line• Burst (Minimum): 3:1 working pressure • Impulse Life: 200,000+
Specifications: • Hose Inner Diameter: 3/8" ID• Length: 50’• Working (Maximum): Up to 4,000 PSI• Burst (Minimum): 12,000 PSI• Color: Black• Maximum Temperature: 250° F.• Ends: 3/8" MPT (1 solid & 1 swivel)• Permanent heavy duty black bend restrictors on both ends• Weight 9.5 lbs
Accutek® S1003-C Steel Female Hex Coupling 3/8 Female Pipe x 3/8 Female Pipe Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.
Specifications:• Applications - Water, Oil, Air • Working Pressure: 4,000 PSI• Burst Pressure: 16,000 PSI• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Pipe threads must be sealed using approved thread sealant• Weight: 0.09 lbs
Polypropylene 3/4" MPT x 3/4" FPT Street Elbow
Features:• Polypropylene fittings are generally acceptable for use at working pressures up to 150 PSI at ambient temperatures• Polypropylene is resistant to a broad range of chemicals including most agricultural chemicals, acid based fertilizers, ammonium compounds, calcium carbonate, ethanol, hydrochloric acid, magnesium sulfate, oxalic acid, proprionic acid, phosphoric acid and sodium compounds
Specifications:• Black Polypropylene Street Elbow• Male NPT x Female NPT
