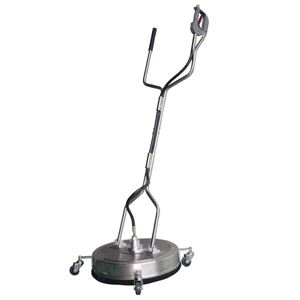

General Pump DCFSCS22Z 22" Hammerhead Professional Stainless Steel Flat Surface Cleaner with Casters. The gun has a revolutionary compensating design to reduce fatigue. The cleaner glides easily across the surface uniformly cleaning pool decks, sidewalks, garage floors and more
FEATURES• Compensating gun feature• Full 22” cleaning path• Heavy-duty anodized aluminum components• Rugged Stainless Steel cover, handle, and casters• Swivel has grease zerk fitting for bearing lubrication• Stainless Steel inlet filter for water filtration• Supplied with 3-nozzle rotating arm
SPECIFICATIONS• Max Flow: 8 GPM• Operating Pressure: 1,000 – 4,000 PSI• Max. Temp.: 180° F • Nozzles: 925020M (3)• Trigger Gun Inlet: 3/8" NPT-F• Optimal performance if used with a 3 GPM or more pressure washer• Dimensions-Retracted 70” x 23” x 23”• Shipping Weight 28 lbs
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
General Pump 15° x #2.0 M-Style Spray Nozzle 1/4” NPT-M
Features• 5,000 PSI operating pressure• Made in the USA• General Pump High Pressure Spray Tips feature a two piece design• Inserts are through hardened and pressed into a 303 stainless steel rust-resistant body for improved durability• The contour control nozzle chamber eliminates the need for flow straighteners • Resistant to most chemical• Laser marked for clarity and durability
Specifications• Tip Angle: 15°• Nozzle Size: 2.0• Operating Pressure: 5,000 PSI• Connection: 1/4” NPT-M• Weight: 0.05 oz
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
5/16" Stainless Steel Worm Gear Hose Clamp Size 05 - 1/4" to 11/16"
Specifications:• Size: 05• Min. Clamp Dia.: 1/4”• Max. Clamp Dia.: 11/16”• Band Width: 5/16”• Band, Housing & Screw: Series 300 Stainless Steel• Weight: 0.2 oz
General Pump D10079 Quick Disconnect Coupler Plug Stainless Steel 3/8” x 3/8" NPT-M 6,000 PSI
Features: • Quick disconnect design• 304 Stainless steel
Specifications: • Quick Disconnect Coupler: Plug• Body Material: 304 Stainless steel• Plug Size: 3/8"• Thread: 3/8” NPT-M• Max Temp: 175°• Max Operating Pressure: 6,000 PSI• Replaces QCP2MSS• Weight: 0.11 lb
General Pump D10075 Quick Disconnect Coupler Socket Stainless Steel 3/8” x 3/8" NPT-M 5,000 PSI
Features: • Quick disconnect design• 304 Stainless steel• EPDM O-Ring
Specifications: • Quick Disconnect Coupler: Socket• Body Material: 304 Stainless steel• Socket Size: 3/8"• Thread: 3/8” NPT-M• Max Temp: 175°• Max Operating Pressure: 5,000 PSI• Replaces QCS2MSS• Weight: 0.21 lb
