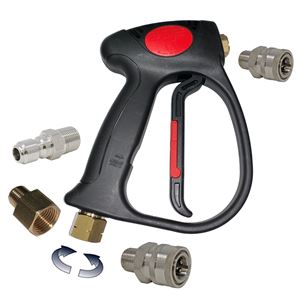

Comet Static MV925 With Swivel Inlet SS Quick Connect Gun Kit
Specifications:• Mecline MV925 Easy Pull Trigger Gun 4,500 PSI 8.0 GPM with Swivel Inlet• Comet 1/4 BSPM to 3/8" FNPT Brass Fitting• General Pump QD Socket, SS 1/4 x 1/4 NPT-M 6,000 PSI• General Pump QD Socket, SS 3/8 x 3/8 NPT-M 5,000 PSI• General Pump QD Plug, SS 3/8 x 3/8 NPT-M 6,000 PSI• Weight: 2.10 lbs
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
General Pump 15° x #4.5 M-Style Spray Nozzle 1/4” NPT-M
Features• 5,000 PSI operating pressure• Made in the USA• General Pump High Pressure Spray Tips feature a two piece design• Inserts are through hardened and pressed into a 303 stainless steel rust-resistant body for improved durability• The contour control nozzle chamber eliminates the need for flow straighteners • Resistant to most chemical• Laser marked for clarity and durability
Specifications• Tip Angle: 15°• Nozzle Size: 4.5• Operating Pressure: 5,000 PSI• Connection: 1/4” NPT-M• Weight: 0.05 oz
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
General Pump 15° (Yellow) #4.5 Quick Connect (Q) Spray Nozzle
Features• 5,000 PSI operating pressure• Made in the USA• Ceramic insert is resistant to wear• Through-hardened stainless steel orifices offer superior wear resistance compared to standard case hardened nozzles• Stainless steel housing resists cracking and wear• Resistant to most chemical• Large color coded tip protector on Q-type nozzles permits rapid identification of fan angle• Laser marked for clarity and durability
Specifications• Tip Angle: 15° (Yellow)• Nozzle Size: 4.5• Operating Pressure: 5,000 PSI• Connection: 1/4” QC Plug• Weight: 0.05 oz
General Pump 3/8" 5,000 PSI Stainless Steel Quick Disconnect Fittings (1 Plug & 1 Socket)
Features: • Quick disconnect design• Body Material: 304 Stainless steel• 1 pc: General Pump 3/8 NPT-F Quick disconnect coupler socket with EPDM O-ring• 1 pc: General Pump 3/8 NPT-F Quick disconnect coupler plug• Max Temp: 175°• Max Operating Pressure: 5,000 PSI • Works with standard quick connects• Weight: 0.30 lb
Features:• Suitable for cold and hot water commercial pressure cleaning applications• Reinforcement: One layer of high tensile braided steel – R1 Rating• Cover: Wrapped finish with embossed lay line in grey “mark-less” cover color• Burst (Minimum): 3:1 working pressure • Impulse Life: 200,000+
Specifications: • Hose Inner Diameter: 3/8" ID• Length: 10’• Working (Maximum): Up to 4,000 PSI• Burst (Minimum): 12,000 PSI• Color: Grey, “mark-less”• Maximum Temperature: 250° F.• Ends: 3/8" MPT (1 solid & 1 swivel)• Weight 2.65 lbs
