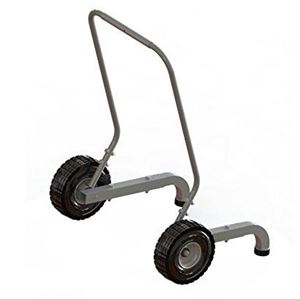

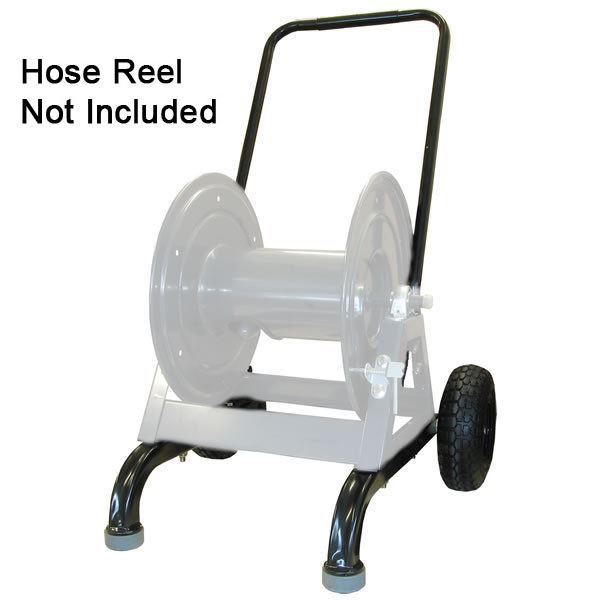

General Pump 2100465 Industrial Cart Kit for DHRA A-Frame Hose ReelsFEATURES• For all General Pump’s A-Frame hose reels• Convert your General Pump hose reel into a hose reel cart• Makes storage and moving of your fully loaded hose reel easy• Stainless steel hardware• Powder coated steel frame• Unique design - one kit can be used on all three hose reels• Soild Polyurethane wheels will never go flatSPECIFICATIONS• Works with Hose Reel Models: DHRA• Wheels: 10” • Size: 39.13” x 25.87”• Hose Reel Not Included• Carton Weight 32 lbs
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
General Pump DHRA50300 3/8" x 300', 1/2" x 250' "A" Frame Industrial Hose Reel. Rated 5,000 PSI and up to 250° F. Ideal for use with pressure washers, sewer jetters, lawn & tree sprayers, etc. Can be used as is or can be mounted to portable cart or stacked FEATURES• Direct hand-crank rewind with pin lock• Solid steel construction• Durable gray high-gloss powder coated finish• Full flow stainless steel swivel• Friction brake• Switchable swivel/handle• HD steel welded frame• HD sealed axle bearings
DHRA Spec Sheet
SPECIFICATIONS• Capacity 3/8" Pressure Washer / Sewer Hose: 300’• Capacity 5/8" Garden Hose: 225’• Capacity 3/4" Garden Hose: 175’• Max. PSI: 5,000• Max Temp: 250° F.• Color: Black• Inlet: 1/2 NPT-F (Bushing Included, 1/2 NPT-M x 3/8 NPT-F)• Outlet: 1/2 NPT-F (Bushing Included, 1/2 NPT-M x 3/8 NPT-F)• Carton Dimensions: 21” x 20” x 18”• Gross Weight 41.9 lbs
3/8” Suttner ST-49 Stainless Steel Rotating Sewer Jetter Nozzle, # 4.5. Does not have a forward spraying orifice, but has 3 orifices angled backwards and to the side. Slides easily into drain pipes and sewer lines flushing debris or clearing frozen pipes while attached to sewer hose. Better for removing build up from the walls of the pipe or tube.
Features• High Quality, German engineered components• 3 Backward ports drive the nozzle forward and flush debris• Rotating style adds extra agitation and surface cleaning• Corrosion resistant stainless steel and brass construction
Specifications • Inlet: 3/8” Female• Nozzle Size: # 4.5• Material: Stainless steel & brass• Maximum Pressure: 4,000 PSI• Outside Diameter (O.D.): .94”• Weight: .15 lb
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
Construction:• Inner Tube: Yellow seamless thermoplastic• Reinforcement: High tensile double synthetic fiber braids• Cover: Abrasion resistant polyether-urethane
Features: • Materials: Constructed to provide rugged and reliable service under the most severe and demanding conditions• Yellow Color Tube: Assures the user that they are using a WASTEC designated Piranha® Hose Product• Seamless Thermoplastic Tube: Provides maximum resistance to hydrolysis• High Tensile Double Synthetic Fiber Braids: Contributes to low volumetric expansion and eliminates loss of strength from moisture absorption• Abrasion Resistant Polyether-Urethane: Polyurethane cover provides exceptional cut, abrasion and fungus resistance• Pressure Testing: All Piranha® factory-assembled hoses are 100% pressure tested
Specifications:• Service Temp. Range: -40º F to +160º F• Hose ID: 3/8”• Assembled Length: 300’• Male NPT Fittings: 3/8 - 18• Color: Red• Max. Working Pressure: 5,000 PSI • Weight: 35.5 lbs.
ProPulse, a Schieffer Company, backed by more than 90 years of innovation
MADE IN USAEvery foot of Propulse Jetter Clean is manufactured at our ISO9001:2008 certified factory in the USA using 100% domestically sourced materials
Features:• Suitable for consumer and commercial applications• Reinforcement: One layer of polyester braid• Cover: Thermoplastic smooth finish with printed lay line• Burst (Minimum): 2.5:1 working pressure• Easily slides into sewer lines and pipes• Glossy black abrasion resistant cover
Specifications: • Inner Diameter: 1/4” ID• Length: 100’• Working (Maximum) Pressure: 4,400 PSI• Burst (Minimum): 11,000 PSI • Max. Fluid Temperature: 160º F.• Inlet: 1/4” MPT (Swivel)• Outlet: 1/4” MPT (Solid)• Weight 6.5 lbs
