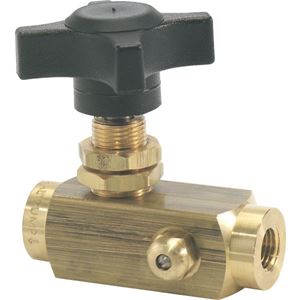

General Pump lnline Adjustable Needle Valve with Side Adjustable Metering Screw. Adjustable SS Stem Allows Regulating the Opening in the Bore for Fine Control of Flow
Features• Adjustable from full flow to full close• Full flow can be controlled with metering screw • Durable, comfortable handle• Can be panel mounted in any position• Made in the USA
Injector Specifications:• Max Pressure: 4,000 PSI • Maximum Flow: 6.0 GPM • Max Temperature: 180° F• Inlet: 1/4" NPT-F• Outlet: 1/4" NPT-F• Materials: Brass, Stainless, Plastic, Viton, Teflon• Weight: 0.40 lbs
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Accutek® S1022-B Steel Male Hex Nipple 1/4 Male Pipe x 1/4 Male Pipe Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.
Specifications:• Applications - Water, Oil, Air • Working Pressure: 5,000 PSI• Burst Pressure: 20,000 PSI• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Pipe threads must be sealed using approved thread sealant• Weight: 0.06 lbs
Accutek® S1022-C Steel Male Hex Nipple 3/8 Male Pipe x 3/8 Male Pipe Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.
Specifications:• Applications - Water, Oil, Air • Working Pressure: 4,000 PSI• Burst Pressure: 16,000 PSI• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Pipe threads must be sealed using approved thread sealant• Weight: 0.09 lbs
Specifications:• Size: 020• Min. Clamp Dia.: 3/4”, 19mm• Max. Clamp Dia.: 1-3/4”, 44mm• Band Width: 1/2”• Band, Housing & Screw: Series 300 Stainless Steel• Weight: 0.8 oz
General Pump D10001 Quick Disconnect Coupler Socket Brass 1/4” x 1/4" NPT-F 5,000 PSI
Features: • Quick disconnect design• Brass• EPDM O-Ring
Specifications: • Quick Disconnect Coupler: Socket• Body Material: Brass• Socket Size: 1/4"• Thread: 1/4” NPT-F• Max Temp: 175°• Max Operating Pressure: 5,000 PSI• Replaces QCS1FB• Weight: 0.15 lb
