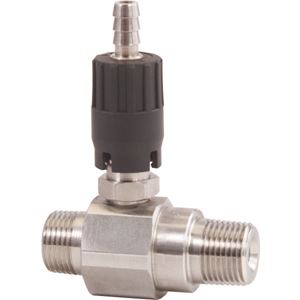

Picture of GP High Draw 20% Adjustable SS Chemical Injector MxM #1.8

GP High Draw 20% Adjustable SS Chemical Injector MxM #1.8

SKU: 100861

Brand: General Pump

$33.53

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


General Pump #1.8mm Adjustable Chemical Injector 304 Stainless Steel, High Draw, Chemical Draw Up To 20% with 3/8" NPT-M. This 0 - 20% adjustable flow chemical injector is connected to the downstream side of the pressure pump and is activated when using a low pressure soap nozzle. Choose size based on flow rate of your pressure washer


Features
• Up tp a 20% injection draw rate
• 304 Stainless Steel
• Made in the USA
• A cost effective solution to your chemical application needs


Note:
• The injector is incorrectly laser etched with 1-2 GPM
• Statement from GP: I confirmed that the program in the laser etching machine was wrong. It should be 2 to 3 GPM however the injector is built correctly


Injector Specifications:
• Size: # 1.8 mm (2.0 to 3.0 GPM)
• Max Operating Pressure: 5,500 PSI
• Max Temperature: 190° F
• Inlet: 3/8” NPT-M
• Outlet: 3/8” NPT-M
• Chemical Port: 1/4” Hose Barb
• Materials: Stainless Steel, Viton
• Note: If between sizes, choose the smaller injector size
• Weight: 0.50 lbs

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
