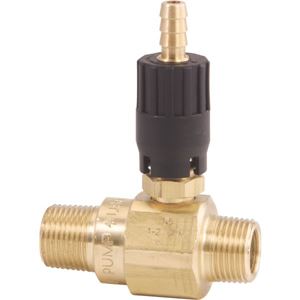

General Pump #2.3mm Adjustable Chemical Injector with Acid Kit, High Draw, Chemical Draw Up To 20% with 3/8" NPT-M. This 0 - 20% adjustable flow chemical injector is connected to the downstream side of the pressure pump and is activated when using a low pressure soap nozzle. Choose size based on flow rate of your pressure washer

Features
• Up tp a 20% injection draw rate
• Acid kit with ceramic check ball
• Made in the USA
• A cost effective solution to your chemical application needs

Injector Specifications:
• Size: # 2.3 mm (5.0 to 8.0 GPM)
• Max Operating Pressure: 4,500 PSI
• Max Temperature: 195° F
• Inlet: 3/8” NPT-M
• Outlet: 3/8” NPT-M
• Chemical Port: 1/4” Hose Barb
• Materials: Brass, Ceramic, Stainless Steel, Viton
• Note: If between sizes, choose the smaller injector size
• Weight: 0.30 lbs

Features
• High Quality, German engineered components
• The Relax-Action™, German Engineered Technology reduces trigger pulling force by 40% and holding force up to 90% compared to usual competitors spray gun
• Relax-Action™ is designed for operators and applications with longer periods of cleaning time
• Easiest opening and holding trigger in its class
• Proper spray angle for optimal positioning of pressure points
• Unitized valve for easy repair
• Forged brass housing for maximum strength

Specifications
• Max Pressure: 5,000 PSI
• Max Flow: 12.0 GPM
• Max Temp: 300° F.
• Inlet: 3/8" Female NPT
• Outlet: 1/4" Female NPT
• Weight: 1.28 lb

General Pump 25° x #6.0 M-Style Spray Nozzle 1/4” NPT-M

Features
• 5,000 PSI operating pressure
• Made in the USA
• General Pump High Pressure Spray Tips feature a two piece design
• Inserts are through hardened and pressed into a 303 stainless steel rust-resistant body for improved durability
• The contour control nozzle chamber eliminates the need for flow straighteners
• Resistant to most chemical
• Laser marked for clarity and durability

Specifications
• Tip Angle: 25°
• Nozzle Size: 6.0
• Operating Pressure: 5,000 PSI
• Connection: 1/4” NPT-M
• Weight: 0.05 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

General Pump 25° x #9.0 M-Style Spray Nozzle 1/4” NPT-M

Features
• 5,000 PSI operating pressure
• Made in the USA
• General Pump High Pressure Spray Tips feature a two piece design
• Inserts are through hardened and pressed into a 303 stainless steel rust-resistant body for improved durability
• The contour control nozzle chamber eliminates the need for flow straighteners
• Resistant to most chemical
• Laser marked for clarity and durability

Specifications
• Tip Angle: 25°
• Nozzle Size: 9.0
• Operating Pressure: 5,000 PSI
• Connection: 1/4” NPT-M
• Weight: 0.05 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart
