Picture of GP High Draw 20% Fixed Chemical Injector MxM #1.8

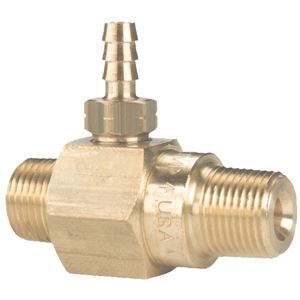

GP High Draw 20% Fixed Chemical Injector MxM #1.8

SKU: 100774

Brand: General Pump

$10.38

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


General Pump #1.8mm Fixed Chemical Injector, High Draw, Chemical Draw 20% with 3/8" NPT-M. This 20% fixed flow chemical injector is connected to the downstream side of the pressure pump and is activated when using a low pressure soap nozzle. Choose size based on flow rate of your pressure washer


Features
• 20% injection draw rate
• Made in the USA
• A cost effective solution to your chemical application needs


Injector Specifications:
• Size: # 1.8 mm (2.0 to 3.0 GPM)
• Max Operating Pressure: 4,500 PSI
• Max Temperature: 195° F
• Inlet: 3/8” NPT-M
• Outlet: 3/8” NPT-M
• Chemical Port: 1/4” Hose Barb
• Materials: Brass, Stainless Steel, Viton
• Note: If between sizes, choose the smaller injector size
• Weight: 0.30 lbs

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.

Customers who bought this item also bought
Picture of QD Plug, SS 3/8 x 3/8 NPT-F 6,000 PSI

QD Plug, SS 3/8 x 3/8 NPT-F 6,000 PSI

SKU: D10078


General Pump D10078 Quick Disconnect Coupler Plug Stainless Steel 3/8” x 3/8" NPT-F 6,000 PSI


Features:
• Quick disconnect design
• 304 Stainless steel


Specifications:
• Quick Disconnect Coupler: Plug
• Body Material: 304 Stainless steel
• Plug Size: 3/8"
• Thread: 3/8” NPT-F
• Max Temp: 175°
• Max Operating Pressure: 6,000 PSI
• Replaces QCP2FSS
• Weight: 0.09 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"
  Price: $2.65
Picture of QD Plug, SS 3/8 x 3/8 NPT-M 6,000 PSI

QD Plug, SS 3/8 x 3/8 NPT-M 6,000 PSI

SKU: D10079


General Pump D10079 Quick Disconnect Coupler Plug Stainless Steel 3/8” x 3/8" NPT-M 6,000 PSI


Features:
• Quick disconnect design
• 304 Stainless steel


Specifications:
• Quick Disconnect Coupler: Plug
• Body Material: 304 Stainless steel
• Plug Size: 3/8"
• Thread: 3/8” NPT-M
• Max Temp: 175°
• Max Operating Pressure: 6,000 PSI
• Replaces QCP2MSS
• Weight: 0.11 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"
  Price: $2.65
Picture of QD Socket, SS 3/8 x 3/8 NPT-F 5,000 PSI

QD Socket, SS 3/8 x 3/8 NPT-F 5,000 PSI

SKU: D10074


General Pump D10074 Quick Disconnect Coupler Socket Stainless Steel 3/8” x 3/8" NPT-F 5,000 PSI


Features:
• Quick disconnect design
• 304 Stainless steel
• EPDM O-Ring


Specifications:
• Quick Disconnect Coupler: Socket
• Body Material: 304 Stainless steel
• Socket Size: 3/8"
• Thread: 3/8” NPT-F
• Max Temp: 175°
• Max Operating Pressure: 5,000 PSI
• Replaces QCS2FSS
• Weight: 0.21 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"
  Price: $6.31
Picture of GP High Draw 20% Fixed Chemical Injector MxM #2.1

GP High Draw 20% Fixed Chemical Injector MxM #2.1

SKU: 100775


General Pump #2.1mm Fixed Chemical Injector, High Draw, Chemical Draw 20% with 3/8" NPT-M. This 20% fixed flow chemical injector is connected to the downstream side of the pressure pump and is activated when using a low pressure soap nozzle. Choose size based on flow rate of your pressure washer


Features
• 20% injection draw rate
• Made in the USA
• A cost effective solution to your chemical application needs


Injector Specifications:
• Size: # 2.1 mm (3.0 to 5.0 GPM)
• Max Operating Pressure: 4,500 PSI
• Max Temperature: 195° F
• Inlet: 3/8” NPT-M
• Outlet: 3/8” NPT-M
• Chemical Port: 1/4” Hose Barb
• Materials: Brass, Stainless Steel, Viton
• Note: If between sizes, choose the smaller injector size
• Weight: 0.30 lbs

  Price: $11.02
