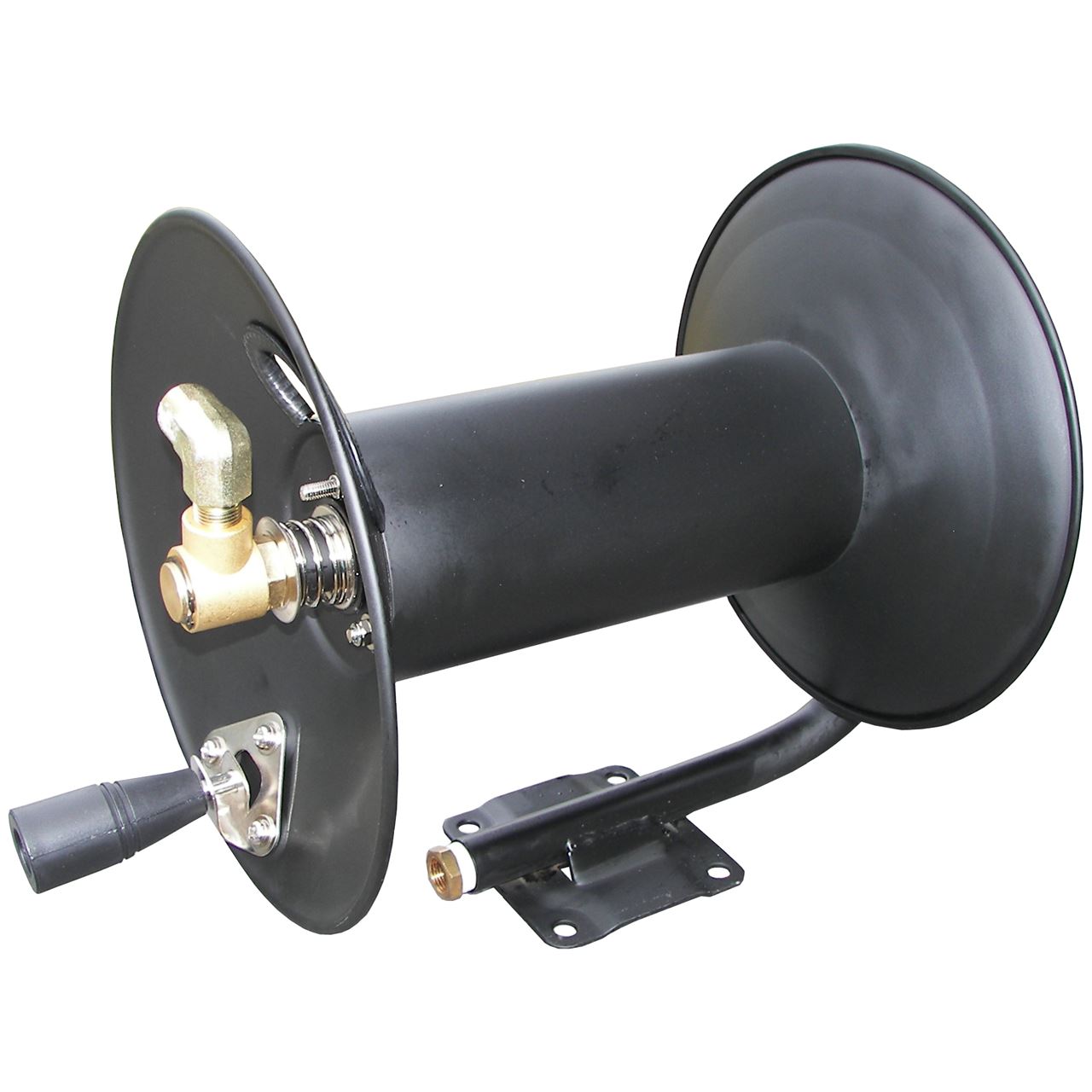

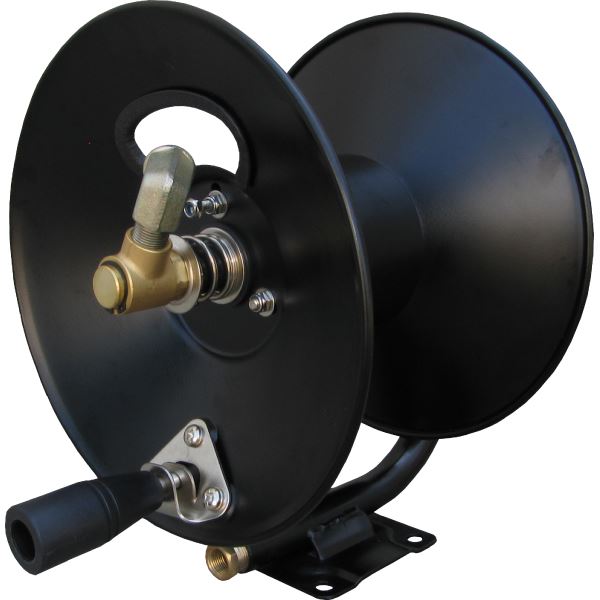

General Pump D30002 3/8" x 100' Steel Hose Reel with Mounting Base. Rated 4,000 PSI and up to 185° F. Heavy duty steel frame structure is ideal for pressure washer and sewer jetter use. Quickly and easily mounts to most vertical and horizontal surfacesFEATURES• Direct hand-crank rewind with pin lock• Solid steel construction• Durable black powder coated finish• Brass swivel with Stainless Steel internal stem• Hardware provided for mounting to cart handle or bumper
Specifications Sheet
SPECIFICATIONS• Capacity: 100’ of 3/8” pressure washer/sewer jetter hose• Max. PSI: 4,000• Max Temp: 185° F.• Color: Black• Inlet: 3/8 NPT-F• Outlet: 3/8 NPT-F• Dimensions: 14.4” L x 10.5” W x 12.8” H• Weight 11.75 lbs
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
General Pump D10076 Quick Disconnect Coupler Plug Stainless Steel 1/4” x 1/4" NPT-F 6,000 PSI
Features: • Quick disconnect design• 304 Stainless steel
Specifications: • Quick Disconnect Coupler: Plug• Body Material: 304 Stainless steel• Plug Size: 1/4"• Thread: 1/4” NPT-F• Max Temp: 175°• Max Operating Pressure: 6,000 PSI• Replaces QCP1FSS• Weight: 0.06 lb
General Pump D10079 Quick Disconnect Coupler Plug Stainless Steel 3/8” x 3/8" NPT-M 6,000 PSI
Specifications: • Quick Disconnect Coupler: Plug• Body Material: 304 Stainless steel• Plug Size: 3/8"• Thread: 3/8” NPT-M• Max Temp: 175°• Max Operating Pressure: 6,000 PSI• Replaces QCP2MSS• Weight: 0.11 lb
General Pump 3/8" 5,000 PSI Stainless Steel Quick Disconnect Fittings (1 Plug & 1 Socket)
Features: • Quick disconnect design• Body Material: 304 Stainless steel• 1 pc: General Pump 3/8 NPT-F Quick disconnect coupler socket with EPDM O-ring• 1 pc: General Pump 3/8 NPT-F Quick disconnect coupler plug• Max Temp: 175°• Max Operating Pressure: 5,000 PSI • Works with standard quick connects• Weight: 0.30 lb
Features:• Suitable for cold and hot water commercial pressure cleaning applications• Reinforcement: One layer of high tensile braided steel – R1 Rating• Cover: Wrapped finish with embossed lay line in grey “mark-less” cover color• Burst (Minimum): 3:1 working pressure • Impulse Life: 200,000+
Specifications: • Hose Inner Diameter: 3/8" ID• Length: 4’• Working (Maximum): Up to 4,000 PSI• Burst (Minimum): 12,000 PSI• Color: Grey, “mark-less”• Maximum Temperature: 250° F.• Ends: 3/8" MPT (1 solid & 1 swivel)• Weight 1.25 lbs
General Pump 2100379 Wall Mount Hose Reel Kit with Swivel Plate For D3000 & DHR Hose ReelsFEATURES• Easily and safely mount your hose reel to the wall • Built in plate swivel with ball bearing allows smooth complete rotation• Lock on plate keeps your hose reel from rotating when you don’t want it to• Powder coated all steel construction for durability, strength and lasting protectionSPECIFICATIONS• Works with Hose Reel Models: D3000 and DHR• Color: Black• Carton Size: 18”x 14”x 9”• Weight 9.35 lbs
General Pump 2100375 Cart Kit for D3000 & DHR Hose Reels. Cart has pre-drilled mounting base platformFEATURES• Convert your General Pump hose reel into a hose reel cart• Makes storage and moving of your fully loaded hose reel easy• Stainless steel hardware• Powder coated steel frame• Unique design• Solid 10” Polyurethane wheels will never go flat• Removable handle for compact storageSPECIFICATIONS• Works with Hose Reel Models: D3000 and DHR• Color: Black• Carton Size: 33” x 21” x 9”• Hose Reel Not Included• Weight 27.5 lbs
