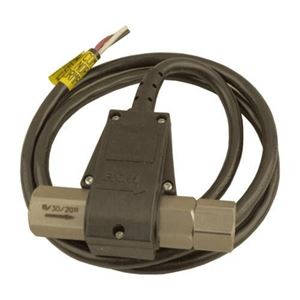

PA PR1 / General Pump YPRSWITCHHPL 9,570 PSI Pressure Switch with 360 PSI (Red) activation and 3/8" BSP-M stainless steel inlet. Electro-mechanical device, which, upon reaching a pre-set pressure (360 PSI) , opens or closes an electrical control contact

Specifications
• Activation (Red) PSI: 360
• Max. Voltage: 250
• Max Rated Pressure: 8,700 PSI
• Max Permissible Pressure: 9,570 PSI
• Rated Temp: 195° F
• Max. Curr. Strength: 16 (A) – resistive load - 6 (A) – inductive load
• Electrical insulation: 55 IP
• Connection Material: Stainless Steel
• Cable Length: 47" (1200 mm)
• Electric Wire: 3 x 1 mm
• Inlet: 3/8" Bsp M
• Weight: 10.3 oz.

General Pump Hose Reel Swivel 5,000 PSI

Compatible with DHR50100D and DHR50150D hose reels

PA Pulsar 4 Unloader Plumbing Kit for Pressure Washer Pump with EZ Start– 4,050 PSI Max. This unloader kit has all the components to make installation easy

Specifications:
• Works with pumps that have 1/2” FPT inlet and 3/8” FPT Outlet
• Built-In easy start valve relieves back pressure during engine start up
• Maximum Pressure: 4,050 PSI
• Max. Volume: 10.5 GPM

COMPONENT:
• PA Pulsar 4 Adjustable Unloader Valve 4,050 PSI with EZ Start
• 24” of push-on bypass hose
• 1/4” Male push on fitting
• 3/8” Male push-on fitting
• 3/8M x 3/8M Hex Nipple Steel
• GP Thermal relief valve protects pump from overheating
• GP Duraview water inlet filter with garden hose connection
• 3/8” QC socket
• 3/8” QC plug
• Roll of Teflon tape
• Note: Pump in 2nd picture is not included and kit may look different than shown in picture
• Unloader Must Be Installed Vertically For Proper Operation
• Weight: 5 lb
