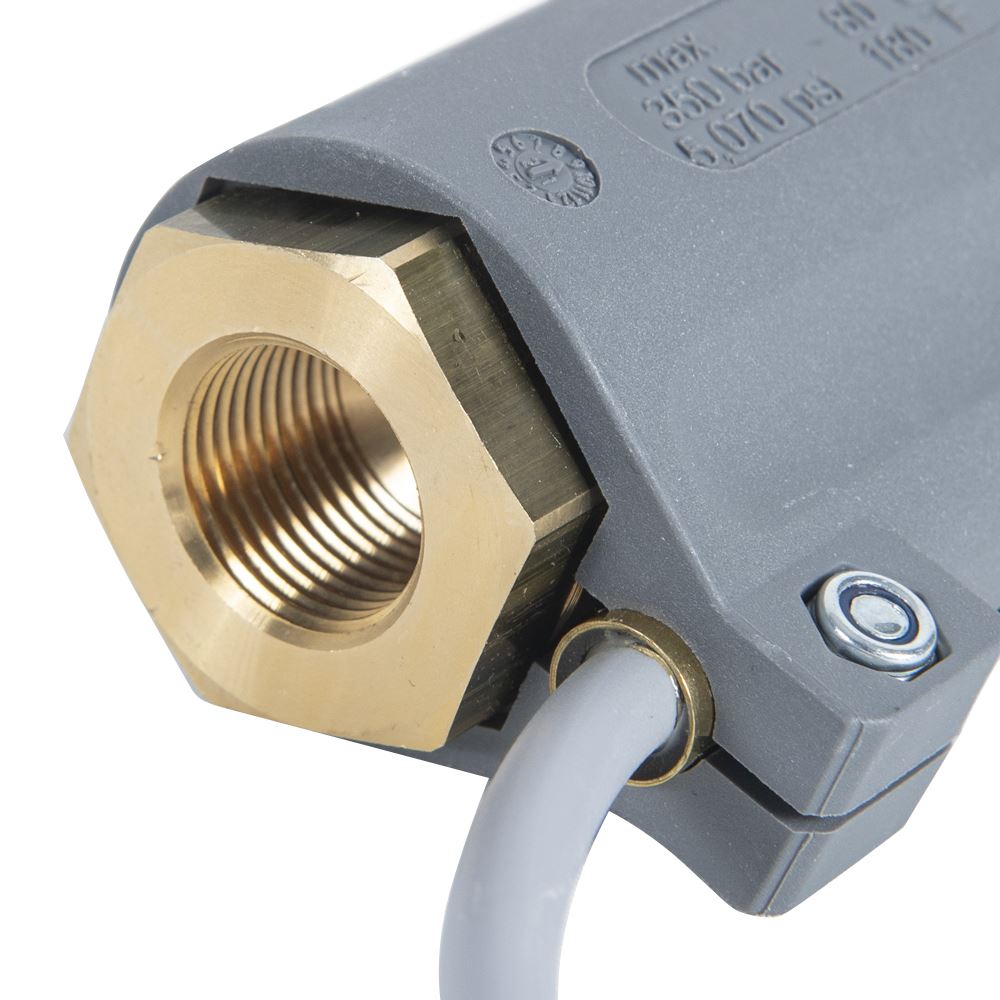

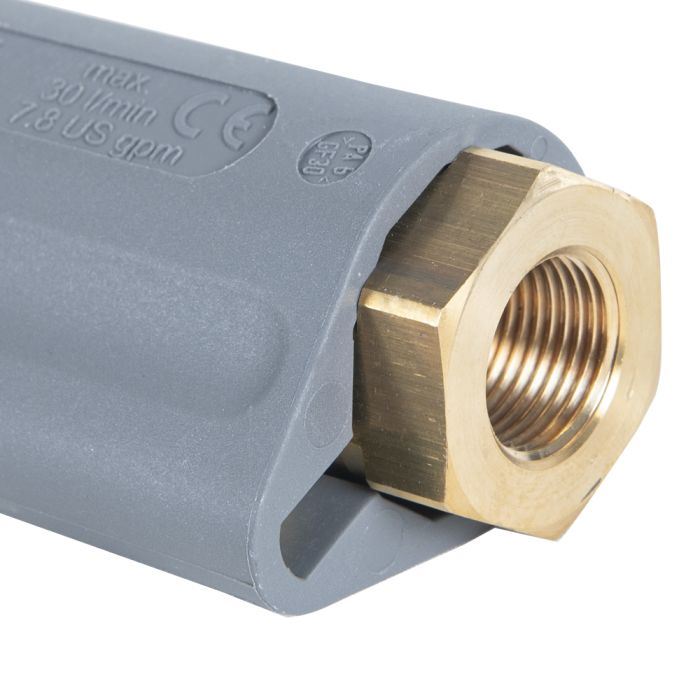

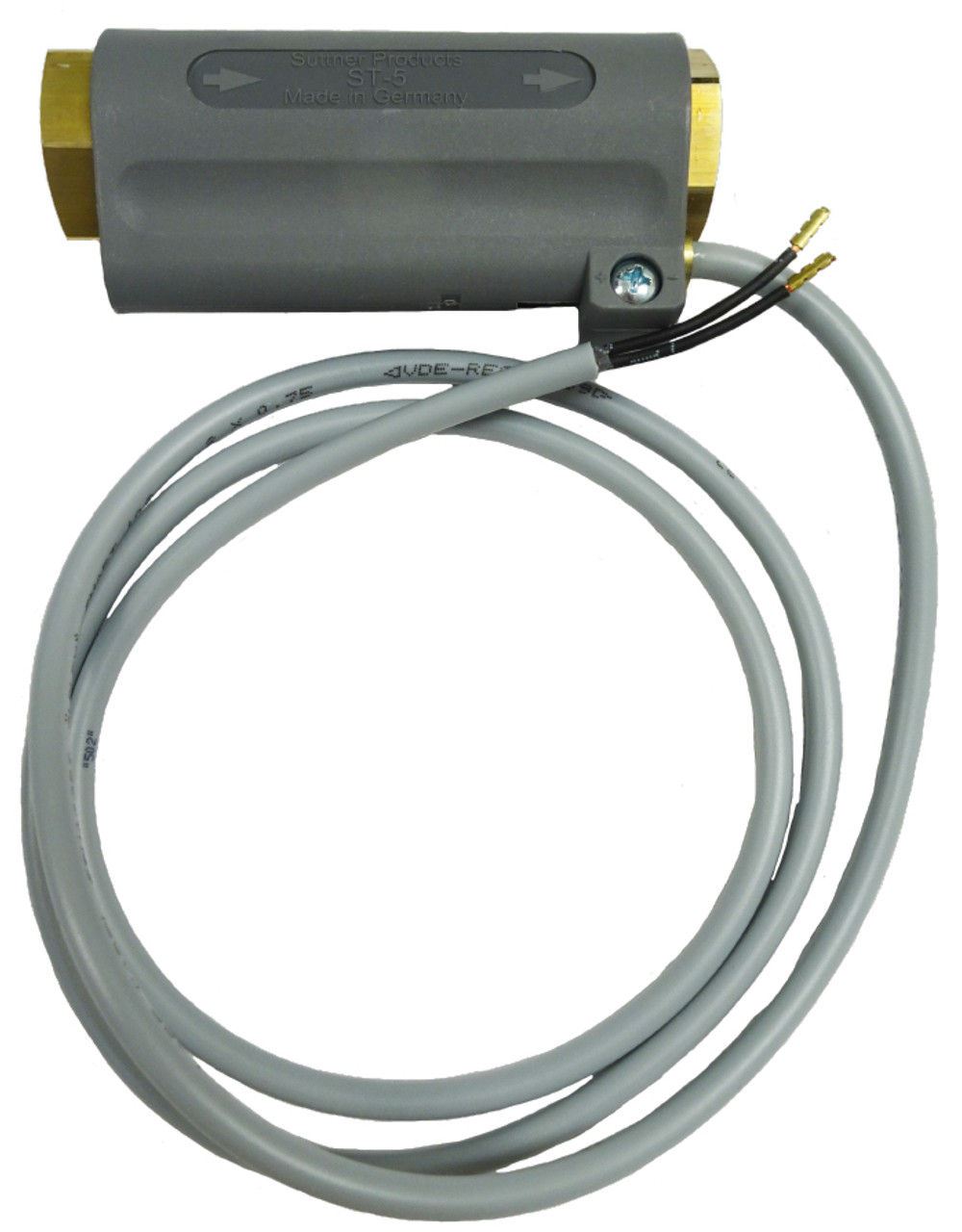

Picture of Suttner ST-5 Any Position Flow Switch 5,070 PSI (New)

Suttner ST-5 Any Position Flow Switch 5,070 PSI (New)

SKU: 200005601

Brand: Suttner America

$46.32

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Suttner ST-5 Any Position Flow Switch. Mounts in any position with a free floating magnet configuration


Features:
• Can be mounted horizontal or vertical
• Mounts further downstream in pumping system than traditional vacuum switches, thereby minimizing potential leak points that can cause vacuum switches to close
• Easy brass reed switch replacement


Specifications:
• Max. Pressure: 5,070 PS
• Min. Pressure: 75 PSI
• Max. Flow Rate: 7.8 GPM
• Min. Flow Rate: 1 GPM
• Contact: 1 A - 250 V
• Max: Fluid Temperature: 180° F
• Cable Length: 47.0”
• Inlet & Outlet: 3/8” FNPT
• Housing: Brass
• Color: Grey
• Replaces 200005600
• Weight: 0.98 lbs

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
