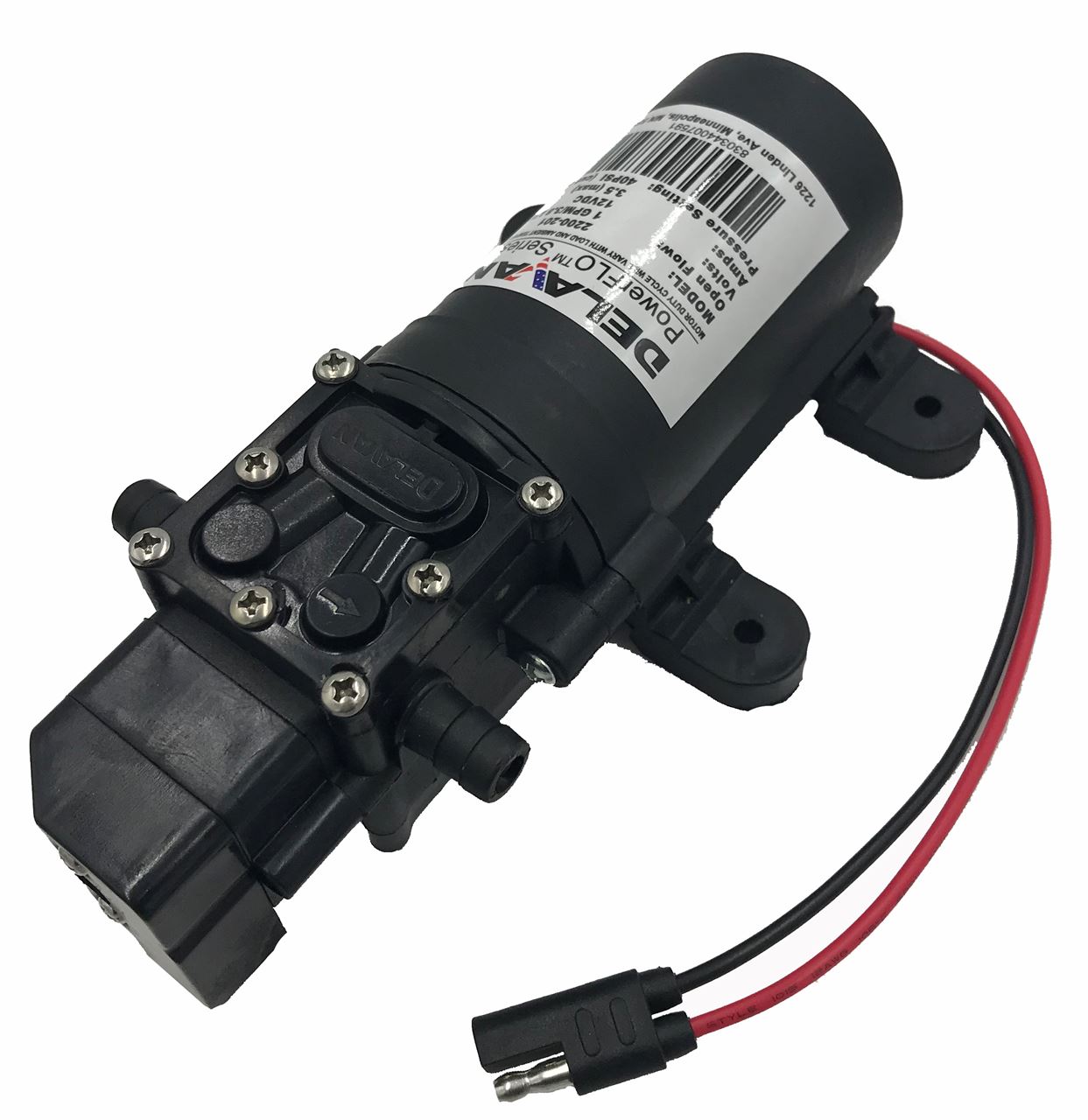

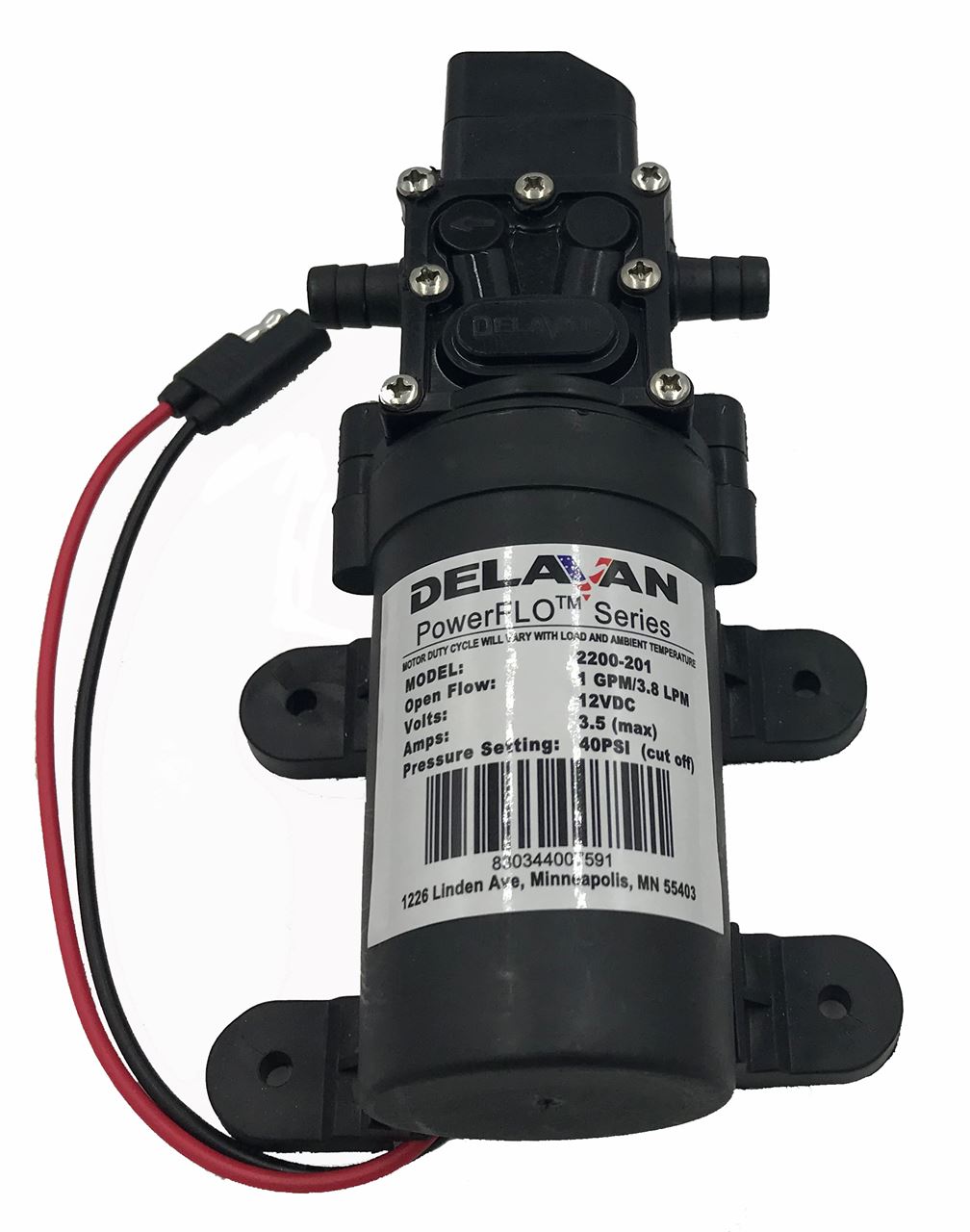

Picture of Delavan Diaphragm Pump 12 V, 40 PSI, 1.0 GPM

Delavan Diaphragm Pump 12 V, 40 PSI, 1.0 GPM

SKU: 2200-201-SB

Brand: Delavan Fluid Power

$22.51

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Delavan PowerFLO™ 2200 Series Diaphragm Pump. Demand Switch – Operates only when liquid flow is required


Motor:
• Type: 12 VDC, permanent magnet, thermally protected, splash proof
• Leads: 18 AWG, 4.5” long with 2-pin connector
• Amps: 3.5 Max.
• Duty Cycle: Intermittent


Materials of Construction:
• Motor Housing: Nylon 6/6
• Pump Housing: Polypropylene
• Valves: Viton
• Diaphragm: Santoprene


Pump:
• Demand Switch – Operates only when liquid flow is required
• Shut-Off: 40 ±5 PSI factory setting
• Turn-On: 25 ±5 PSI factory setting
• Type: 2-chamber positive displacement
• Capable of being run dry
• Excellent self-priming capability
• Liquid Temperature: 110°F Max.
• Priming Capabilities: 4 feet suction lift
• Max. Flow: 1.0 GPM
• Max Pressure: 40 PSI
• Inlet/Outlet Ports: 3/8” hose barb
• Packaging: Small box
• UPC: 830344009724 & 830344007591
• Weight: 1.25 lbs



 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
