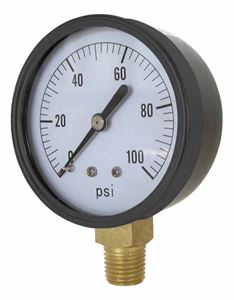

Picture of 100 PSI Bottom Mount 2" ABS Pressure Gauge

100 PSI Bottom Mount 2" ABS Pressure Gauge

SKU: 1124DAB100

Brand: Valley Industries

$4.86

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Valley Industries Series 24 Single Scale General Service 100 PSI Bottom Mount 2" ABS Dry Pressure Gauge. These gauges are designed for use with gas, oil, and water or any medium not corrosive to brass or bronze


Features:
• Dial Range: 0 – 100 PSI
• Casing: 2" Diameter
• Movement: Brass
• Bourdon Tube: C-Shaped in copper alloy
• Pointer: Black enameled aluminum
• Dial: White aluminum
• Window: Acrylic
• Case Material: ABS
• Mounting: Bottom
• Connection Material: Brass
• Connection Size: 1/4" MNPT
• Accuracy: ASME/ANSI B40.1 Grade B (3- 2-3%)
• Fill Material: Dry only
• Wetted Parts: Copper alloy
• Weight: 0.15 lbs.



 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
