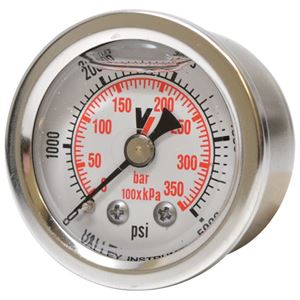

Picture of 5,000 PSI Back Mount 1-1/2" SS Pressure Gauge

5,000 PSI Back Mount 1-1/2" SS Pressure Gauge

SKU: 0240GXB5000

Brand: Valley Industries

$13.92

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Valley Industries Series 40 Dual Scale Industrial 5,000 PSI Back Mount 1-1/2" SS Pressure Gauge. These gauges are designed for use with any medium not corrosive to brass or bronze. Liquid-filled gauges are recommended for reducing shock caused by pressure fluctuations or vibration


Features:
• Dial Range (PSI): 0 – 5,000
• Dial Range (BAR): 0 – 350
• Casing: 1 1/2" Diameter
• Movement: Brass
• Bourdon Tube: Helical in phosphor bronze
• Pointer: Black enameled aluminum
• Dial: White aluminum
• Window: Polycarbonate – temperature compensating
• Case Material: 304 Stainless steel
• Mounting: Back
• Connection Material: Brass
• Connection Size: 1/8" MNPT
• Fill Material: Glycerin (liquid)
• Wetted Parts: Copper alloy
• Weight: 0.25 lbs.



 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.

Customers who bought this item also bought
Picture of O-Ring 2.62 X 20.24 MM

O-Ring 2.62 X 20.24 MM

SKU: 1210.0048.00
O-Ring 2.62 X 20.24 MM
  Price: $0.48
Picture of 2.5" Rubber Foot Pad with Mounting Hardware

2.5" Rubber Foot Pad with Mounting Hardware

SKU: 22.0105

• 2.5" Rubber Foot Pad with Mounting Hardware
• Includes rubber foot, bolt, washer and lock nut
• Rubber Foot: 2.5” OD x 1.0” H
• Weight: 0.30 lbs

  Price: $2.04 Out of stock
Picture of QD Socket, Brass 1/4 x 1/4 NPT-F 5,000 PSI

QD Socket, Brass 1/4 x 1/4 NPT-F 5,000 PSI

SKU: D10001


General Pump D10001 Quick Disconnect Coupler Socket Brass 1/4” x 1/4" NPT-F 5,000 PSI


Features:
• Quick disconnect design
• Brass
• EPDM O-Ring


Specifications:
• Quick Disconnect Coupler: Socket
• Body Material: Brass
• Socket Size: 1/4"
• Thread: 1/4” NPT-F
• Max Temp: 175°
• Max Operating Pressure: 5,000 PSI
• Replaces QCS1FB
• Weight: 0.15 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"
  Price: $2.99
Picture of QD Socket, Brass 1/4 x 1/4 NPT-M 5,000 PSI

QD Socket, Brass 1/4 x 1/4 NPT-M 5,000 PSI

SKU: D10002


General Pump D10002 Quick Disconnect Coupler Socket Brass 1/4” x 1/4" NPT-M 5,000 PSI


Features:
• Quick disconnect design
• Brass
• EPDM O-Ring


Specifications:
• Quick Disconnect Coupler: Socket
• Body Material: Brass
• Socket Size: 1/4"
• Thread: 1/4” NPT-M
• Max Temp: 175°
• Max Operating Pressure: 5,000 PSI
• Replaces QCS1MB
• Weight: 0.17 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"
  Price: $2.94
