Picture of 1,500 PSI Back Mount 1-1/2" SS Pressure Gauge

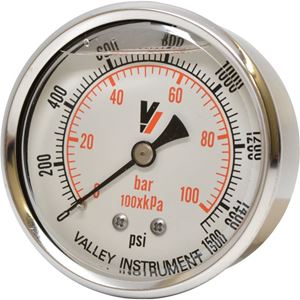

1,500 PSI Back Mount 1-1/2" SS Pressure Gauge

SKU: 0240GXB1500

Brand: Valley Industries

$14.33

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Valley Industries Series 40 Dual Scale Industrial 1,500 PSI Back Mount 1-1/2" SS Pressure Gauge. These gauges are designed for use with any medium not corrosive to brass or bronze. Liquid-filled gauges are recommended for reducing shock caused by pressure fluctuations or vibration


Features:
• Dial Range (PSI): 0 – 1,500
• Dial Range (BAR): 0 – 100
• Casing: 1 1/2" Diameter
• Movement: Brass
• Bourdon Tube: Helical in phosphor bronze
• Pointer: Black enameled aluminum
• Dial: White aluminum
• Window: Polycarbonate – temperature compensating
• Case Material: 304 Stainless steel
• Mounting: Back
• Connection Material: Brass
• Connection Size: 1/8" MNPT
• Fill Material: Glycerin (liquid)
• Wetted Parts: Copper alloy
• Weight: 0.25 lbs.



 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.

Customers who bought this item also bought

1/4" Mini Chrome-Brass Ball Valve F x M, T-Handle

SKU: MVT14FM

Valley 1/4" Mini Chrome-Brass Ball Valve F x M, Butterfly T-Handle


Specifications:
• Chromed brass body, ball & stem
• Teflon® seat & Viton® seals
• Nylon butterfly t-handle
• Rating (CWP): 200 PSI
• Operating Temperature: -4º to 250º F
• Inlet: 1/4" Female NPT
• Outlet: 1/4" Male NPT
• Weight: 3.4 oz

  Price: $6.72

LWS 3525S 2500PSI, 3.5GPM Comet Solid Shaft Pump (Includes Hot Water Seals)

SKU: 31001-00053


Comet LWS 3525 S 2,500 PSI 3.5 GPM Industrial Duty /Carpet Cleaning Triplex 24mm Solid Shaft Plunger Pump (Includes Hot Water Seals)


Features:
• Forged Bronze Connecting Rods with Lifetime Warranty
• Hardened Stainless Steel Piston Guides
• High Efficiency Stainless Steel Check Valves
• Abrasion Proof, Heat Resistant, Industrial Ceramic Plungers
• High Quality Buna-Textile Double-Sealing V-Packings
• Die-Cast, Anodized Aluminum Crankshaft-Fin Design for Optimal Operating Temperature
• High Quality Oversized Ball Bearings
• Optimal Oil Bath for High Speed Operation
• Designed For Belt Drive, Gearbox or Flex Couplers
• Hot water Seals Installed

Specifications:
• Max. Volume: 3.5 GPM
• Max. Discharge Pressure: 2,500 PSI
• Max. Pump Speed: 1,750 RPM
• Shaft Diameter: Ø 24mm
• Shaft Style: Solid Shaft
• Maximum Horsepower Requirements: 7.95 GHP/ 5.9 EHP
• Inlet Connection: 1/2" FNPT
• Outlet Connection:3/8" FNPT
• Pump Head: Brass or Stainless Steel
• Oil Capacity: 11 fl oz
• LWS 3525 S pump (6301.1201.00) with hot water seals
• Replaces Comet # 6301.1208.00
• Weight: 13.4 lb.

  Price: $263.20
