Picture of 5,000 PSI Bottom Mount 2-1/2" SS Pressure Gauge

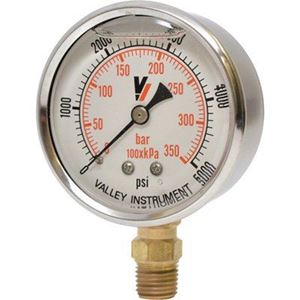

5,000 PSI Bottom Mount 2-1/2" SS Pressure Gauge

SKU: 2140GXB5000

Brand: Valley Industries

$15.44

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Valley Industries Series 40 Dual Scale Industrial 5,000 PSI Bottom Mount 2-1/2" SS Pressure Gauge. These gauges are designed for use with any medium not corrosive to brass or bronze. Liquid-filled gauges are recommended for reducing shock caused by pressure fluctuations or vibration


Features:
• Dial Range (PSI): 0 – 5,000
• Dial Range (BAR): 0 – 350
• Casing: 2 1/2" Diameter
• Movement: Brass
• Bourdon Tube: Helical in phosphor bronze
• Pointer: Black enameled aluminum
• Dial: White aluminum
• Window: Polycarbonate – temperature compensating
• Case Material: 304 Stainless steel
• Mounting: Bottom
• Connection Material: Brass
• Connection Size: 1/4" MNPT
• Fill Material: Glycerin (liquid)
• Wetted Parts: Copper alloy
• Weight: 0.50 lbs.



 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.

Customers who bought this item also bought
Picture of Inlet Washer with Cone Filter 304 SS 50/60 Mesh

Inlet Washer with Cone Filter 304 SS 50/60 Mesh

SKU: 10373


• Inlet Washer with Cone Filter 304SS 50/60 Mesh
• For 3/4 FGH garden hose inlet connectors
• Replaces AR7369

  Price: $0.28
Picture of QD Socket, Brass 3/8 x 3/8 NPT-F 4,000 PSI

QD Socket, Brass 3/8 x 3/8 NPT-F 4,000 PSI

SKU: D10003


General Pump D10003 Quick Disconnect Coupler Socket Brass 3/8” x 3/8" NPT-F 4,000 PSI


Features:
• Quick disconnect design
• Brass
• EPDM O-Ring


Specifications:
• Quick Disconnect Coupler: Socket
• Body Material: Brass
• Socket Size: 3/8"
• Thread: 3/8” NPT-F
• Max Temp: 175°
• Max Operating Pressure: 4,000 PSI
• Replaces QCS2FB
• Weight: 0.20 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"
  Price: $3.62
Picture of QD Plug, Hardened Steel Zinc Plated 3/8 x 3/8 NPT-F 4,000 PSI

QD Plug, Hardened Steel Zinc Plated 3/8 x 3/8 NPT-F 4,000 PSI

SKU: D11008


General Pump D11008 Quick Disconnect Coupler Plug Hardened Steel Zinc Plated 3/8” x 3/8" NPT-F 4,000 PSI


Features:
• Quick disconnect design
• Hardened Steel Zinc Plated


Specifications:
• Quick Disconnect Coupler: Plug
• Body Material: Hardened Steel
• Plug Size: 3/8"
• Thread: 3/8” NPT-F
• Max Temp: 175°
• Max Operating Pressure: 4,000 PSI
• Replaces QCP2FS
• Weight: 0.10 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"
  Price: $0.99
Picture of QD Plug, Hardened Steel Zinc Plated 3/8 x 3/8 NPT-M 4,000 PSI

QD Plug, Hardened Steel Zinc Plated 3/8 x 3/8 NPT-M 4,000 PSI

SKU: D11009


General Pump D11009 Quick Disconnect Coupler Plug Hardened Steel Zinc Plated 3/8” x 3/8" NPT-M 4,000 PSI


Features:
• Quick disconnect design
• Hardened Steel Zinc Plated


Specifications:
• Quick Disconnect Coupler: Plug
• Body Material: Hardened Steel
• Plug Size: 3/8"
• Thread: 3/8” NPT-M
• Max Temp: 175°
• Max Operating Pressure: 4,000 PSI
• Replaces QCP2MS
• Weight: 0.10 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"
  Price: $1.06
