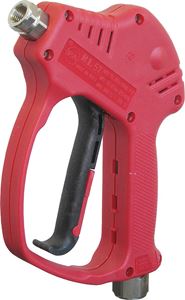

PA RL 56 Compensating Spray Gun 5,650 PSI 8 GPM. New mechanical device with double connecting rods to guarantee less strain when opening and holding

Features
• Covered by shockproof plastic semi-housings
• Sst seat and ball
• Internal structure in brass and Sst
• Ergonomic construction
• Minimum fatigue for trigger opening and use
• New mechanical opening device with double connecting rods
• New trigger design, rotating on a fixed pin to guarantee better mobility and steadiness
• No fluid passage upon trigger release

Specifications
• Rated Pressure: 5,100 PSI
• Permissible Pressure: 5,650 PSI
• Max Flow: 8.0 GPM
• Max Temp: 320° F.
• Inlet: 3/8" Female NPT
• Outlet: 1/4" Female NPT
• Use # 40.0261.00 matching 41” lance
• Weight: 23.70 oz

General Pump 36” Stainless Steel Vented Grip Lance & Nozzle Protector. Rated to 10.5 GPM and 7,250 PSI

Specifications
• Max Pressure: 7,250 PSI
• Max Flow: 10.5 GPM
• Max Temperature: 220° F
• Inlet 1/4" NPT-M
• Outlet 1/4" NPT-F with nozzle protector
• Works best with 1/4" NPT-M nozzles (not included)
• Matching lance for GP YG7207 & PA RL57 spray gun
• Weight: 2.2 lbs

General Pump 25° x #3.0 M-Style Spray Nozzle 1/4” NPT-M

Features
• 5,000 PSI operating pressure
• Made in the USA
• General Pump High Pressure Spray Tips feature a two piece design
• Inserts are through hardened and pressed into a 303 stainless steel rust-resistant body for improved durability
• The contour control nozzle chamber eliminates the need for flow straighteners
• Resistant to most chemical
• Laser marked for clarity and durability

Specifications
• Tip Angle: 25°
• Nozzle Size: 3.0
• Operating Pressure: 5,000 PSI
• Connection: 1/4” NPT-M
• Weight: 0.05 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

General Pump D10078 Quick Disconnect Coupler Plug Stainless Steel 3/8” x 3/8" NPT-F 6,000 PSI

Features:
• Quick disconnect design
• 304 Stainless steel

Specifications:
• Quick Disconnect Coupler: Plug
• Body Material: 304 Stainless steel
• Plug Size: 3/8"
• Thread: 3/8” NPT-F
• Max Temp: 175°
• Max Operating Pressure: 6,000 PSI
• Replaces QCP2FSS
• Weight: 0.09 lb
