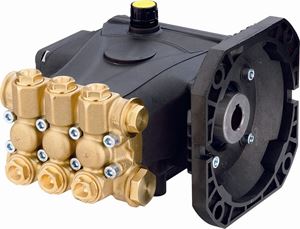

Annovi Reverberi / AR North America RCAM E Version with F8 flange series misting pumps are designed to direct drive on electric NEMA 56 C motors ranging from 0.25 – 2.0 HP. This triplex plunger pump features the latest in design and technology. Life tested over 2,000 hours at maximum performance. The RCAM is a result of our combined 60 years of pumps building experience and expertise

Features
• Designed for heavy duty misting applications
• Latest in design and technology
• New crankcase style
• High strength forged brass manifold for long term use
• NEW ceramic plungers, thicker wall to help prevent thermal shock
• Stainless steel valves
• Side mount valve seat o-rings
• High quality high pressure seals
• NEW low pressure seal with built in scraper
• Two piece piston guides
• NEW connecting rod with 12% more load surface
• Large side cover sight glass
• Oversized bearings
• Rear cover oil drain
• Forged, precision ground crankshaft

Specifications
• Max. Volume: 0.25 GPM
• Max. Discharge Pressure: 1,500 PSI
• Max. Pump Speed: 1,750 RPM
• Shaft Diameter: 5/8” Hollow
• Max. Horsepower Requirements: 0.3 EBHP
• Max. Fluid Temp.: 140° F.
• Inlet Ports (2): 1/2" Female
• Outlet Ports (2): 3/8" Female
• Oil capacity: 9.81 oz
• Weight: 11.0 lb.
