Picture of Suttner ST-230 Safety Relief Valve 3,600 PSI with New Tamper Proof Cap

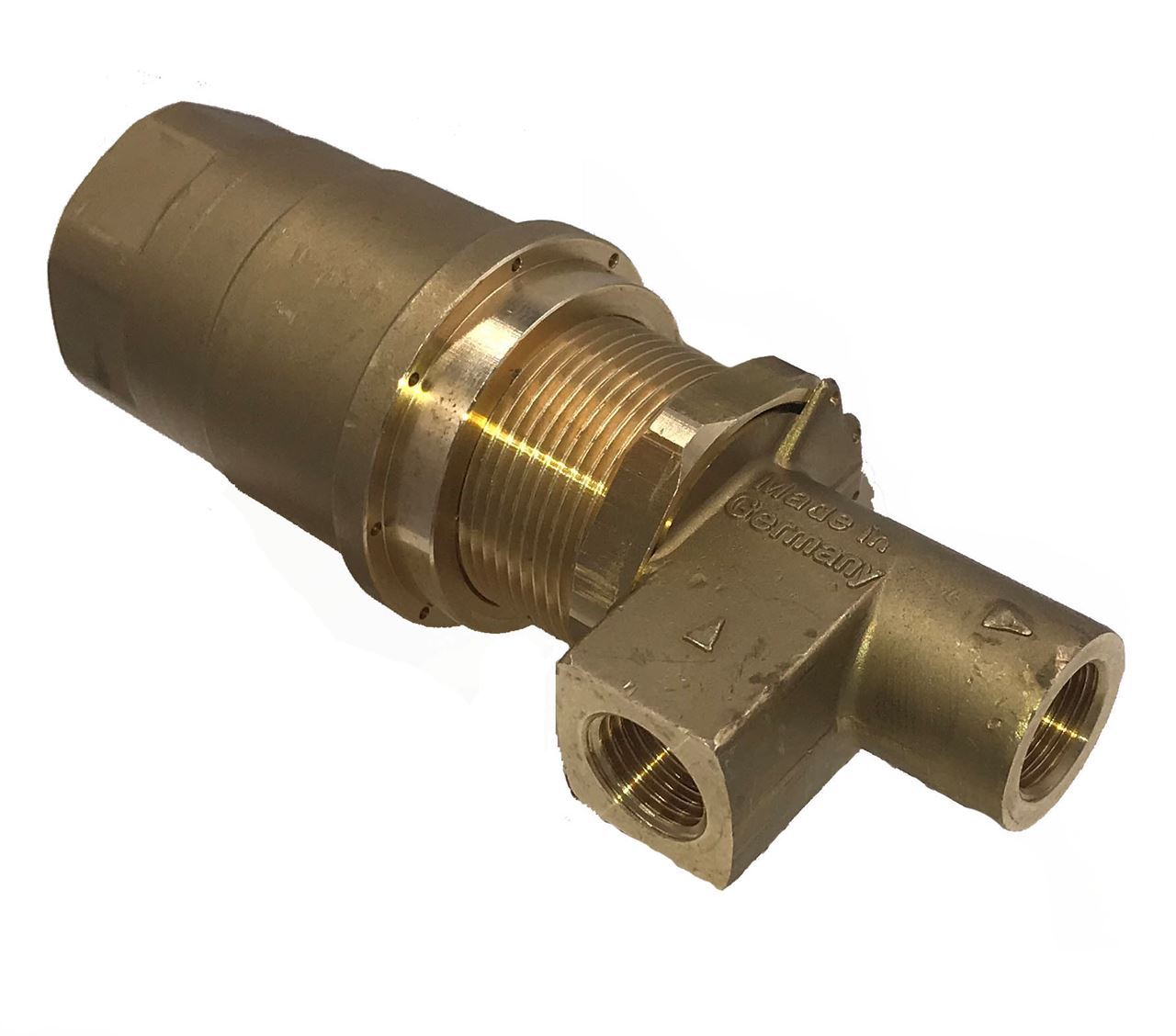

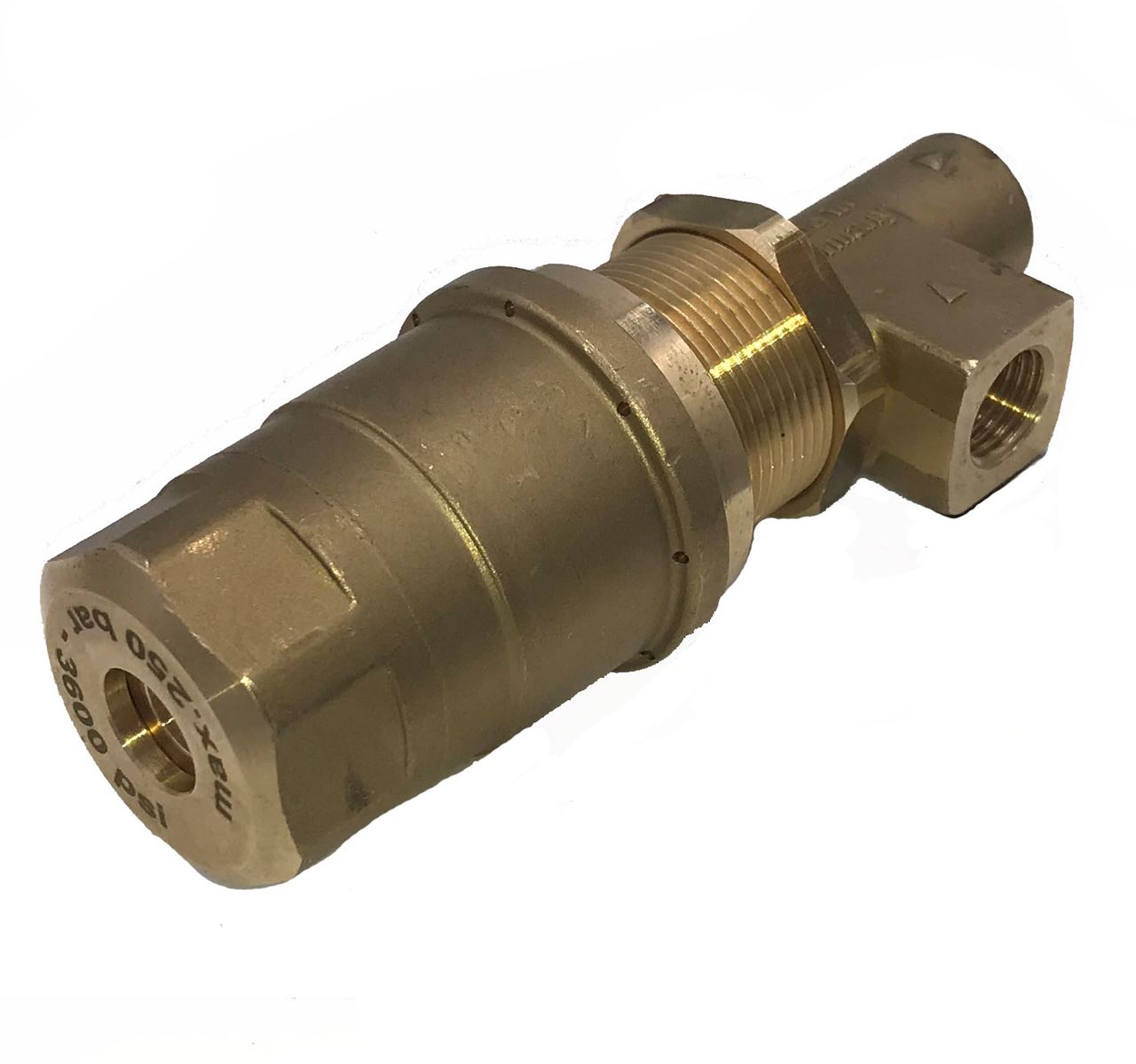

Suttner ST-230 Safety Relief Valve 3,600 PSI with New Tamper Proof Cap

SKU: 200230501

Brand: Suttner America

$40.85

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Suttner ST-230 Safety Relief Valve 3,600 PSI New Design with Tamper Proof Cap. Ideal in-line regulator for multi-gun pumping units on se!f-serve car wash systems. Perfect for pressure washer/steam combination applications and carpet cleaning industry


Features:

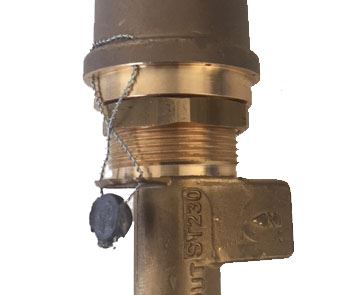

• Newly designed - Small holes in the cap and body so a tamper proof wire can be put through them like shown in the 3rd photo
• Adjustable pressure
• Forged brass housing, stainless steel ball and valve seat
• Special seals for maximum heat and chemical resistance
• Valve member rides on elastomeric cushion, eliminating metal to metal contact, a common cause of regulator failure
• Quickly re-buildable with repair kit. Can be rebuilt without removing from the installation


Specifications:
• Pressure: 500 - 3,500 PSI
• Flow Rate: 8 GPM
• O-Ring: EPDM
• Max Temperature: 200° F
• Inlet: 1/4" FNPT
• Outlet: 1/4” FNPT
• Note: Tamper proof wire and seal are not included
• Weight: 1.10 lbs



 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.

Customers who bought this item also bought
Picture of Suttner ST-230 Safety Relief Valve 1,500 PSI

Suttner ST-230 Safety Relief Valve 1,500 PSI

SKU: 200230520


Suttner ST-230 Safety Relief Valve 1,500 PSI. Ideal in-line regulator for multi-gun pumping units on se!f-serve car wash systems. Perfect for pressure washer/steam combination applications and carpet cleaning industry


Features:
• Adjustable pressure
• Forged brass housing, stainless steel ball and valve seat
• Special seals for maximum heat and chemical resistance
• Valve member rides on elastomeric cushion, eliminating metal to metal contact, a common cause of regulator failure
• Quickly re-buildable with repair kit. Can be rebuilt without removing from the installation


Specifications:
• Pressure: 145 - 1,500 PSI
• Flow Rate: 8 GPM
• O-Ring: EPDM
• Max Temperature: 200° F
• Inlet: 1/4" FNPT
• Outlet: 1/4” FNPT
• Weight: 0.84 lbs

  Price: $40.85
