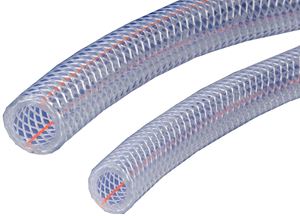

Kuri Tec® CLEARBRAID® K3150 Series RF Standard Wall PVC Food & Beverage Hose. A lightweight standard wall crystal clear Phthalate Free yarn reinforced hose suitable for a wide variety of food and beverage applications

Features::
• 3A - The PVC compound complies with the criteria in 3-A Sanitary Standards for Multiple-Use Plastic Materials, number 20
• FDA - The PVC ingredients used are sanctioned for food contact use under CFR title 21, parts 170-199 or FD&C Act, section 409(h), notifications relating to food contact substance
• NSF - The hose is certified under NSF/ANSI standard 51
• Constructed with Phthalate Free compounds
• NSF-51 certified material
• Crystal clear - allows visual confirmation of product flow
• Longitudinally-reinforced to reduce elongation under pressure
• Light weight
• Self-extinguishing
• Non-marking
• Silicone-free
• Non-conductive
• One-piece lengths
• Resistant to chemicals
• Compound hardness 73 ±3 Shore "A"
• Now Phthalate Free!

Applications::
• Food & beverage dispensing
• Deionized water
• Liquid food products
• Air and water lines
• Powdered food products
• Potable water transfer
• Air breathing lines
• Pneumatic lines
• Packaging machines

Specifications:
• Service Temp. Range: 25º F to 150º F
• Nominal ID: 1”
• Nominal OD: 1.30”
• Length: 100’
• Working Pressure @ 70º F: 125 PSI
• Working Pressure @ 122º F: 75 PSI
• Weight: 30.0 lbs.

Kuri Tec® CLEARBRAID® K3155 Series RF PVC Hose. A lightweight standard wall crystal clear yarn reinforced hose suitable for a wide variety of food and beverage applications

Features:
• Formulated with ingredients in compliance with FDA requirements
• Meets USDA, 3A and CA Prop 65
• Constructed with non-toxic compounds
• Crystal clear – allows visual confirmation of product flow
• Longitudinally-reinforced to reduce elongation under pressure
• Self-extinguishing
• Resistant to chemicals

Specifications:
• Service Temp. Range: 25º F to 150º F
• Nominal ID: 1-1/2”
• Nominal OD: 1.938”
• Length: 50’
• Working Pressure @ 70º F: 100 PSI
• Working Pressure @ 122º F: 50 PSI
• Weight: 32.0 lbs.

Kuri Tec® CLEARBRAID® K3155 Series RF PVC Hose. A lightweight standard wall crystal clear yarn reinforced hose suitable for a wide variety of food and beverage applications

Features:
• Formulated with ingredients in compliance with FDA requirements
• Meets USDA, 3A and CA Prop 65
• Constructed with non-toxic compounds
• Crystal clear – allows visual confirmation of product flow
• Longitudinally-reinforced to reduce elongation under pressure
• Self-extinguishing
• Resistant to chemicals

Specifications:
• Service Temp. Range: 25º F to 150º F
• Nominal ID: 1/4”
• Nominal OD: 0.438”
• Length: 300’
• Working Pressure @ 70º F: 250 PSI
• Working Pressure @ 122º F: 150 PSI
• Weight: 17.0 lbs.
