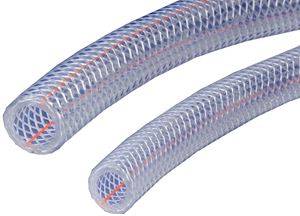

Picture of 3/8" x 100' CLEARBRAID® K3150 RF PVC Food & Beverage Hose

3/8" x 100' CLEARBRAID® K3150 RF PVC Food & Beverage Hose

SKU: K3150-06X100

Brand: Kuriyama of America, Inc.

$78.20

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description

Kuri Tec® CLEARBRAID® K3150 Series RF Standard Wall PVC Food & Beverage Hose. A lightweight standard wall crystal clear Phthalate Free yarn reinforced hose suitable for a wide variety of food and beverage applications

Features::
• 3A - The PVC compound complies with the criteria in 3-A Sanitary Standards for Multiple-Use Plastic Materials, number 20
• FDA - The PVC ingredients used are sanctioned for food contact use under CFR title 21, parts 170-199 or FD&C Act, section 409(h), notifications relating to food contact substance
• NSF - The hose is certified under NSF/ANSI standard 51
• Constructed with Phthalate Free compounds
• NSF-51 certified material
• Crystal clear - allows visual confirmation of product flow
• Longitudinally-reinforced to reduce elongation under pressure
• Light weight
• Self-extinguishing
• Non-marking
• Silicone-free
• Non-conductive
• One-piece lengths
• Resistant to chemicals
• Compound hardness 73 ±3 Shore "A"
• Now Phthalate Free!

Applications::
• Food & beverage dispensing
• Deionized water
• Liquid food products
• Air and water lines
• Powdered food products
• Potable water transfer
• Air breathing lines
• Pneumatic lines
• Packaging machines

Specifications:
• Service Temp. Range: 25º F to 150º F
• Nominal ID: 3/8”
• Nominal OD: 0.594”
• Length: 100’
• Working Pressure @ 70º F: 225 PSI
• Working Pressure @ 122º F: 125 PSI
• Weight: 9.0 lbs.



 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
