1/4” F Suttner #8.0 ST-49 Turbo Nozzle Driver With 4 Rear jet inserts and rated to 5,076 PSI

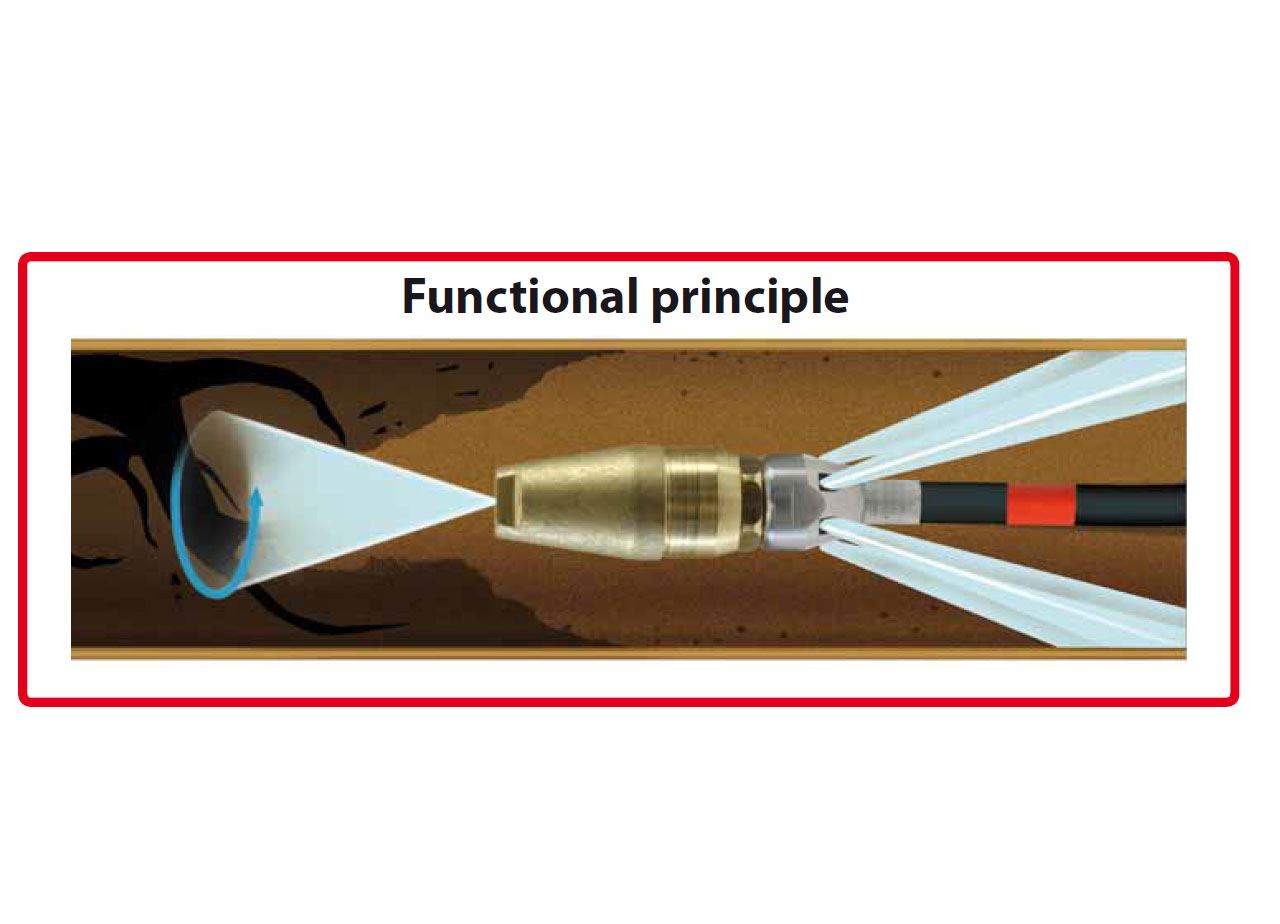

Features:• High Quality, German engineered components• Turbo nozzle driver and ST-356 or ST-456 turbo nozzle are the perfect combination for drilling through blockages with its rotary forward facing jet• Driven up to the blockage by 4 powerful rear facing hardened stainless steel nozzles the high speed forward facing spinning jet creates a cone shape that has enough cutting force to blast through roots and scale• It is also ideal for cutting up and shredding tissue and fat deposits

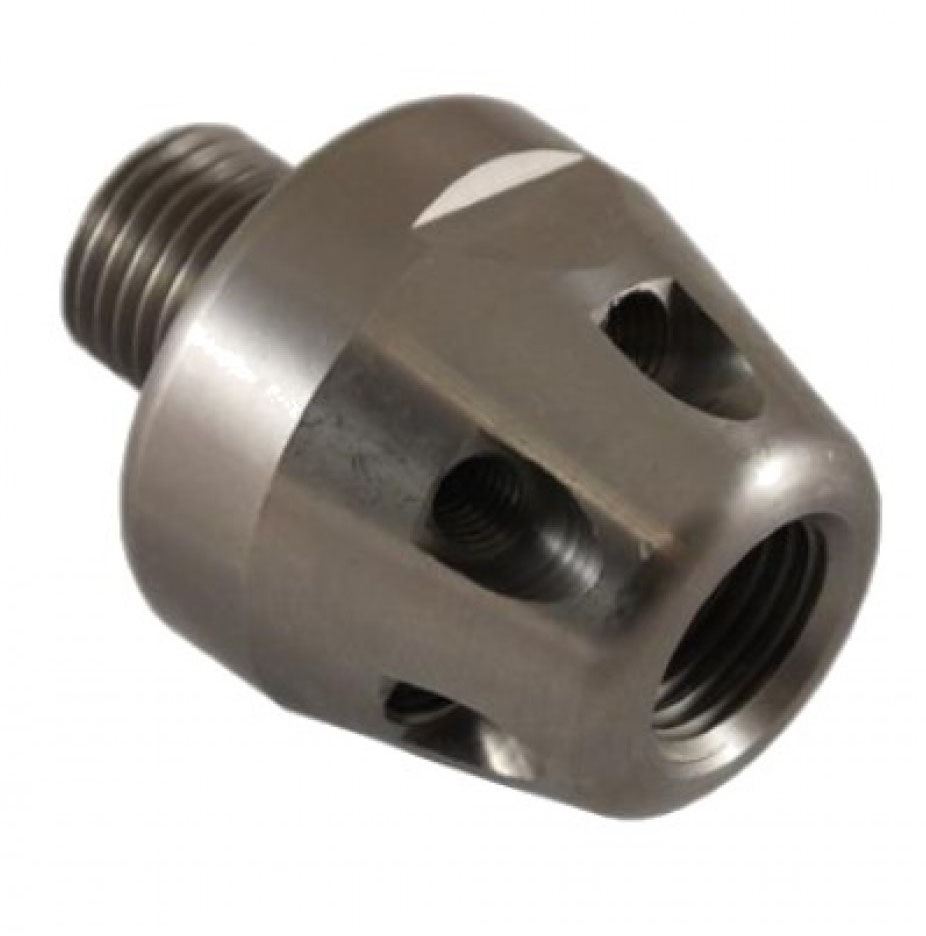

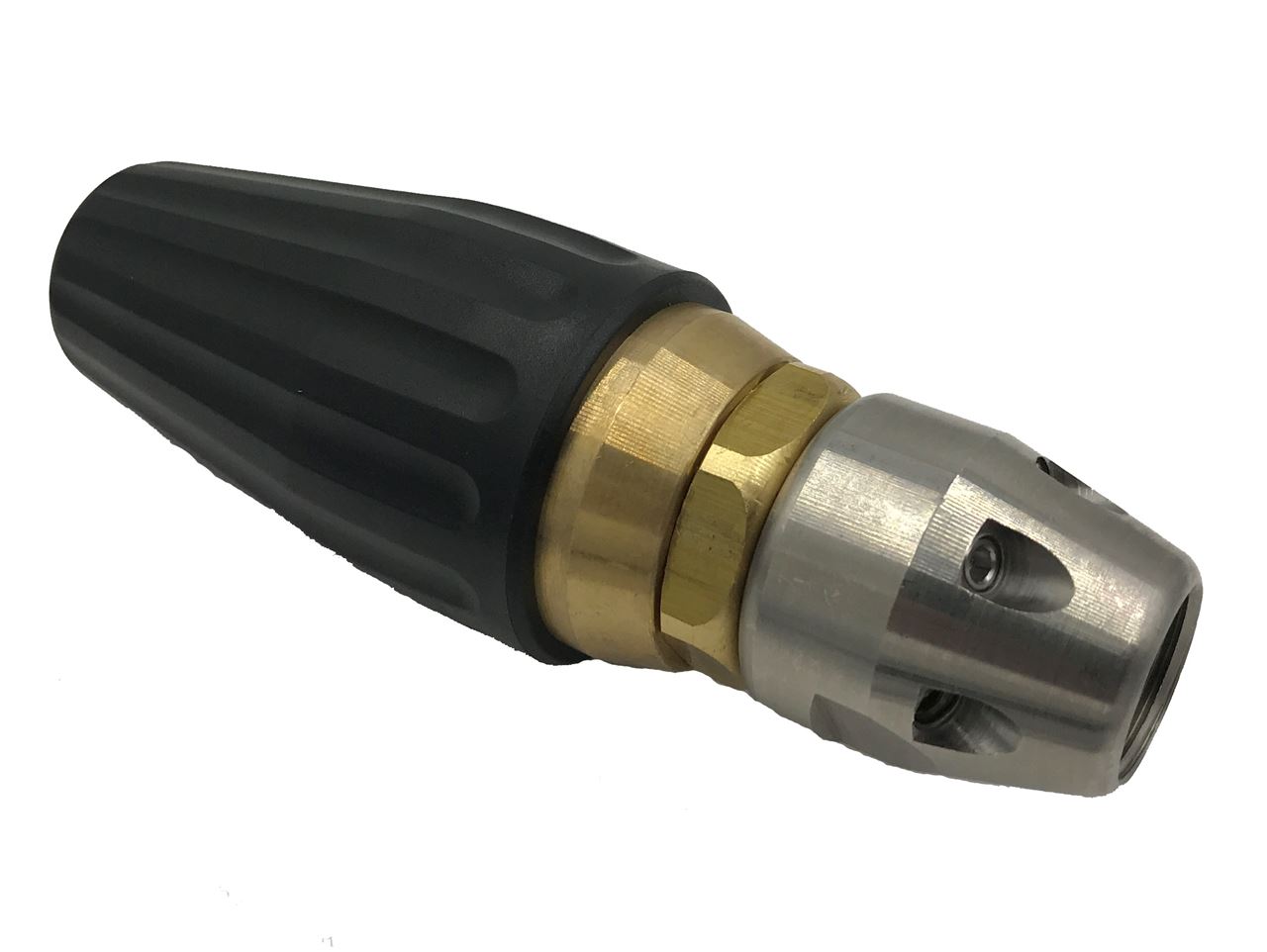

Note:• Above shown item (1st Picture) is for the driver portion only• You will have to add the corresponding ST-357 or ST-456 turbo nozzle to complete the driver (2nd Picture)
Specifications:• Material: Hardened stainless steel• Maximum Pressure: 5,076 PSI• Inlet (Sewer Hose): 1/4” Female• Outlet (Turbo Nozzle): 1/4” Male• Nozzle Size: # 8.0 (With a #3.0 ST-357 or ST-456 nozzle)• Note: Requires #3.0 ST-357 or ST-456 1/4” turbo nozzle (Not Included) • Weight: 0.20 lbs
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Features• Forward jet breaks up clogs & debris• 3 Backward jets drive nozzle forward and flushes and removes debris from sides of line• Corrosion resistant stainless steel construction
Specifications • Inlet: 1/4” FPT• Nozzle Size: # 5.5• Material: Stainless steel• Maximum Pressure: 4,200 PSI• Max. Fluid Temperature: 300º F• Weight: 0.6 oz.
Construction:• Inner Tube: Yellow seamless thermoplastic• Reinforcement: High tensile double synthetic fiber braids• Cover: Abrasion resistant polyether-urethane
Features: • Materials: Constructed to provide rugged and reliable service under the most severe and demanding conditions• Yellow Color Tube: Assures the user that they are using a WASTEC designated Piranha® Hose Product• Seamless Thermoplastic Tube: Provides maximum resistance to hydrolysis• High Tensile Double Synthetic Fiber Braids: Contributes to low volumetric expansion and eliminates loss of strength from moisture absorption• Abrasion Resistant Polyether-Urethane: Polyurethane cover provides exceptional cut, abrasion and fungus resistance• Pressure Testing: All Piranha® factory-assembled hoses are 100% pressure tested
Specifications:• Service Temp. Range: -40º F to +160º F• Hose ID: 1/4”• Assembled Length: 300’• Male NPT Fittings: 1/4 - 18• Color: Red• Max. Working Pressure: 5,000 PSI • Weight: 20.5 lbs.
Suttner ST-357 Turbo / Rotating #3.0 Nozzle is rated for up to 3,625 PSI. The increased tearing action of the rotating spray is ideal for hard surface applications, such as concrete, graffiti cleaning or caked on mud on heavy equipment
Features• Increases cleaning efficiency as much as 200%• The 0° rotation creates a cleaning and tearing action• Ideal for hard surfaces• Improved materials for longer life
Specifications • Nozzle Size # 3.0• Max PSI: 3,625• Max Temp.: 190° F• Inlet: 1/4" Female NPT• NOTE: All rotating nozzles should be started pointing downward• Weight: 0.68 lbs
Suttner ST-357 Turbo / Rotating #4.0 Nozzle is rated for up to 3,625 PSI. The increased tearing action of the rotating spray is ideal for hard surface applications, such as concrete, graffiti cleaning or caked on mud on heavy equipment
Specifications • Nozzle Size # 4.0 • Max PSI: 3,625• Max Temp.: 190° F• Inlet: 1/4" Female NPT• NOTE: All rotating nozzles should be started pointing downward• Weight: 0.68 lbs
Specifications • Nozzle Size # 3.0• Max PSI: 5,070• Max Temp.: 212° F• Inlet: 1/4" Female NPT• NOTE: All rotating nozzles should be started pointing downward• Weight: 0.90 lbs
