3/8” F Suttner #9.0 ST-49 Turbo Nozzle Driver With 6 Rear jet inserts and rated to 5,076 PSI

Features:
• High Quality, German engineered components
• Turbo nozzle driver and ST-356 or ST-456 turbo nozzle are the perfect combination for drilling through blockages with its rotary forward facing jet
• Driven up to the blockage by 6 powerful rear facing hardened stainless steel nozzles the high speed forward facing spinning jet creates a cone shape that has enough cutting force to blast through roots and scale
• It is also ideal for cutting up and shredding tissue and fat deposits

Note:
• Above shown item (1st Picture) is for the driver portion only
• You will have to add the corresponding ST-357 or ST-456 turbo nozzle to complete the driver (2nd Picture)

Specifications:
• Material: Hardened stainless steel
• Maximum Pressure: 5,076 PSI
• Inlet (Sewer Hose): 3/8” Female
• Outlet (Turbo Nozzle): 1/4” Male
• Nozzle Size: # 9.0 (With a #3.0 ST-357 or ST-456 nozzle)
• Note: Requires #3.0 ST-357 or ST-456 1/4” turbo nozzle (Not Included)
• Weight: 0.20 lbs

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

3/8” Suttner #12.0 ST-49 Milling Sewer Cleaning Nozzle. With 3 Front and 6 Rear jets and rated to 5,076 PSI

Features:
• High Quality, German engineered components
• With its 3 very strong concentrated forward jets and the sharp cutting edges the milling type nozzles will tear through almost any kind of blockage
• The sharp edges cut, break and penetrate through every kind of blockage
• Made out of wear-resistant, hardened stainless steel
• Centric jet is plugged
• 3 Lateral front jets with nozzle inserts
• 6 Rear jets with nozzle inserts
• Nozzle is equipped with replaceable hardened stainless steel nozzle inserts
• Due to this feature the efficiency is considerably higher compared with those nozzles with drilled holes and the service life is several times longer

Applications:
• Penetration of completely clogged pipes
• Opening of root masses
• Opening of frozen pipelines
• Hydraulic thrust boring flushing operations

Specifications:
• Nozzle Size: # 12.0
• Material: Stainless steel
• Maximum Pressure: 5,076 PSI
• Inlet: 3/8” Female
• Outside Diameter (O.D.): 1.11”
• Weight: 4.0 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

1/2” F Suttner #12.0 ST-49 Turbo Nozzle Driver With 6 Rear jet inserts and rated to 7,252 PSI

Features:
• High Quality, German engineered components
• Turbo nozzle driver and ST-457 or ST-559 turbo nozzle are the perfect combination for drilling through blockages with its rotary forward facing jet
• Driven up to the blockage by 6 powerful rear facing hardened stainless steel nozzles the high speed forward facing spinning jet creates a cone shape that has enough cutting force to blast through roots and scale
• It is also ideal for cutting up and shredding tissue and fat deposits

Note:
• Above shown item (1st Picture) is for the driver portion only
• You will have to add the corresponding ST-457 or ST-559 turbo nozzle to complete the driver (2nd Picture)

Specifications:
• Material: Hardened stainless steel
• Maximum Pressure: 7,252 PSI
• Inlet (Sewer Hose): 1/2” Female
• Outlet (Turbo Nozzle): 1/4” Male
• Nozzle Size: # 12.0 (With a #4.5 ST-457 or #5.0 ST-559 nozzle)
• Note: Requires #4.5 ST-457 or #5.0 ST-559 1/4” turbo nozzle (Not Included)
• Weight: 0.30 lbs

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

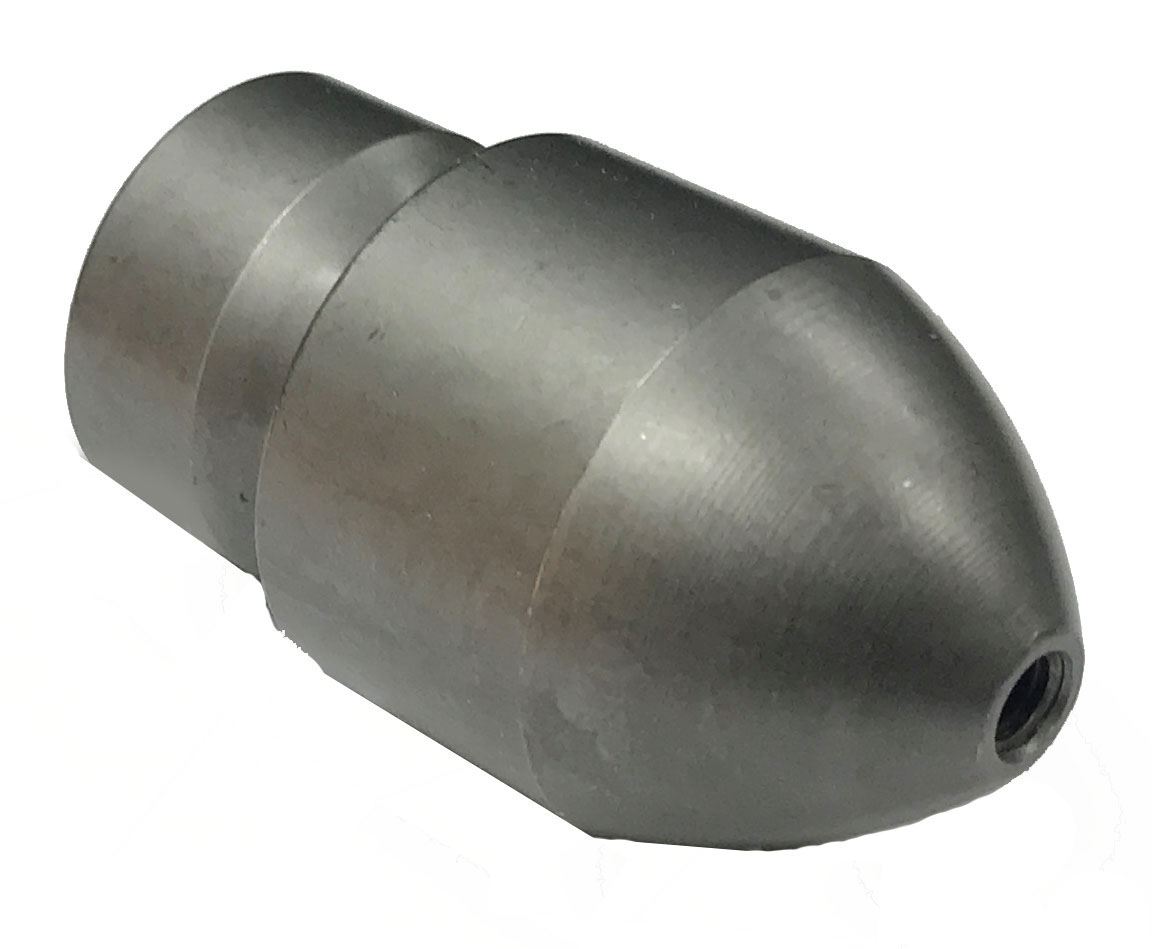

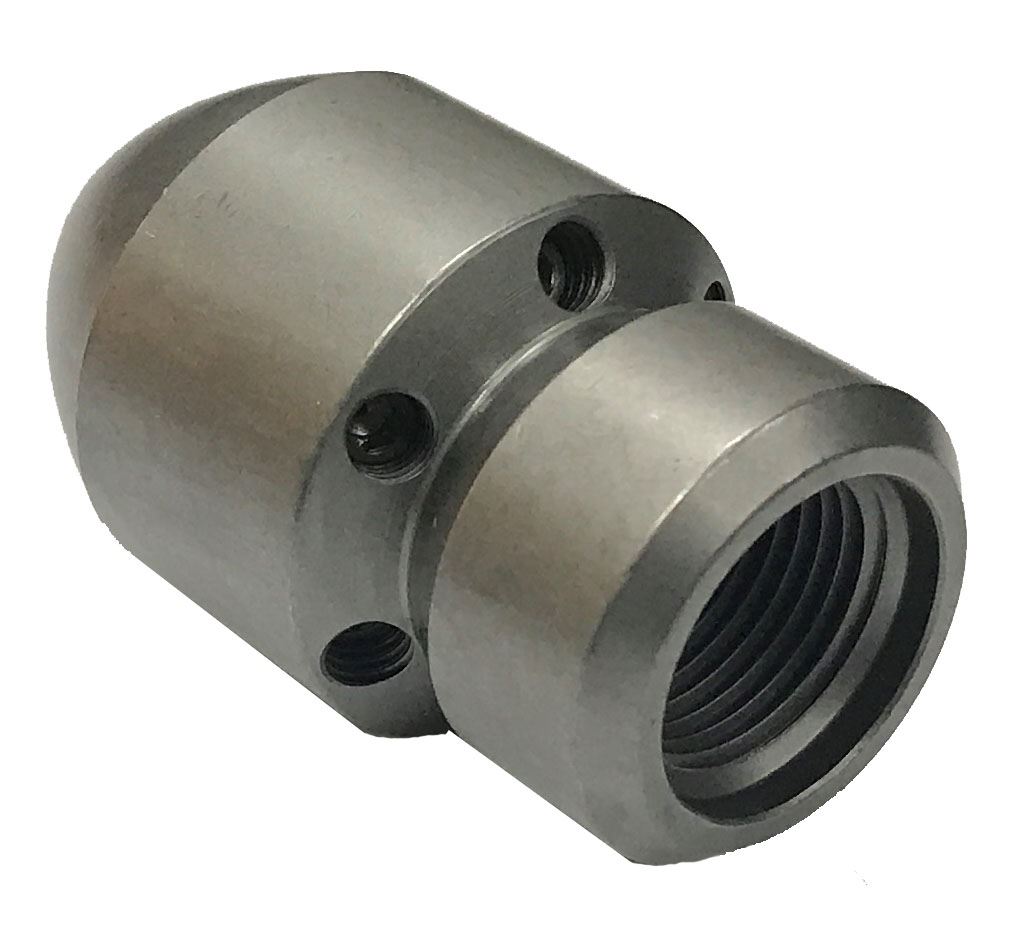

3/8” Suttner #12.0 ST-49 Bullet Sewer Cleaning Nozzle. With 1 Front and 4 Rear jet inserts and rated to 7,252 PSI

Features:
• High Quality, German engineered components
• Made out of wear-resistant, hardened stainless steel
• 1 Front jet with nozzle insert
• 4 Rear jets with nozzle inserts, angle of jet is 30°
• Sturdy wall thickness, long service life and a minimum of wear and tear
• All nozzles are provided with hardened stainless steel inserts
• Due to this feature the efficiency is considerably higher compared with those nozzles with drilled holes and the service life is several times longer

Applications:
• Suitable for removal of sludge deposits
• Desilting of pipes
• Opening of frozen pipelines

Specifications:
• Nozzle Size: # 12.0
• Material: Stainless steel
• Maximum Pressure: 7,252 PSI
• Inlet: 3/8” Female
• Outside Diameter (O.D.): 1.18”
• Weight: 5.8 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart
