Features:
• Suitable for self service car wash applications
• Light weight
• Highly flexible
• True non-marking, abrasion and chemical resistant
• Easy to clean
• Matte finish, feels like rubber

MADE IN USA
Every foot of ProPulse™ CLEANSTREAM™ is designed, engineered and manufactured in the USA, assembled using imported and/or domestic end fittings

Hose Construction
• Inner Tube: Water and chemical resistant polyester and polyurethane
• Reinforcement: One layer of high tensile steel braid
• Cover: Matte finish TPU provides a lower coefficient of friction
• Laminated: Bonded construction for long life

Specifications:
• Hose Inner Diameter: 3/8" ID
• Length: 15’
• Working Pressure: 4,000 PSI
• Burst Pressure: 12,000 PSI
• Color: Blue
• Max. Water Temperature: 140° F.
• Ends: 3/8" Male NPT (Solid)
• Black bend restrictor on one end
• Weight 2.90 lbs

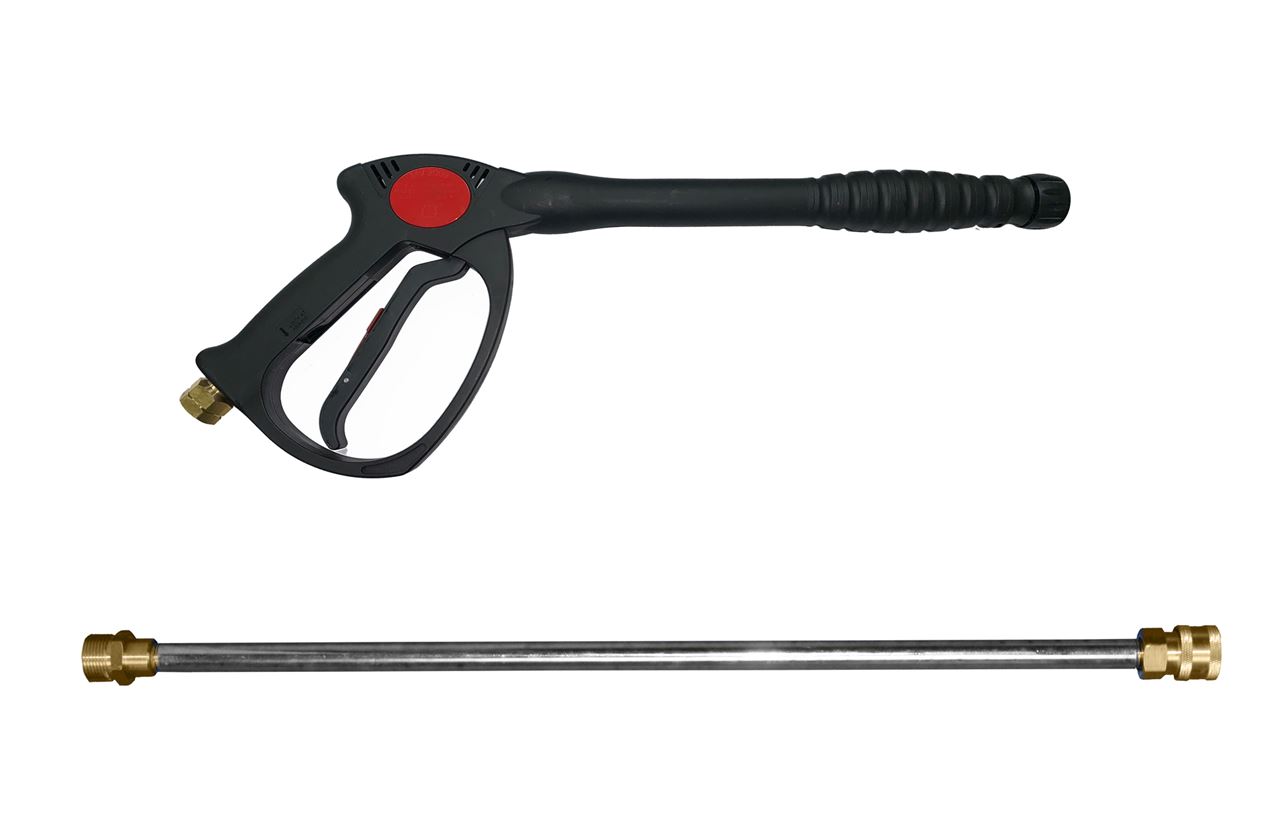

Medium Duty 4,000 PSI Pressure Washer Trigger Gun and Lance Kit. Includes all the components necessary to assemble the wand

Kit Components:

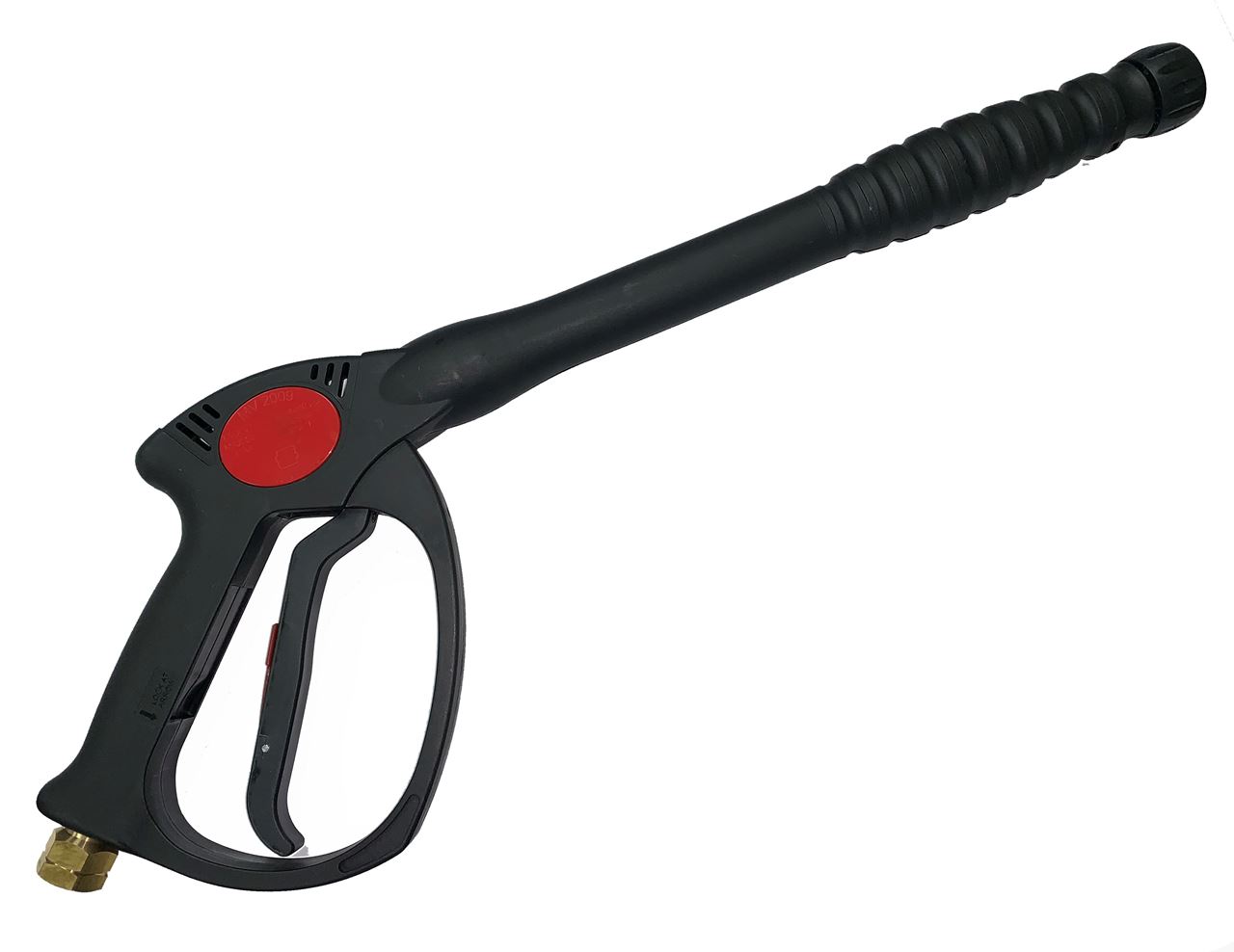

• AR 5101 Medium-Duty 4,000 PSI trigger gun
• Suttner ST-007 36” Nickel Plated Molded Grip Lance 6,000 PS
• General Pump brass 5,000 PSI quick coupler socket
• General Pump zinc plated 4,000 PSI steel quick coupler plug
• Teflon Tape: 1 Roll

Specifications:
• Max Pressure: 4,000 PSI
• Max Flow: 7.0 GPM
• Max Temperature: 300° F
• Trigger Gun Inlet: 3/8" Male QC plug
• Lance Outlet: 1/4" Female QC socket (accepts QC color coded nozzles)
• Note: Assembly is required
• Weight: 3.10 lbs

General Pump #3.0 Quick Connect (Q) Spray Nozzle 5-Pack

Features
• 5,000 PSI operating pressure
• Made in the USA
• Ceramic insert is resistant to wear
• Through-hardened stainless steel orifices offer superior wear resistance compared to standard case hardened nozzles
• Stainless steel housing resists cracking and wear
• Resistant to most chemical
• Large color coded tip protector on Q-type nozzles permits rapid identification of fan angle
• Laser marked for clarity and durability

Specifications
• Nozzle Size: 3.0
• Contents: One each of a 0º, 15º, 25º, 40º and 65º #40 soap nozzle
• Operating Pressure: 5,000 PSI
• Connection: 1/4” QC Plug
• Weight: 0.50 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

ProPulse, a Schieffer Company, backed by more than 90 years of innovation

Features:
• Assembled in USA with high quality components
• Suitable for commercial pressure cleaning applications
• Rubber construction throughout
• Reinforcement: One layer of high tensile braided steel – R1 Rating
• Cover: Smooth, “Mark-Less” with printed lay line
• Burst (Minimum): 3:1 working pressure
• Impulse Life: 200,000+

Specifications:
• Hose Inner Diameter: 3/8" ID
• Length: 25’
• Working (Maximum): Up to 4,000 PSI
• Burst (Minimum): 12,000 PSI
• Color: Blue
• Maximum Temperature: 250° F.
• Ends: 3/8" MPT (1 solid & 1 swivel) )
• Permanent heavy duty black bend restrictors on both ends.
• Weight 5.5 lbs
