Picture of Delavan Diaphragm Pump 12 V, 60 PSI, 2.1 GPM I-Series

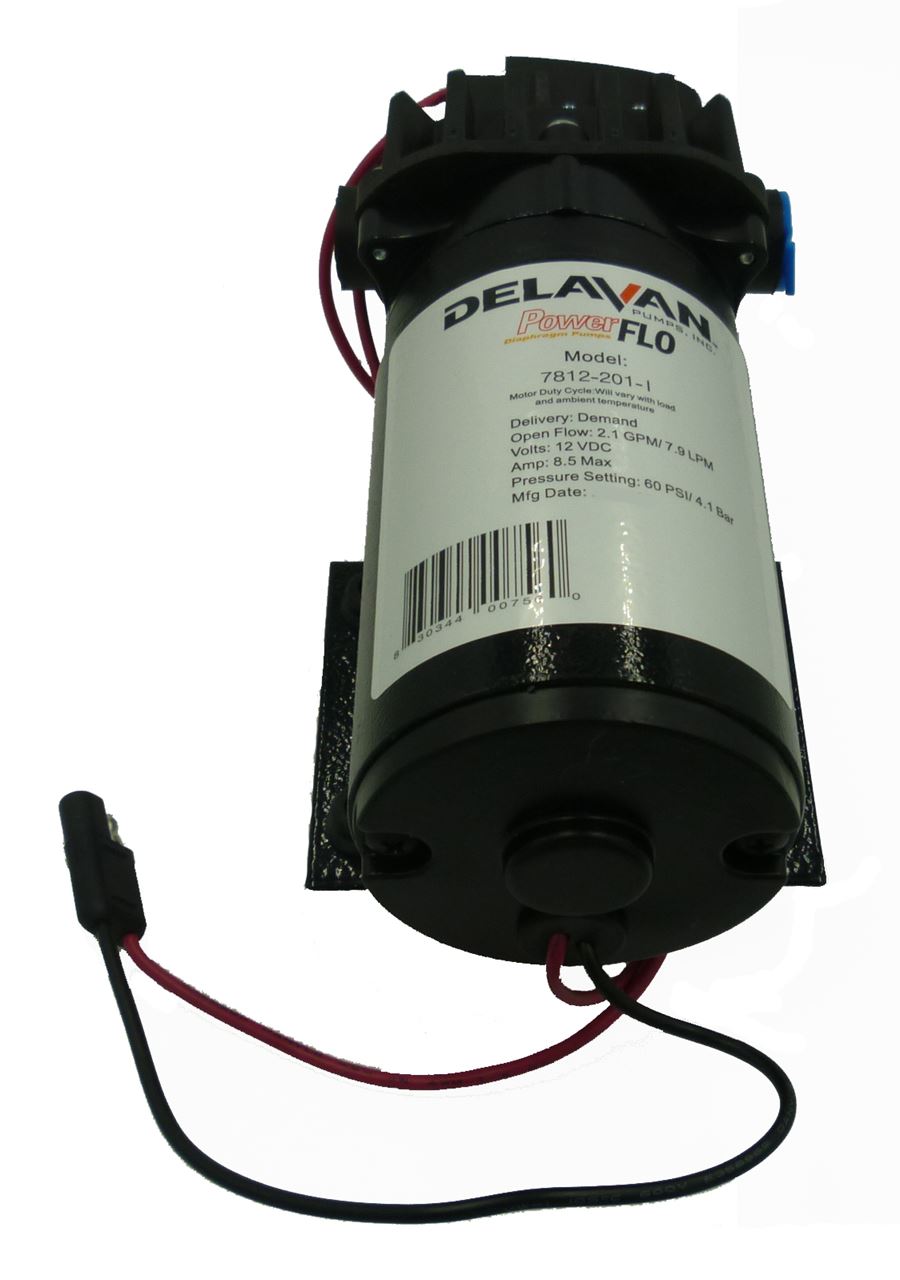

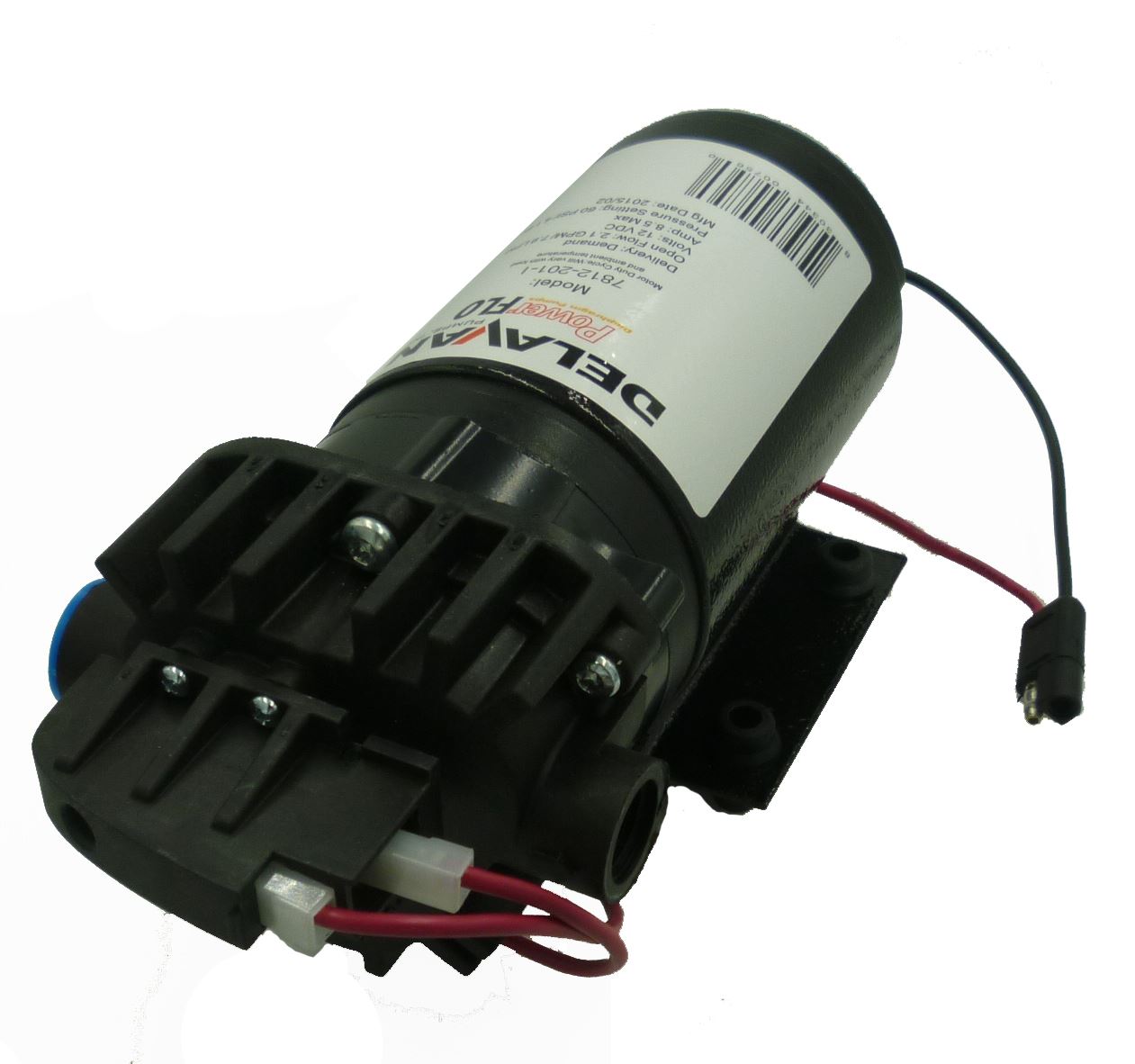

Delavan Diaphragm Pump 12 V, 60 PSI, 2.1 GPM I-Series

SKU: 7812-201-SBI

Brand: Delavan Fluid Power

$59.78

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Delavan PowerFLO™ 7812 I-Series 2.1 GPM 60 PSI Diaphragm Pump with 3/8” FNPT Ports. Demand Switch – Operates only when liquid flow is required


Features:
• 100% Factory tested
• 2 Year warranty from date of purchase


Motor:
• Type: 12 VDC permanent magnet, totally enclosed, non-ventilated
• Leads: 14 AWG, 6” long with 2-pin connector
• Max Amps: 8.5
• Duty Cycle: See Heat Rise graph


Materials of Construction:
• Motor Shell: Coated Steel
• Housing: Polypropylene
• Valves: Santoprene
• Diaphragm: Santoprene
• Fasteners: Zinc plated


Pump:
• Demand Switch – Operates only when liquid flow is required
• Type: 3-chamber positive displacement
• Capable of being run dry
• Excellent self-priming capability
• Liquid Temperature: 140°F Max.
• Priming Capabilities: 14’
• Max. Flow: 2.1 GPM
• Pressure Shut-Off: 60 PSI
• Inlet/Outlet Ports: 3/8” FNPT
• Packaging: Small box
• Weight: 6.0 lbs

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
