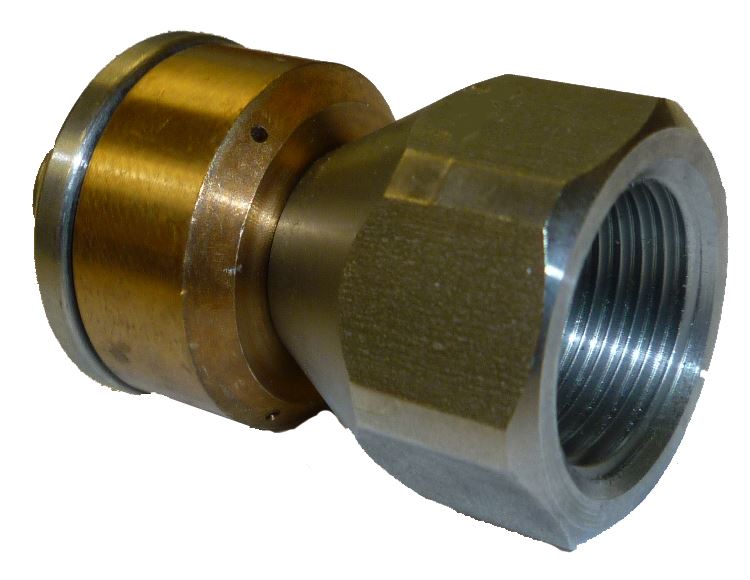

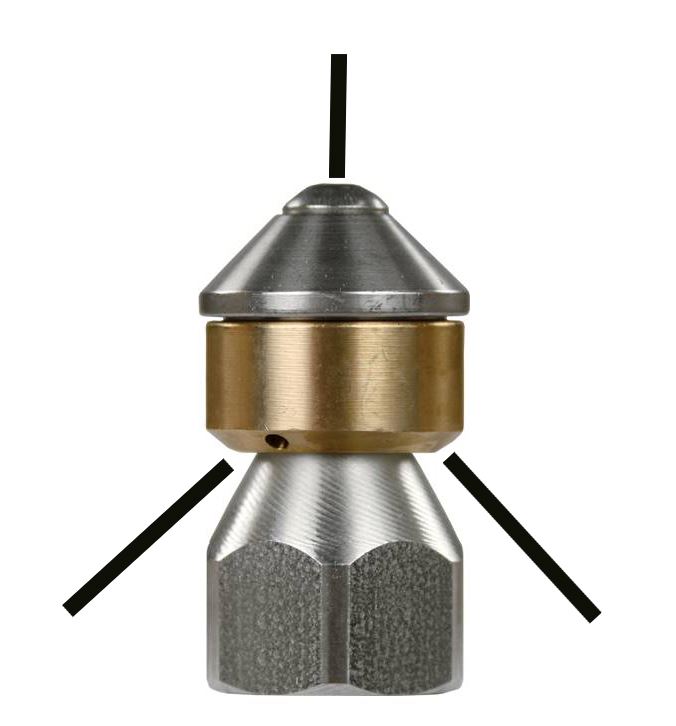

3/8” Suttner ST-49 Stainless Steel Rotating Sewer Jetter Nozzle, # 10.0. With centric front jet and 3 orifices angled backwards and to the side. Slides easily into drain pipes and sewer lines. Front jet for penetrating of clogged pipes and frozen pipelines and rear jets for flushing debris or clearing sides of pipes while attached to sewer hose

Features
• High Quality, German engineered components
• 1 Centric front jet breaks up clogs & debris
• 3 Backward ports drive the nozzle forward and flush debris
• Rotating style adds extra agitation and surface cleaning
• Corrosion resistant stainless steel and brass construction

Specifications
• Inlet: 3/8” Female
• Nozzle Size: # 10.0
• Material: Stainless steel & brass
• Maximum Pressure: 4,000 PSI
• Outside Diameter (O.D.): .94”
• Weight: .15 lb

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

3/8” Suttner ST-49 Stainless Steel Rotating Sewer Jetter Nozzle, # 10.0. Does not have a forward spraying orifice, but has 3 orifices angled backwards and to the side. Slides easily into drain pipes and sewer lines flushing debris or clearing frozen pipes while attached to sewer hose. Better for removing build up from the walls of the pipe or tube.

Features
• High Quality, German engineered components
• 3 Backward ports drive the nozzle forward and flush debris
• Rotating style adds extra agitation and surface cleaning
• Corrosion resistant stainless steel and brass construction

Specifications
• Inlet: 3/8” Female
• Nozzle Size: # 10.0
• Material: Stainless steel & brass
• Maximum Pressure: 4,000 PSI
• Outside Diameter (O.D.): .94”
• Weight: .15 lb

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

3/8” Suttner ST-49 Stainless Steel Rotating Sewer Jetter Nozzle, # 18.0. With centric front jet and 3 orifices angled backwards and to the side. Slides easily into drain pipes and sewer lines. Front jet for penetrating of clogged pipes and frozen pipelines and rear jets for flushing debris or clearing sides of pipes while attached to sewer hose

Features
• High Quality, German engineered components
• 1 Centric front jet breaks up clogs & debris
• 3 Backward ports drive the nozzle forward and flush debris
• Rotating style adds extra agitation and surface cleaning
• Corrosion resistant stainless steel and brass construction

Specifications
• Inlet: 3/8” Female
• Nozzle Size: # 18.0
• Material: Stainless steel & brass
• Maximum Pressure: 4,000 PSI
• Outside Diameter (O.D.): .94”
• Weight: .15 lb

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

3/8” Suttner #15.0 ST-49 Milling Sewer Cleaning Nozzle. With 1 Centric, 3 Front and 6 Rear jets and rated to 5,076 PSI

Features:
• High Quality, German engineered components
• With its 4 very strong concentrated forward jets and the sharp cutting edges the milling type nozzles will tear through almost any kind of blockage
• The sharp edges cut, break and penetrate through every kind of blockage
• Made out of wear-resistant, hardened stainless steel
• 1 Centric front jet with nozzle insert
• 3 Lateral front jets with nozzle inserts
• 6 Rear jets with nozzle inserts
• Nozzle is equipped with replaceable hardened stainless steel nozzle inserts
• Due to this feature the efficiency is considerably higher compared with those nozzles with drilled holes and the service life is several times longer

Applications:
• Penetration of completely clogged pipes
• Opening of root masses
• Opening of frozen pipelines
• Hydraulic thrust boring flushing operations

Specifications:
• Nozzle Size: # 15.0
• Material: Stainless steel
• Maximum Pressure: 5,076 PSI
• Inlet: 3/8” Female
• Outside Diameter (O.D.): 1.11”
• Weight: 4.0 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart
