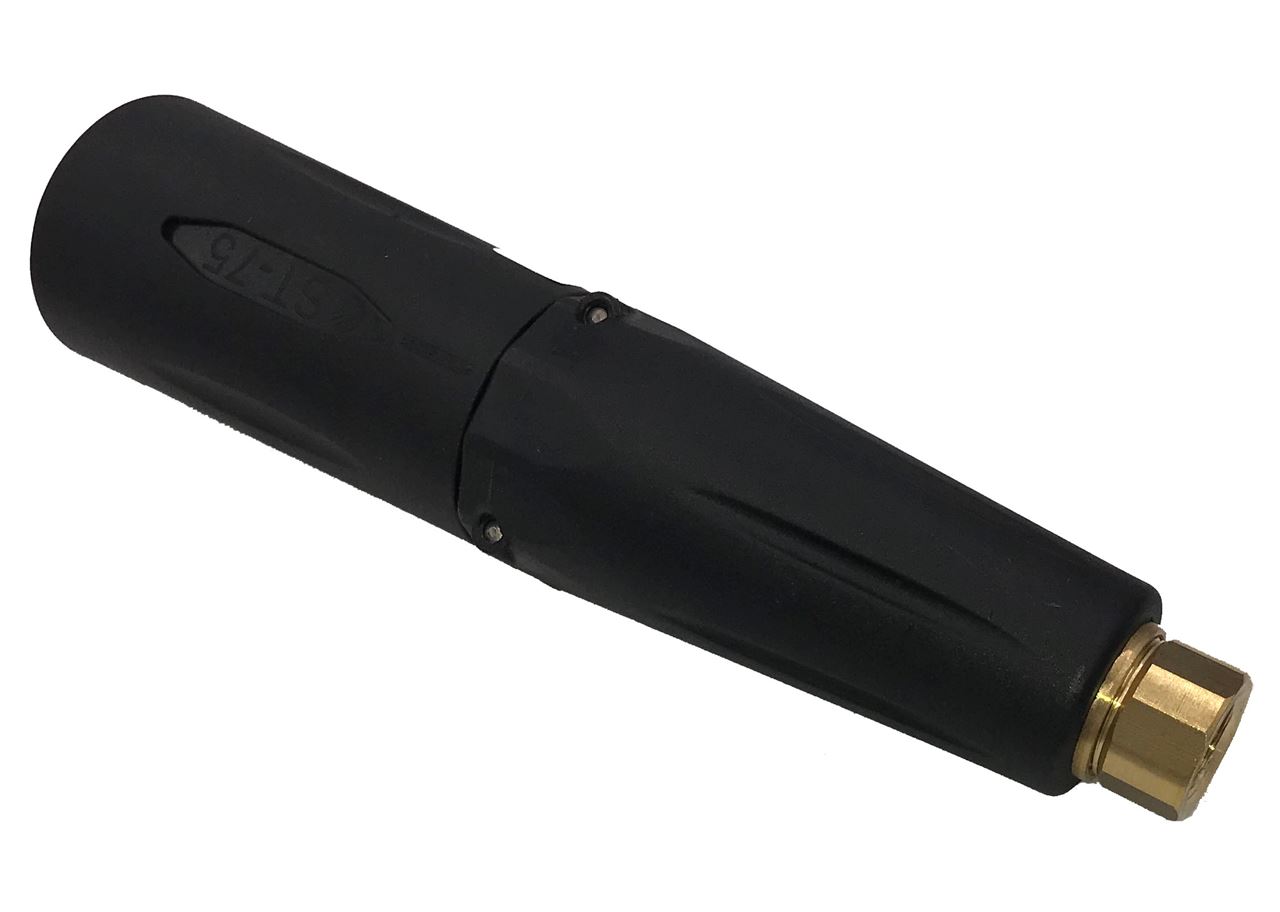

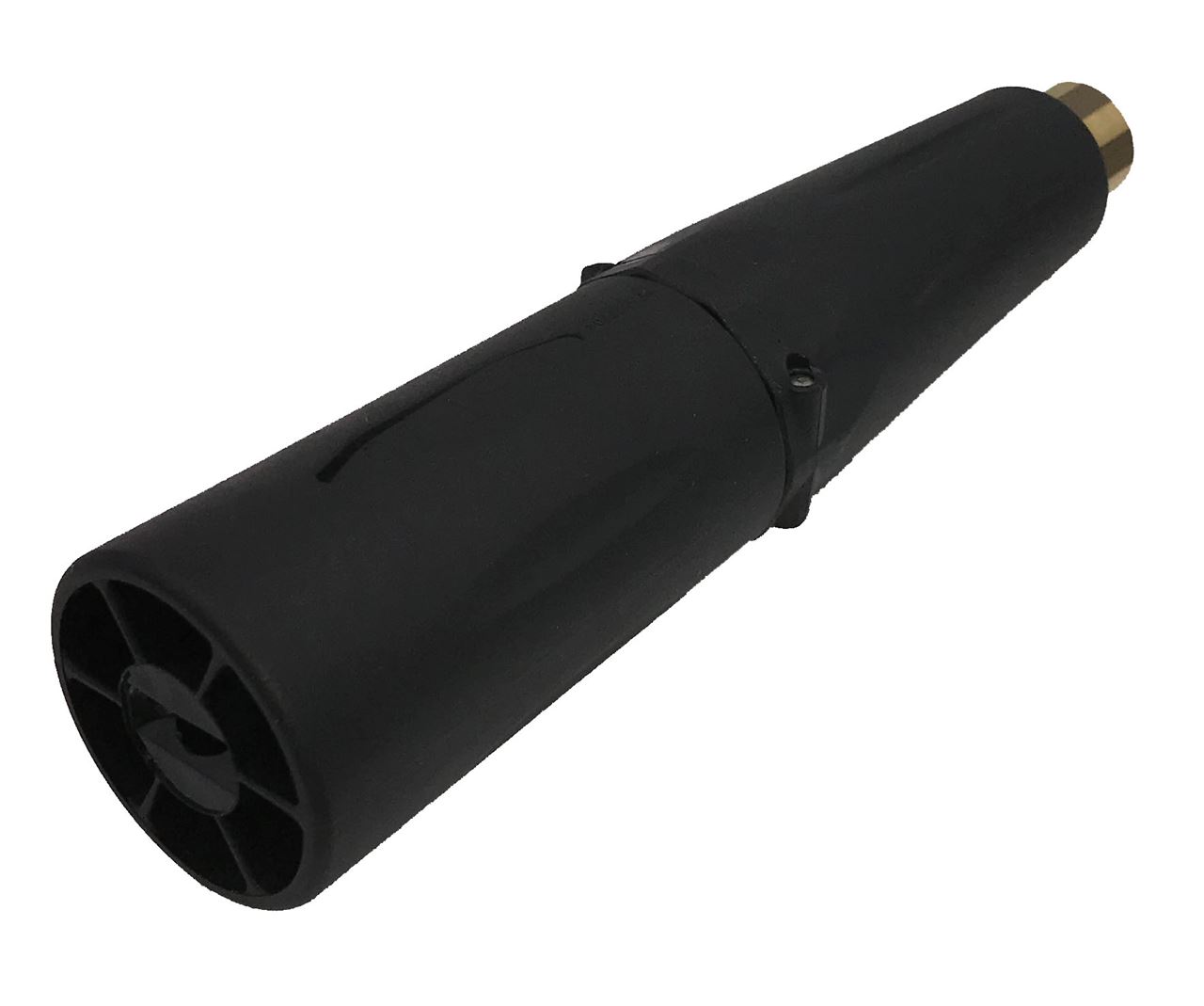

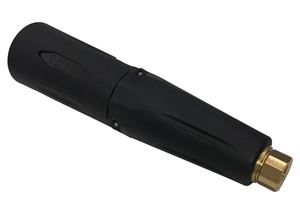

Picture of Suttner ST-75 Foam Nozzle, 4000 PSI, #10.0, 1/4" F

Suttner ST-75 Foam Nozzle, 4000 PSI, #10.0, 1/4" F

SKU: 200075553

Brand: Suttner America

$55.01

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Suttner ST-75 Brass Foam Head 4,000 PSI with #10.0 Air Injector Nozzle and 1/4" F Inlet. The ST-75 produces thick foam for an easy and safe application and to save on chemical usage by reducing splash and drift of chemicals


Features
• By means of the foam head ST-75 different foam applications are possible as the air injector nozzle is easily exchangeable and adaptable
• The flat spray nozzle can be infinitely adapted from the vertical position to the horizontal one
• The maximum flow is dependent on the chosen nozzle size
• By means of the integrated air injector in the foam head the air is sucked in on the face side
• Independent of the length of the lance a constant foam quality is guaranteed
• The spraying result is especially even as a high quality foam nozzle insert is used

ST-75 with ST-160 Chemical Injector on YouTube


Specifications
• Air Injector Nozzle Size: 10.0
• Max Pressure: 4,000 PSI
• Flow Rate: 1 - 6 GPM
• Max Temp: 212° F.
• Inlet: 1/4" Female
• Note: Suttner ST-160, ST-160M or St-164 Chemical or Foam injector required and is not included
• Weight: 0.31 lb



Please use Nozzle Chart to determine proper Spray Nozzle Size

Nozzle Chart



Use Spray Nozzle Size and Foam Nozzle Chart to determine correct Foam Nozzle to use

Foam Nozzle Chart



 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.

Customers who bought this item also bought
Picture of ST-10 Nozzle Protector 1/4" F Grey & Black

ST-10 Nozzle Protector 1/4" F Grey & Black

SKU: 200010530


Suttner ST-10 Nozzle Protector 1/4" F Grey & Black


Features
• 2-Component nozzle protector ST-10
• The ST-10 is the ideal combination made out of hard and soft plastics
• The nozzle protector is suitable for cold and hot water applications in the car wash, agriculture and food industry
• The ST-10 is unimpeachable, protects your nozzles and preserves the surfaces to be cleaned at the same time


Specifications
• Suitable for nozzles 1/4" M NPT
• Material: Plastic / Zinc-plated steel
• Color: Grey / black
• Max PSI: 5,800
• Max Temp: 300° F.
• Inlet:: 1/4" Female NPT
• Outlet: 1/4" Female NPT
• Note: 1/4” MPT Nozzle not included
• Weight: 0.10 lbs

  Price: $6.74
Picture of QD Socket, Brass 3/8 x 3/8 NPT-F 4,000 PSI

QD Socket, Brass 3/8 x 3/8 NPT-F 4,000 PSI

SKU: D10003


General Pump D10003 Quick Disconnect Coupler Socket Brass 3/8” x 3/8" NPT-F 4,000 PSI


Features:
• Quick disconnect design
• Brass
• EPDM O-Ring


Specifications:
• Quick Disconnect Coupler: Socket
• Body Material: Brass
• Socket Size: 3/8"
• Thread: 3/8” NPT-F
• Max Temp: 175°
• Max Operating Pressure: 4,000 PSI
• Replaces QCS2FB
• Weight: 0.20 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"
  Price: $3.62
Picture of QD Plug, Hardened Steel Zinc Plated 3/8 x 3/8 NPT-F 4,000 PSI

QD Plug, Hardened Steel Zinc Plated 3/8 x 3/8 NPT-F 4,000 PSI

SKU: D11008


General Pump D11008 Quick Disconnect Coupler Plug Hardened Steel Zinc Plated 3/8” x 3/8" NPT-F 4,000 PSI


Features:
• Quick disconnect design
• Hardened Steel Zinc Plated


Specifications:
• Quick Disconnect Coupler: Plug
• Body Material: Hardened Steel
• Plug Size: 3/8"
• Thread: 3/8” NPT-F
• Max Temp: 175°
• Max Operating Pressure: 4,000 PSI
• Replaces QCP2FS
• Weight: 0.10 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"
  Price: $0.99
Picture of QD Plug, Hardened Steel Zinc Plated 3/8 x 3/8 NPT-M 4,000 PSI

QD Plug, Hardened Steel Zinc Plated 3/8 x 3/8 NPT-M 4,000 PSI

SKU: D11009


General Pump D11009 Quick Disconnect Coupler Plug Hardened Steel Zinc Plated 3/8” x 3/8" NPT-M 4,000 PSI


Features:
• Quick disconnect design
• Hardened Steel Zinc Plated


Specifications:
• Quick Disconnect Coupler: Plug
• Body Material: Hardened Steel
• Plug Size: 3/8"
• Thread: 3/8” NPT-M
• Max Temp: 175°
• Max Operating Pressure: 4,000 PSI
• Replaces QCP2MS
• Weight: 0.10 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"
  Price: $1.06
