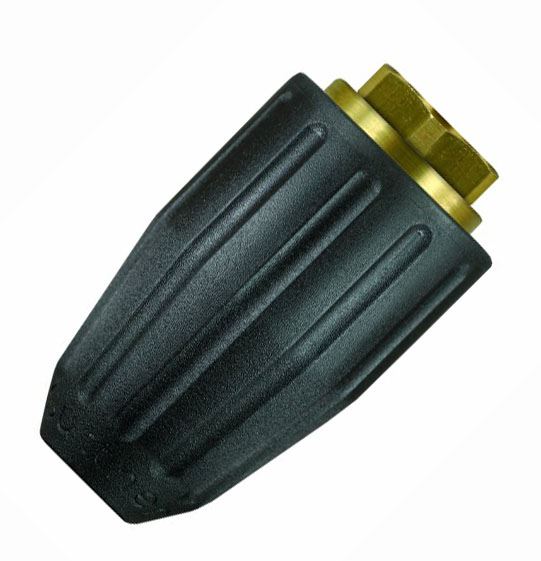

Suttner ST-456 Turbo / Rotating #5.0 Nozzle is rated for up to 5,070 PSI. The increased tearing action of the rotating spray is ideal for hard surface applications, such as concrete graffiti cleaning or caked mud on heavy equipment

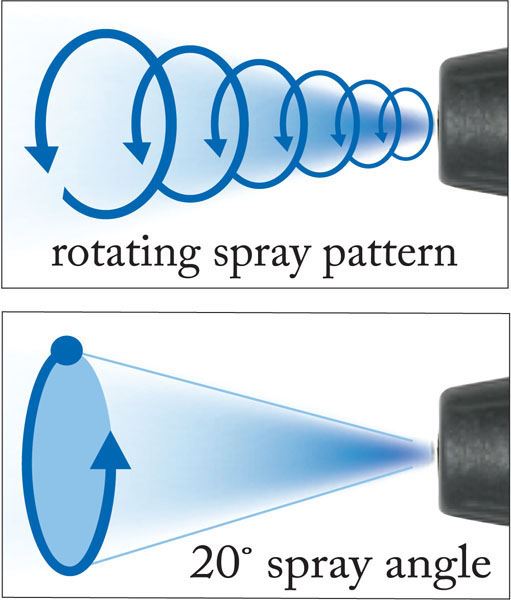

Features• Increases cleaning efficiency as much as 200%• The 0° rotation creates a cleaning and tearing action• Ideal for hard surfaces• Improved materials for longer life
Specifications • Nozzle Size # 5.0 • Max PSI: 5,070• Max Temp.: 212° F• Inlet: 1/4" Female NPT• NOTE: All rotating nozzles should be started pointing downward• Weight: 0.90 lbs
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Featuring: • Forged valve body – excellent strength• Two by-pass ports
Specifications:• Maximum Pressure: 5,650 PSI• Max. Volume: 10.5 GPM• Adjustable pressure• Brass valve body• Max. Fluid Temp.: 194° F.• Inlet Ports (1): 3/8" FNPT• Discharge Ports (1): 3/8” FNPT• Bypass Ports (2): 3/8” FNPT• Replaces AL608 and AL609• Weight: 2.05 lbs
General Pump 3/8" 5,000 PSI Stainless Steel Quick Disconnect Fittings (1 Plug & 1 Socket)
Features: • Quick disconnect design• Body Material: 304 Stainless steel• 1 pc: General Pump 3/8 NPT-F Quick disconnect coupler socket with EPDM O-ring• 1 pc: General Pump 3/8 NPT-F Quick disconnect coupler plug• Max Temp: 175°• Max Operating Pressure: 5,000 PSI • Works with standard quick connects• Weight: 0.30 lb
ProPulse, a Schieffer Company, backed by more than 90 years of innovation
Features: • Assembled in USA with high quality components • Suitable for hot water commercial pressure cleaning applications• Rubber construction throughout• Reinforcement: Two layers of high tensile braided steel – R2 Rating• Cover: Wrapped finish with embossed lay line• Burst (Minimum): 3:1 working pressure • Impulse Life: 200,000+
Specifications: • Hose Inner Diameter: 3/8" ID• Length: 50’• Working (Maximum): Up to 6,000 PSI• Burst (Minimum): 18,000 PSI• Color: Black• Maximum Temperature: 250° F.• Ends: 3/8" MPT (1 solid & 1 swivel)• Permanent heavy duty red bend restrictors on both ends• Weight 15.5 lbs
General Pump 15° x #3.0 S-Style Spray Nozzle 1/8” NPT-M
Features• 5,000 PSI operating pressure• Made in the USA• General Pump High Pressure Spray Tips feature a two piece design• Inserts are through hardened and pressed into a 303 stainless steel rust-resistant body for improved durability• The contour control nozzle chamber eliminates the need for flow straighteners • Resistant to most chemical• Laser marked for clarity and durability
Specifications• Tip Angle: 15°• Nozzle Size: 3.0• Operating Pressure: 5,000 PSI• Connection: 1/8” NPT-M• Weight: 0.05 oz
