Picture of Suttner ST-49.3 Mini Rotating Sewer Nozzle 1/8", # 5.0, 2 Side 2 Back 7,300 PSI

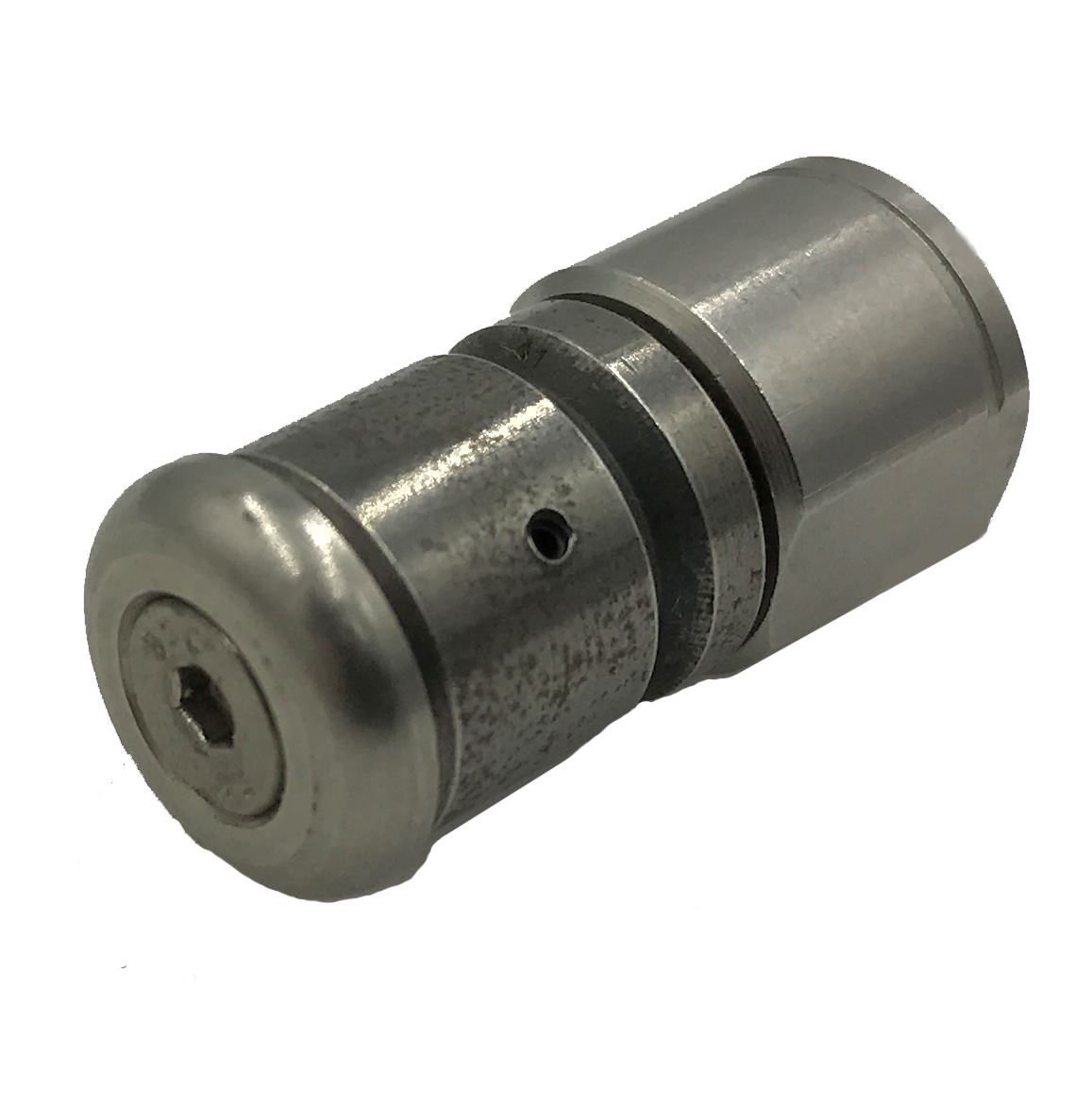

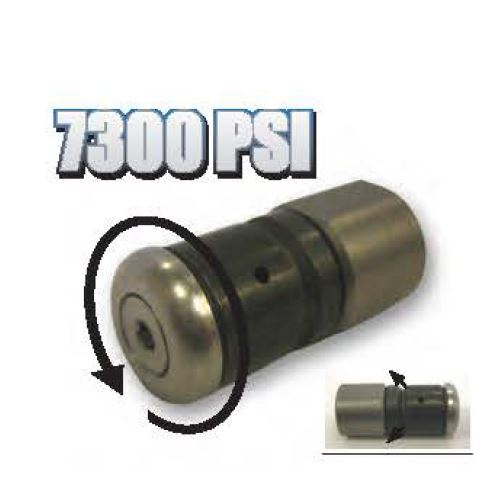

Suttner ST-49.3 Mini Rotating Sewer Nozzle 1/8", # 5.0, 2 Side 2 Back 7,300 PSI

SKU: 200049950

Brand: Suttner America

$40.19

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


1/8” Suttner ST-49.3 Mini Stainless Steel Rotating Sewer Jetter Nozzle, # 5.0. Limited (or reduced) spinning speed for higher cleaning performance. Two radial jets hit the pipe wall directly with great impact, resulting in excellent cleaning capacity. Two strategically placed retracting jets provide cleaning energy as well as the thrust in one function, resulting in a low water consumption, while maximizing cleaning and flushing away the loosened residues. Housing and Rotor are hardened stainless steel parts with grinded contact surfaces for extended lifetime


Features
• High Quality, German engineered components
• 2 Rotating radial jets (90°) to the pipe wall for best cleaning results
• 2 Rotating rear jets (45°) for forward thrust and flushing away of the waste material
• Physically small for cornering ability
• Rated at 7300 PSI and 248° F


Specifications
• Inlet: 1/8” Female
• Nozzle Size: # 5.0
• 2 Side ports, 2 Backward, 0 Forward
• Material: Stainless steel
• Maximum Pressure: 7,300 PSI
• Max. Fluid Temperature: 248º F
• Outside Diameter (O.D.): 0.47”
• Length: 1.0”
• Weight: .05 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"


Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart
