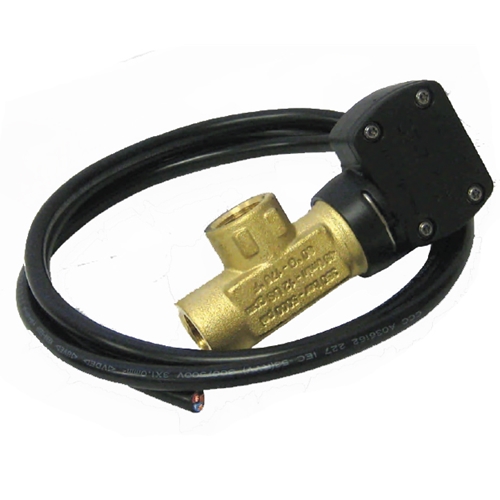

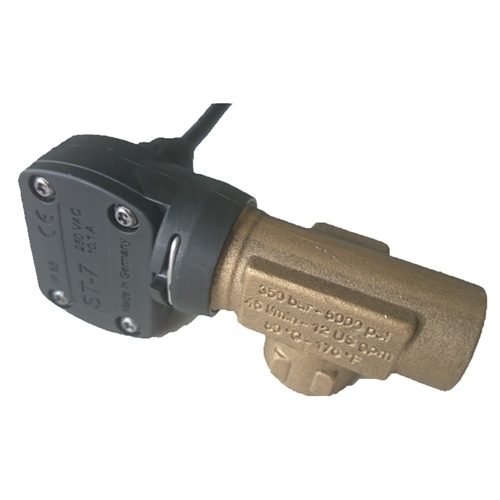

Picture of Suttner ST-7 Flow Switch w/Micro Switch 0.3 GPM Switch Point 5,000 PSI

Suttner ST-7 Flow Switch w/Micro Switch 0.3 GPM Switch Point 5,000 PSI

SKU: 200007510

Brand: Suttner America

$51.07

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Suttner ST-7 W/ Micro Switch Any Position Flow Switch with 0.3 GPM Switch Point Rated to 5,000 PSI and 12 GPM. The ST-7 is a newly developed version of the flow switch having a completely new operating principle. In this new development a robust and industrial micro switch is inserted instead of the usually supersensitive REED-contacts with low switching capacity. This micro switch makes it possible to realize a significantly higher electrical output though having a longer working life. The electrical and water-hydraulic components of the flow switch are completely separated.


Features:
• Can be mounted horizontal or vertical
• Micro-switch replaces reed switch for better reliability and water protection
• Easy to install
• Resistant against shock and vibration
• IP 65 rated-water and dust proof
• Can be wired normally open or normally closed


Specifications:
• Switch Point: 0.3 GPM
• Max. Pressure: 5,000 PS
• Max. Flow Rate: 12 GPM
• Max Voltage: 250 V
• Max Current: 10.1 Amps
• Max: Fluid Temperature: 176° F
• Cable Length: 47.0”
• Inlet & Outlet: 3/8” FNPT
• Note: 0.3 GPM switch has 1.5 stamped on opposite side on outlet port
• Weight: 0.80 lbs

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.

Customers who bought this item also bought
Picture of Thermal Relief Valve 145º F 1/4" MPT

Thermal Relief Valve 145º F 1/4" MPT

SKU: 100556

General Pump PTP™ Series Pressure Washer Thermal Relief Valve with 1/4" Male Inlet. Protects the pump from damaging heat build-up while it is in bypass mode. The thermal relief valve, sensing a rise in temperature, opens and discharges a small amount of heated fluid. This allows cooler water to enter the system and cool the pump. When the gun is discharged the cooler water will cause the valve to close immediately.


Specifications:
• Compact Design - Shorter overall length
• Trip Temperature: 145º F.
• Brass body
• Inlet thread size: 1/4" MPT
• 1/4” Hose barb
• Mounts easily in the pump manifold,inlet water supply or bypass loop plumbing
• Weight: 1.5 oz

  Price: $5.59
Picture of 4,000 PSI 3/8" x 50' Black Rubber Hose w/ QC Couplers

4,000 PSI 3/8" x 50' Black Rubber Hose w/ QC Couplers

SKU: 989400075


Propulse Commercial Clean 4,000 PSI 3/8" x 50' Black Rubber Hose with Quick-Connect Couplers. Rubber construction throughout, with a single layer of steel wire braid, the hose of choice for manufacturers of commercial duty pressure washers


ProPulse, a Schieffer Company, backed by more than 90 years of innovation


Features:
• Assembled in USA with high quality components
• Suitable for commercial pressure cleaning applications
• Rubber construction throughout
• Reinforcement: One layer of high tensile braided steel – R1 Rating
• Cover: Wrapped finish with embossed lay line
• Burst (Minimum): 3:1 working pressure
• Impulse Life: 200,000+

Specifications:
• Hose Inner Diameter: 3/8" ID
• Length: 50’
• Working (Maximum): Up to 4,000 PSI
• Burst (Minimum): 12,000 PSI
• Color: Black
• Maximum Temperature: 250° F.
• Ends: 3/8" Quick Connect couplers ( 1 steel plug & 1 brass socket)
• Permanent heavy duty black bend restrictors on both ends
• Weight 9.6 lbs



  Price: $56.32
Picture of QD Plug, SS 3/8 x 3/8 NPT-M 6,000 PSI

QD Plug, SS 3/8 x 3/8 NPT-M 6,000 PSI

SKU: D10079


General Pump D10079 Quick Disconnect Coupler Plug Stainless Steel 3/8” x 3/8" NPT-M 6,000 PSI


Features:
• Quick disconnect design
• 304 Stainless steel


Specifications:
• Quick Disconnect Coupler: Plug
• Body Material: 304 Stainless steel
• Plug Size: 3/8"
• Thread: 3/8” NPT-M
• Max Temp: 175°
• Max Operating Pressure: 6,000 PSI
• Replaces QCP2MSS
• Weight: 0.11 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"
  Price: $2.65
Picture of AR Trigger Gun 4,000 PSI 7.0 GPM

AR Trigger Gun 4,000 PSI 7.0 GPM

SKU: 5101

AR 5101 Trigger Gun. This spray gun offers consistent quality and performance


Features:
• Automatic trigger shutoff and trigger lock


Specifications:
• Max Pressure: 4,000 PSI
• Max Flow: 7.0 GPM
• Max Temp: 300° F.
• Inlet: 3/8" Female NPT
• Outlet: 1/4" Female NPT
• Weight: 18 oz

  Price: $21.33
