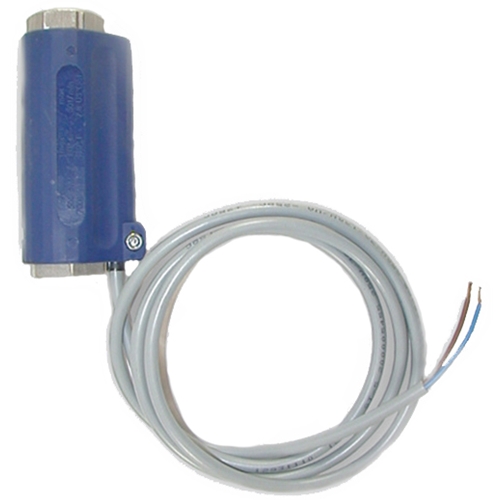

Picture of Suttner ST-505 SS Vertical Mount Flow Switch 8,700 PSI

Suttner ST-505 SS Vertical Mount Flow Switch 8,700 PSI

SKU: 200505706

Brand: Suttner America

$134.28

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Suttner ST-505 Stainless Steel Vertical Mount Flow Switch Rated to 8,700 PSI. Vertical mounting position and free floating brass magnet configuration


Features:
• Vertical mounting ONLY
• Mounts further downstream in pumping system than traditional vacuum switches, thereby minimizing potential leak points that can cause vacuum switches to close
• Easy reed switch replacement


Specifications:
• Max. Pressure: 8,700 PS
• Min. Pressure: 75 PSI
• Max. Flow Rate: 8 GPM
• Min. Flow Rate: 1 GPM
• Max Voltage: 250 V
• Max Current: 3 Amps
• Max: Fluid Temperature: 176° F
• Cable Length: 47.0”
• Inlet & Outlet: 3/8” FNPT
• Housing: Stainless Steel
• Color: Blue
• 3/8” Bonded seal #78888389 is recommended to seal inlet and outlet threads
• Weight: 0.90 lbs

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.

Customers who bought this item also bought
Picture of Suttner ST-002 48" Stainless Steel Molded Grip Lance 7,300 PSI 1/4"

Suttner ST-002 48" Stainless Steel Molded Grip Lance 7,300 PSI 1/4"

SKU: 070012002

Suttner St-002 48” Stainless Steel 7,300 PSI Lance with Molded Grip. Stainless steel components create a durable long lasting lance, especially suitable when using alkaline


Features:
• High Quality, German engineered components
• Comfort technology designed molded grip conforms to the curvature of the hand, allowing to comfortably change positions
• Linear aeration provides continuous air flow between hand and exclusive Suttner "star-shaped" grip
• Grip is directly molded on to lance providing protection and strength
• Favorite molded grip lance design in the industry
• Threads are rolled on providing consistent sealing and four times the strength than cut threads


Specifications:
• Length: 48"
• Pipe Material: Stainless steel
• Grip: 19.25" Molded "star-shaped"
• Inlet: 1/4” MNPT
• Outlet: 1/4” MNPT
• Maximum Pressure: 7,300 PSI
• Max. Temp.: 300° F
• Weight: 1.88 lbs.

  Price: $97.33
Picture of Suttner ST-2750 Relax-Action Trigger Gun 7,300 PSI (Tungsten Carbide Ball)

Suttner ST-2750 Relax-Action Trigger Gun 7,300 PSI (Tungsten Carbide Ball)

SKU: 202750510

Suttner ST-2750 Relax-Action Stainless Steel Spray Gun with Tungsten Carbide Ball 7,300 PSI 8 GPM. New patented valve kit and tungsten carbide ball with special valve seat. Economical 7,300 PSI spray gun with relax action trigger


Features
• High Quality, German engineered components
• The Relax-Action™, German Engineered Technology reduces trigger pulling force by 40% and holding force up to 90% compared to usual competitors spray gun
• Relax-Action™ is designed for operators and applications with longer periods of cleaning time
• Stainless Steel Housing
• Tungsten carbide ball with special valve seat


Specifications
• Max Pressure: 7,300 PSI
• Max Flow: 8.0 GPM
• Max Temp: 300° F.
• Inlet: 3/8" Female NPT
• Outlet: 1/4" Female NPT
• Weight: 1.32 lb

  Price: $183.44
