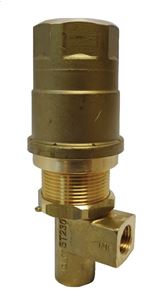

General Pump 100534 6,000 PSI Safety Relief Valve 3/8” MPT-N. This safety relief valve is a manually adjustable pressure-operated device which, according to its setting releases the excess of water when the pressure inside the pump/system exceeds the adjusted value, thus reducing the pressure. The normal working conditions can be restored by turning off and then restarting the system

Features:
• High pressure safety valve: 2,500 – 6,000 PSI relief pressure
• One model fits all pressures - no springs to change
• Less “whistling” and chatter than competing brands
• Highly accurate over full range of pressures
• Fits any brand of pump
• Designed and made in the USA

Specifications:
• Adjustable Range: 2,500 - 6,000 PSI
• Max Volume: 6 GPM
• Discharge: End
• Max Temperature: 32 - 150° F
• Inlet: 3/8" NPT-M
• Dimensions: 2.6” x .875” Hex
• Weight: 0.325 lbs

PA PR5 / General Pump YPRESSWITCH521 5,000 PSI Pressure Switch with 220 PSI (Blue) activation and 1/4 Bsp M brass inlet. Electro-mechanical device, which, upon reaching a pre-set pressure (220 PSI) , opens or closes an electrical control contact

Specifications
• Activation (Blue) PSI: 220
• Max. Voltage: 250
• Permissible Pressure: 5,000 PSI
• Rated Temp: 165° F
• Max. Curr. Strength: 6 (A) – resistive load - 2 (A) – inductive load
• Electrical insulation: 55 IP
• Connection Material: Brass
• Cable Length: 39.4" (1000 mm)
• Electric Wire: 3 x 0.75 mm2
• Inlet: 1/4 Bsp M
• Weight: 4.83 oz.

General TMT Flow Switch. Tri-magnet technology in-line flow switch

Features
• Micro-switch technology eliminates reed switch
• Activates with 1.25 GPM flow
• Stainless Steel shuttle
• Minimal pressure drop up to 12 GPM flow
• Can be mounted in any position

Specifications
• Maximum Operating Pressure: 5,000 PSI
• Minimum Flow Required for Activation: 1.25 GPM
• Maximum Operating Flow: 12.0 GPM
• Operating Temperature Range: 40 - 180 ºF
• Electrical Lead Length: 48” - 18AWG
• Max Switching Voltage: 250 VAC
• Max Switching Current: 5 AMPS
• Inlet: 3/8” x 18 NPT-F
• Outlet: 3/8” x 18 NPT-F
• Replaces GP # 100934
• Materials: Brass, Stainless Steel, Plastic, Nickel-plated Neodymium
• Weight: 1.0 Lb

General Flow Switch With Pilot Feature. The General Pump flow switch is designed to operate in response to a low volume, low pressure flow and still allow for a high pump output flow.

Features
• The system will provide reliable switching with as little as .75 GPM flow and 18 PSI from the city water supply
• will also allow pump output flow up to 18.7 GPM @ 4,000 PSI with negligible pressure drop through the valve
• General Pump flow switches provide durable, reliable on/off switching for systems that require start/stop capability
• Mount in vertical position

Specifications
• Maximum Pressure: 4,000 PSI
• Maximum Flow: 18.7 GPM
• Minimum Volume: 0.75 GPM
• Minimum Pressure: 18 PSI
• Switch Contact Ratings @ 24 Volts DC: 75 Watts, 3A
• Switch Contact Ratings @ 120 Volts AC: 100 Watts, 8A
• Maximum Temperature: 190° F
• Inlet: 3/8” NPT-M
• Outlet: 3/8” NPT-F
• Material: Brass, Stainless Steel, Buna-N
• Dimensions: 4.25” x 4.5” x 1.25” with 8 foot lead wire
• Weight: 2.5 Lb
