Kuriyama Alfagomma® Argus QX 1/4" Female Screw Coupling x 1/4" MNPT 10,000 PSI ISO 14540. Thanks to the exclusive ALFAGOMMA TOP COAT – Galvanic Coating – proprietary technology, the complete range of ARGUS Quick release couplings can boast an extraordinary wear and corrosion resistance, so as to guarantee a longer lifespan to your system

Features:
• ARGUS QX high pressure couplings can be used for connecting and disconnecting hydraulic lines
• Their robust construction and tested components make them ideally suited for high and intermittent pressure loads
• During the coupling action, valves that release and/or block the flow are automatically activated
• The QX quick release coupling, formed by coupling plug and coupling socket, is coupled by a screwing action with the hand nut of the plug component

Specifications:
• Product Type: Female Coupler with Male Thread
• Dash: 04
• Inside Diameter: 1/4”
• Working Pressure: 10,150 PSI
• Burst Pressure: 40,650 PSI
• Norm: ISO 14540
• Thread: NPTF
• Temperature: -22º F - 257º F
• End Type: Female
• Second End Type: 1/4-18 MNPT
• Weight: 0.30 lb

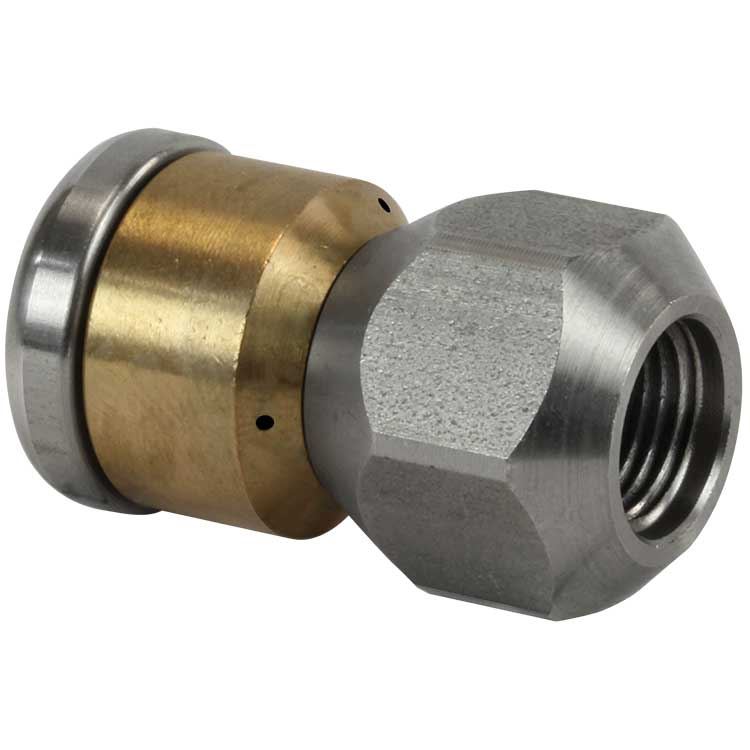

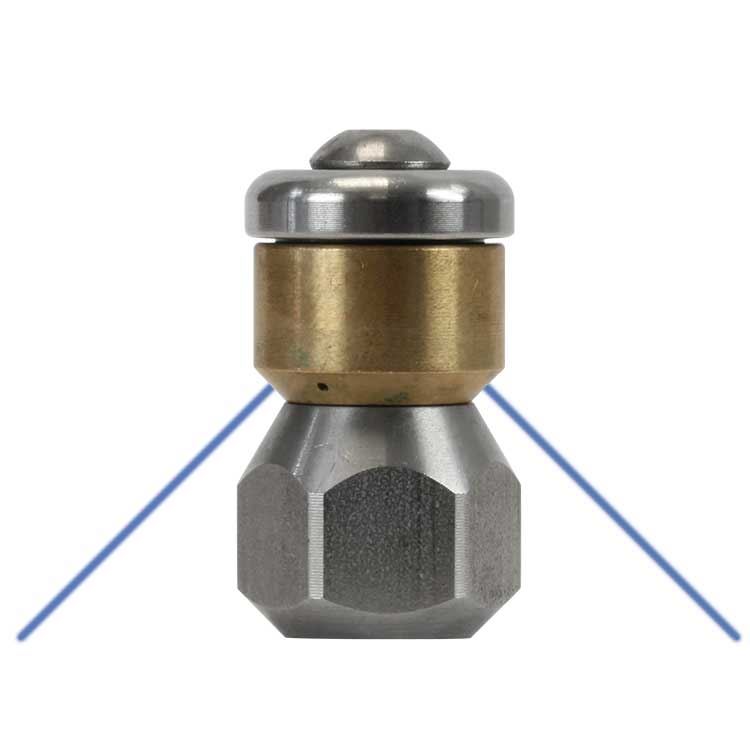

1/8” Suttner ST-49 Stainless Steel Rotating Sewer Jetter Nozzle, # 8.0. Does not have a forward spraying orifice, but has 3 orifices angled backwards and to the side. Slides easily into drain pipes and sewer lines flushing debris or clearing frozen pipes while attached to sewer hose. Better for removing build up from the walls of the pipe or tube.

Features
• High Quality, German engineered components
• 3 Backward ports drive the nozzle forward and flush debris
• Rotating style adds extra agitation and surface cleaning
• Corrosion resistant stainless steel and brass construction

Specifications
• Inlet: 1/8” Female
• Nozzle Size: # 8.0
• Material: Stainless steel & brass
• Maximum Pressure: 4,000 PSI
• Outside Diameter (O.D.): .745”
• Weight: .08 lb

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

ProPulse, a Schieffer Company, backed by more than 90 years of innovation

MADE IN USA
Every foot of Propulse Jetter Clean is manufactured at our ISO9001:2008 certified factory in the USA using 100% domestically sourced materials

Features:
• Suitable for consumer and commercial applications
• Reinforcement: One layer of polyester braid
• Cover: Thermoplastic smooth finish with printed lay line
• Burst (Minimum): 2.5:1 working pressure
• Easily slides into sewer lines and pipes
• Glossy black abrasion resistant cover

Specifications:
• Inner Diameter: 1/8” ID
• Length: 50’
• Working (Maximum) Pressure: 4,800 PSI
• Burst (Minimum): 12,000 PSI
• Optimal Recommended Flow Rate: Up to 1.5 GPM
• Max. Fluid Temperature: 160º F.
• Inlet: 1/8” MPT with 1/4” MPT Bushing (Solid)
• Outlet: 1/8” MPT (Solid)
• Weight 1.5 lbs

General Pump D10077 Quick Disconnect Coupler Plug Stainless Steel 1/4” x 1/4" NPT-M 6,000 PSI

Features:
• Quick disconnect design
• 304 Stainless steel

Specifications:
• Quick Disconnect Coupler: Plug
• Body Material: 304 Stainless steel
• Plug Size: 1/4"
• Thread: 1/4” NPT-M
• Max Temp: 175°
• Max Operating Pressure: 6,000 PSI
• Replaces QCP1MSS
• Weight: 0.06 lb
