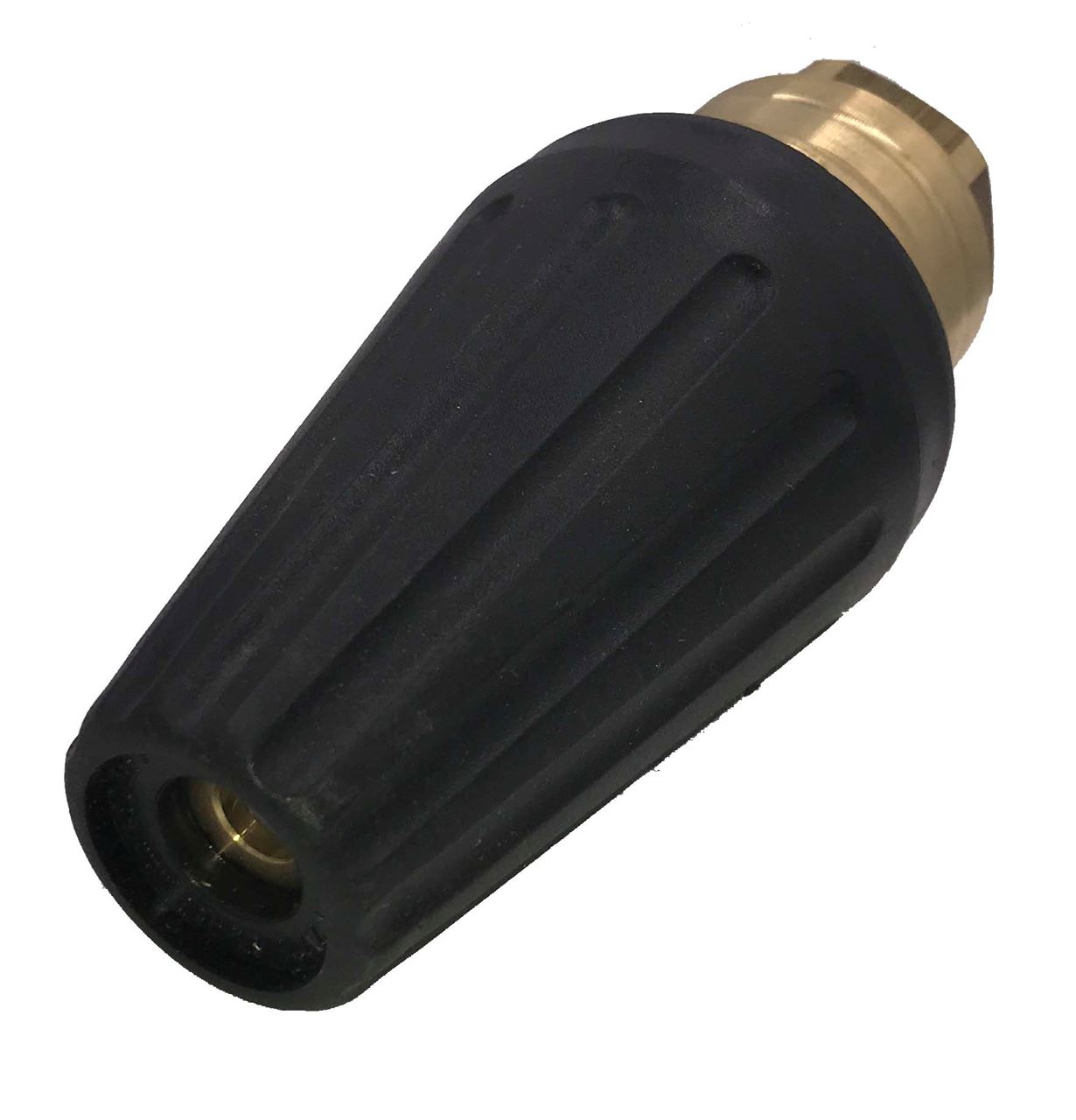

Suttner ST-457 Turbo / Rotating / Hydro Excavation #9.0 Nozzle with 1/2” Inlet is rated for up to 6,000 PSI. The increased tearing action of the rotating spray is ideal for Hydro-Excavation and hard surface applications
Features• Increases cleaning efficiency as much as 200%• The 0° rotation creates a cleaning and tearing action• Ideal for hard surfaces• Improved materials for longer life
Specifications • Nozzle Size # 9.0 • Max PSI: 6,000• Max Temp.: 212° F• Inlet: 1/2" Female NPT• NOTE: All rotating nozzles should be started pointing downward• Weight: 1.48 lbs
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
General Pump D10090 Quick Disconnect Coupler Socket Stainless Steel 1/2” x 1/2" NPT-F 5,000 PSI
Features: • Quick disconnect design• 304 Stainless steel• EPDM O-Ring
Specifications: • Quick Disconnect Coupler: Socket• Body Material: 304 Stainless steel• Socket Size: 1/2"• Thread: 1/2” NPT-F• Max Temp: 175°• Max Operating Pressure: 5,000 PSI• Replaces QCS3FSS• Weight: 0.35 lb
General Pump D10093 Quick Disconnect Coupler Plug Stainless Steel 1/2” x 1/2" NPT-M 6,000 PSI
Features: • Quick disconnect design• 304 Stainless steel
Specifications: • Quick Disconnect Coupler: Plug• Body Material: 304 Stainless steel• Plug Size: 1/2"• Thread: 1/2” NPT-M• Max Temp: 175°• Max Operating Pressure: 6,000 PSI• Replaces QCP3MSS• Weight: 0.15 lb
MTM Hydro 20.0032 3/8" Premium Plated Brass Ball Valve 3,000 PSI. MTM Hydro's High Pressure Plated Brass Ball valves are found in a variety of areas in the pressure washing system
Features• Most commonly, this round-edged, light weight, heavy duty Italian ball valve is found at the base of the spray gun and used as a temporary shutoff while the pressure washer is on • By shutting the water off, the user can then change over to another gun set up without turning the entire system off • This specific series of Italian Ball Valve is a top 5 product of ours every month of the year which goes to show you that tens of thousands of people per year cannot be wrong about their choice of quality• When installing NPT fittings in these BSP threads, be sure to wrap threads 6-7 times with Teflon tape or 2-3 drops of Loctite
Injector Specifications:• Max Pressure: 3,000 PSI• Max Temperature: 176° F• Inlet: 3/8" Female BSP• Outlet: 3/8" Female BSP • Body Material: Plated brass• Weight: 1.05 lb
Features:• Light weight• Highly flexible• True non-marking, abrasion and chemical resistant• Easy to clean• Matte finish, feels like rubber
MADE IN USAEvery foot of ProPulse™ CLEANSTREAM™ is designed, engineered and manufactured in the USA, assembled using imported and/or domestic end fittings
Hose Construction• Inner Tube: Water and chemical resistant polyester and polyurethane• Reinforcement: One layer of high tensile steel braid• Cover: Matte finish TPU provides a lower coefficient of friction• Laminated: Bonded construction for long life
Specifications:• Hose: 3/8” ID x100’ Long• Working Pressure: 4,000 PSI• Burst Pressure: 12,000 PSI• Color: Grey• Max. Water Temperature: 140° F.• Ends: 3/8" Male NPT (1 solid & 1 swivel)• Black bend restrictors on both ends • Weight 17.25 lbs
