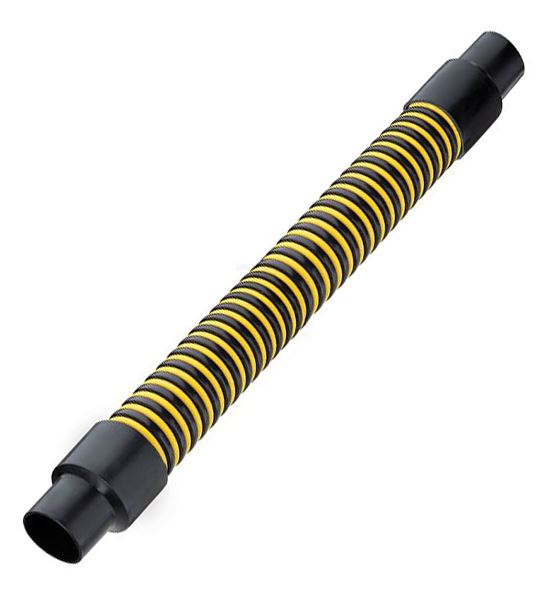

Kuriyama King Bee™ KBEE3X3 Polyethylene 3" x 3' Sewer Jetting Hose Guard. Designed for the protection of high pressure sewer jetting hoses
Features: • Easy Slide Interior – low coefficient of friction polyethylene tube allows for sewer jetting hoses to slide through easily, protecting them from wear• “Cold-Flex” Materials – Remains flexible in sub-zero temperatures• Crush Resistant – Will spring back to original shape after being crushed, will not kink!• Easy Slide Helix – Exposed ribs protect tube from cover wear, and allow hose to slide easily over rough surfaces. Easy-to-handle• Leak Proof Cuffs – Overmolded cuffs will not separate from the hose guard. Each cuff and unit is 100% factory tested• Service Temperature: -40°F to 150°F Construction:• Flexible polyethylene (LDPE) tube with polyethylene (LDPE) ribs and cuffed ends Specifications:• Inside Diameter ID: 3” • Outside Diameter OD: 4.06” • Length: 3’• Working Pressure 68°F: 7 PSI• Vacuum Rating 68°F: 29 HG• Min. Bend Radius 68°F: 6.5”• Weight: 4.80 lbs.
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
ProPulse, a Schieffer Company, backed by more than 90 years of innovation
MADE IN USAEvery foot of Propulse Jetter Clean is manufactured at our ISO9001:2008 certified factory in the USA using 100% domestically sourced materials
Features:• Suitable for consumer and commercial applications• Reinforcement: One layer of polyester braid• Cover: Thermoplastic smooth finish with printed lay line• Burst (Minimum): 2.5:1 working pressure• Easily slides into sewer lines and pipes• Glossy black abrasion resistant cover
Specifications: • Inner Diameter: 1/8” ID• Length: 50’• Working (Maximum) Pressure: 4,800 PSI• Burst (Minimum): 12,000 PSI • Optimal Recommended Flow Rate: Up to 1.5 GPM• Max. Fluid Temperature: 160º F.• Inlet: 1/8” MPT with 1/4” MPT Bushing (Solid)• Outlet: 1/8” MPT (Solid)• Weight 1.5 lbs
Specifications: • Inner Diameter: 1/4” ID• Length: 50’• Working (Maximum) Pressure: 4,400 PSI• Burst (Minimum): 11,000 PSI • Max. Fluid Temperature: 160º F.• Inlet: 1/4” MPT (Swivel)• Outlet: 1/4” MPT (Solid)• Weight 3.4 lbs
Features• Side jet pushes hose thru bends and corners• 2 Backward jets drive nozzle forward and flushes and removes debris from sides of line• Corrosion resistant stainless steel construction
Specifications • Inlet: 1/8” FPT• Nozzle Size: # 4.5• Material: Stainless steel• Maximum Pressure: 4,000 PSI• Weight: 0.3 oz.
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
Specifications: • Inner Diameter: 1/4” ID• Length: 100’• Working (Maximum) Pressure: 4,400 PSI• Burst (Minimum): 11,000 PSI • Max. Fluid Temperature: 160º F.• Inlet: 1/4” MPT (Swivel)• Outlet: 1/4” MPT (Solid)• Weight 6.5 lbs
