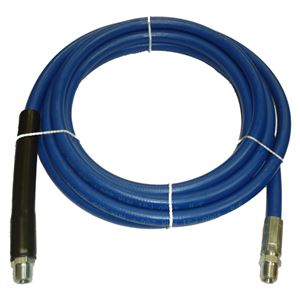

ProPulse™ Blue Smooth Rubber “Mark-Less” 3/8" x 18' Boom Hose Assembly 4,000 PSI with 3/8" MPT Fittings. Perfect for self service car wash bays. Smooth blue and less marking cover with a seamless heat and chemical resistant tube
Features: • Assembled in USA with high quality components • Suitable for self service car wash applications• Rubber construction throughout• Reinforcement: One layer of high tensile braided steel – R1 Rating• Cover: Smooth, “Mark-Less” with printed lay line• Burst (Minimum): 3:1 working pressure • Impulse Life: 200,000+
Specifications: • Hose Inner Diameter: 3/8" ID• Length: 18’• Working (Maximum): Up to 4,000 PSI• Burst (Minimum): 12,000 PSI• Color: Blue• Maximum Temperature: 250° F.• Ends: 3/8" MPT (solid)• Black bend restrictor on one end• Weight 3.60 lbs
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
General Pump #2.1mm Fixed Chemical Injector, High Draw, Chemical Draw 20% with 3/8" NPT-M. This 20% fixed flow chemical injector is connected to the downstream side of the pressure pump and is activated when using a low pressure soap nozzle. Choose size based on flow rate of your pressure washer
Features• 20% injection draw rate• Made in the USA• A cost effective solution to your chemical application needs
Injector Specifications:• Size: # 2.1 mm (3.0 to 5.0 GPM)• Max Operating Pressure: 4,500 PSI• Max Temperature: 195° F• Inlet: 3/8” NPT-M• Outlet: 3/8” NPT-M • Chemical Port: 1/4” Hose Barb• Materials: Brass, Stainless Steel, Viton • Note: If between sizes, choose the smaller injector size• Weight: 0.30 lbs
ProPulse, a Schieffer Company, backed by more than 90 years of innovation
Features: • Assembled in USA with high quality components • Suitable for commercial pressure cleaning applications • Rubber construction throughout• Reinforcement: One layer of high tensile braided steel – R1 Rating• Cover: Smooth, “Mark-Less” with printed lay line• Burst (Minimum): 3:1 working pressure • Impulse Life: 200,000+
Specifications: • Hose Inner Diameter: 3/8" ID• Length: 25’• Working (Maximum): Up to 4,000 PSI• Burst (Minimum): 12,000 PSI• Color: Blue• Maximum Temperature: 250° F.• Ends: 3/8" MPT (1 solid & 1 swivel) )• Permanent heavy duty black bend restrictors on both ends.• Weight 5.5 lbs
Features:• Suitable for self service car wash applications• Light weight• Highly flexible• True non-marking, abrasion and chemical resistant• Easy to clean• Matte finish, feels like rubber
MADE IN USAEvery foot of ProPulse™ CLEANSTREAM™ is designed, engineered and manufactured in the USA, assembled using imported and/or domestic end fittings
Hose Construction• Inner Tube: Water and chemical resistant polyester and polyurethane• Reinforcement: One layer of high tensile steel braid• Cover: Matte finish TPU provides a lower coefficient of friction• Laminated: Bonded construction for long life
Specifications:• Hose Inner Diameter: 3/8" ID• Length: 18’• Working Pressure: 4,000 PSI• Burst Pressure: 12,000 PSI• Color: Blue• Max. Water Temperature: 140° F.• Ends: 3/8" Male NPT (Solid)• Black bend restrictor on one end • Weight 3.40 lbs
Features: • Assembled in USA with high quality components • Suitable for commercial pressure cleaning applications • Rubber construction throughout• Reinforcement: One layer of high tensile braided steel – R1 Rating• Cover: Wrapped finish, “Mark-Less” with embossed lay line• Burst (Minimum): 3:1 working pressure • Impulse Life: 200,000+
Specifications: • Hose Inner Diameter: 3/8" ID• Length: 50’• Working (Maximum): Up to 4,000 PSI• Burst (Minimum): 12,000 PSI• Color: Blue• Maximum Temperature: 250° F.• Ends: 3/8" MPT (1 solid & 1 swivel)• Permanent heavy duty black bend restrictors on both ends• Weight 9.6 lbs
