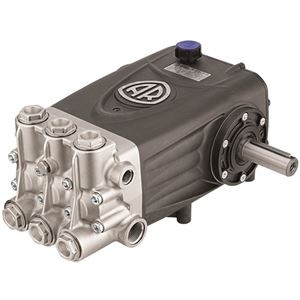

Annovi Reverberi / AR North America RTX70 Triplex Plunger Pump. The RTX70 delivers up to 17.0 GPM and 2,900 PSI. Spinning at 1,450 RPM, this 30mm sold shafted pump features a nickel plated brass head. Inlet thread is 1” F and discharge thread is 1/2”F.

Features:
• High-strength, non-porous pressed nickel-plated brass head for guaranteed safety and durability
• One-piece extra thick ceramic pistons for exceptional strength
• Stainless steel ball-type intake and delivery valves with high fluido-dynamic efficiency
• Dual sealing system with anti-extrusion ring support and lubrication with low pressure recirculation chambers
• Pump casing in high-strength aluminum alloy with oversized mounts
• Camshaft in forged, treated steel
• Oversized two-piece connecting-rods in low-friction aluminum alloy
• “Premium” quality tapered roller bearings for long lifetime
• Splash lubrication

Specifications:
• Max. Volume: 17.0 GPM
• Max. Discharge Pressure: 2,900 PSI
• Max. Pump Speed: 1,450 RPM
• Shaft Diameter: 30mm Solid
• Max. Horsepower Requirements: 33.8 EBHP
• Max. Fluid Temp.: 140° F.
• Inlet Tread: 1" Female
• Outlet Thread: 1/2" Female
• Oil capacity: 76 oz
• Weight: 72.0 lb.
