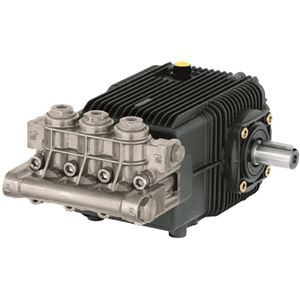

Annovi Reverberi / AR North America SHPA4G70HN Triplex Plunger Pump. The SHPA Series delivers up to7,250 PSI. Spinning at 1,750 RPM, this 24mm sold shafted pump series features a new high efficiency manifold design (patent pending). Inlet thread is 1/2” F, and discharge thread is 3/8”F.

Features:
• High efficiency nickel plated forged brass head & valve caps
• Oversized “SKF” bearings are tapered for maximum life and load disbursement
• Plungers are a special aluminum oxide blend, solid ceramic for long life

Specifications:
• Max. Volume: 4.0 GPM
• Max. Discharge Pressure: 7,250 PSI
• Max. Pump Speed: 1,750 RPM
• Shaft Diameter: 24mm Solid
• Max. Horsepower Requirements: 20.0 EBHP
• Max. Fluid Temp.: 140° F.
• Inlet Ports (2): 1/2" Female
• Outlet Ports (2): 3/8" Female
• Oil capacity: 32 oz
• Weight: 29.0 lb.
